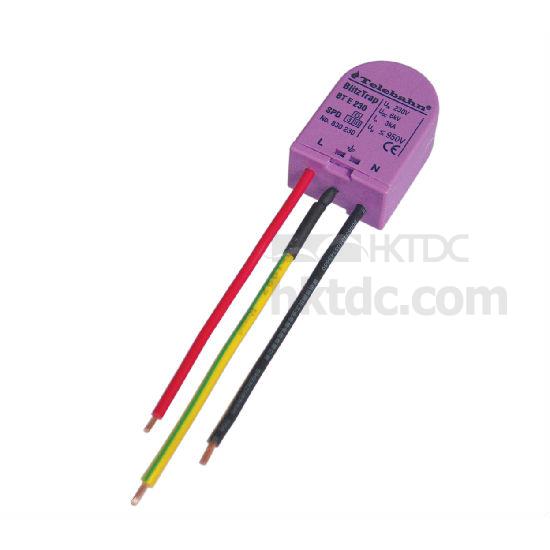

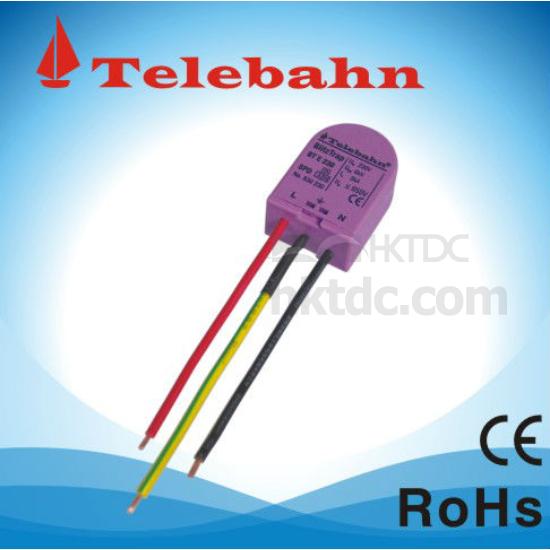

Surge Protector
Production Lead Time:
10 - 30 day(s)
Model No.:
BT E 230
Brand:
Telebahn
Colour:
Purple
Size:
6×2×1cm
Port:
Shenzhen, Zhuhai, Hong Kong
Type of Payment:
T/T, Paypal
Minimum Order Quantity:
5 piece(s)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
Product description:
Main characteristic:
Technical data:
- Fine protection for devices with DC/AC power supply.
- Will sound an alarm when fault occur.
- Protect electronic equipment from surges.
- Can be soldered on printed circuit boards (PCBs) or installed in socket boxes.
- Designed according to GB 18802.1 / IEC 61643-1.
Main characteristic:
- High discharge capacity.
- Low voltage protection level.
- Quick response.
- Long service time.
- Outstanding quality.
- Core components are from internationally well known suppliers.
Technical data:
- Type: BT E 230.
- Order number: 830 230.
- Rated voltage (maximum continuous AC voltage) Uc: 150V.
- Nominal discharge current (8/20) In: 3kA (L-N), 5kA (L+N-PE).
- Combination wave Uoc: 6 kV (L-N), 10 kV (L+N-PE).
- Voltage protection level at In Up: ≤1.15kV (L-N), ≤1.5kV (L+N-PE).
- Response time tA: ≤ 25ns (L-N), ≤ 100ns (L+N-PE).
- Maximum backup fuse: 16A gL / gG.
- Short circuit withstand capability at maximum backup fuse: 6kArms.
- Indication of disconnection: acoustic signal on.
- Operating temperature rangeθ: -40℃~+80℃.
- Terminal wires: 1 mm2, length 120 mm.
- Enclosure material: purple thermoplastic, UL94-V0.
- Test standards: YD/T 1235.1; GB 18802.1; IEC 61643-1.
- Certification: CE (LVD, EMC).
