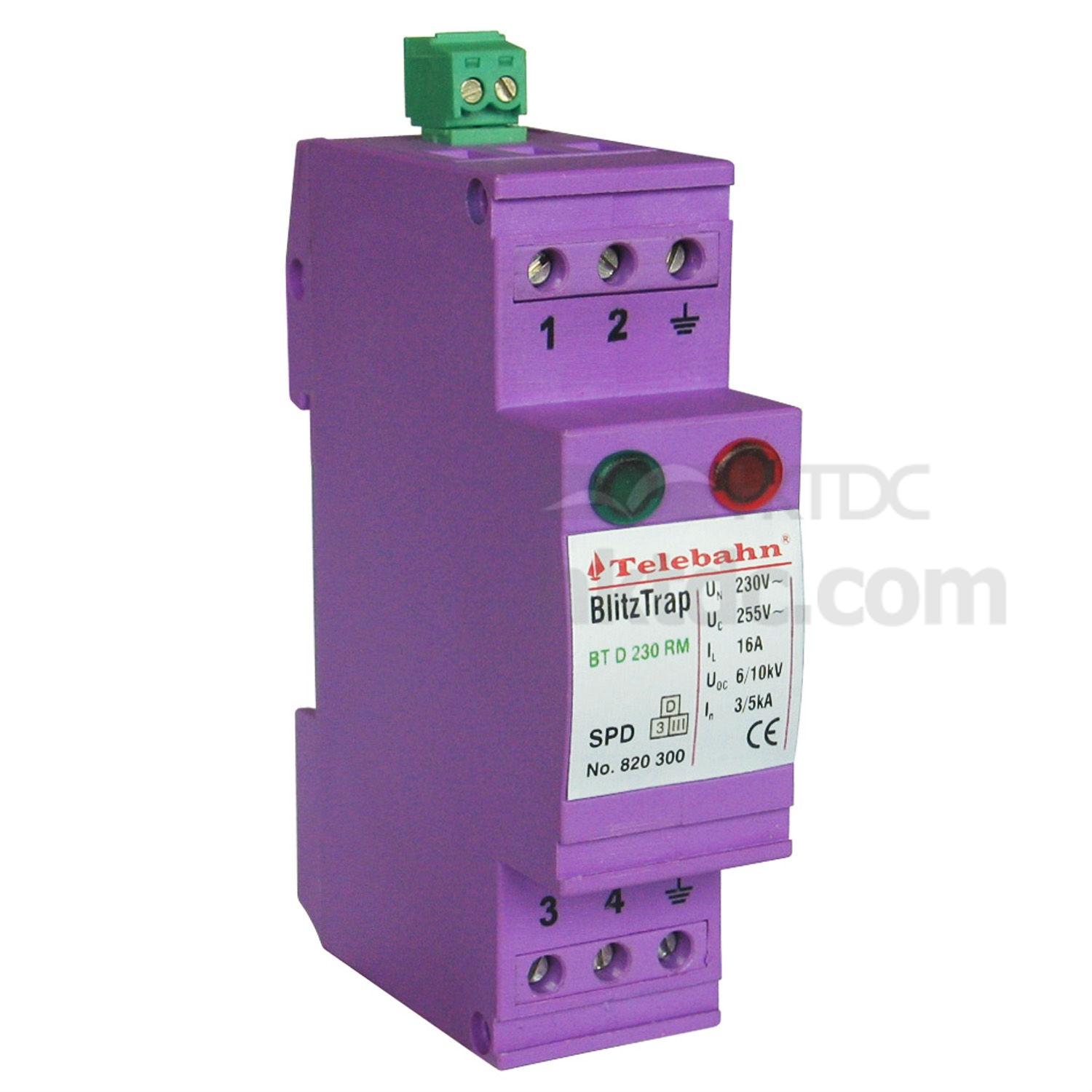

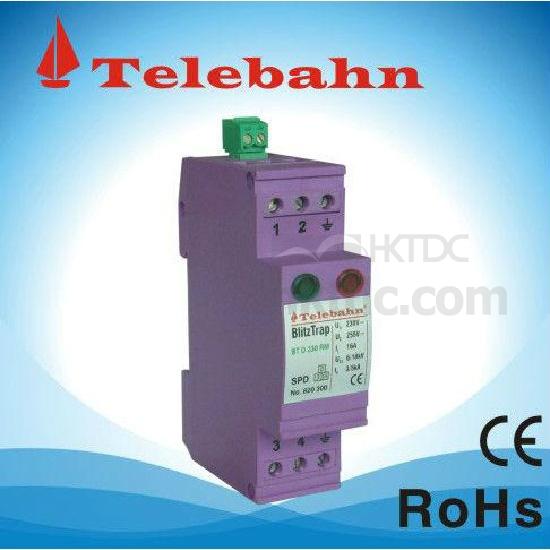

Surge Protector

Production Lead Time:

5 day(s)

Model No.:

BT D 230 RM

Brand:

Telebahn

Colour:

Purple

Size:

9×6×2.5cm

Port:

Guangzhou,Shenzhen,Zhuhai

Type of Payment:

T/T,PayPal

Minimum Order Quantity:

5 piece(s)

Package:

Yes

Customised:

Yes

Description

Contact Supplier

Product description:

For installation at LPZ 1-2 or higher.
Protect electronic equipment from surge damages.
Applied in SPD Class III (Class D) for three-phase various power supply system.
Designed according to IEC 61643-1 / GB 18802.1.

Main characteristics:

High discharge capacity, quick response.
Green light indicates normal and red light indicates fault.
Three-phase protection and disconnector.
Remote signaling connector for fault indication.
Robust construction.
Easy installation.
Effectively protect devices from surge damages.

Parameters:

Type: BT D 230 RM.
Art number: 820 300.
Nominal a.c. voltage [UN]: 230V.
Rated voltage (max. continuous a.c. voltage) [UC]: 320V.
Nominal load current [IL]: 16A.
Nominal discharge current (8/20) (L–N) [In]: 3KA.
Nominal discharge current (8/20) (L+N–PE) [In]: 5KA.
Combination wave (L–N) [UOC]: 6KV.
Combination wave (L+N–PE) [UOC]: 10KV.
Voltage protection level (L-N) [Up]: ≤ 1.15kV.
Voltage protection level (L/N–PE) [Up]: ≤ 1.5kV.
Response time (L–N) [tA]: ≤ 25ns.
Response time (L/N–PE) [tA]: ≤ 100ns.
Maximum backup fuse: 16A gL/gG.
Short-circuit withstand capability at maximum backup fuse: 6kArms.
Operating temperature range [TU]: -40°C~+80°C.
Cross-sectional area: 0.5mm2 ~ 6mm2 solid / 4mm2 flexible.
Mounting on: 35mm DIN rail.
Enclosure material: purple thermoplastic, UL94-V0.
Dimension: 1.5mods
Test standards: IEC 61643-1; GB 18802.1; YD/T 1235.1
Certification: CE (LVD, EMC).
Type of remote signaling contact: break contact.
Switching capacity a.c.: 250V/0.5A.
Switching capacity d.c.: 250V/0.1A; 125V/0.2A; 75V/0.5A.
Cross-sectional area for remote signaling contact: maximum 1.5mm2 solid/flexible.
