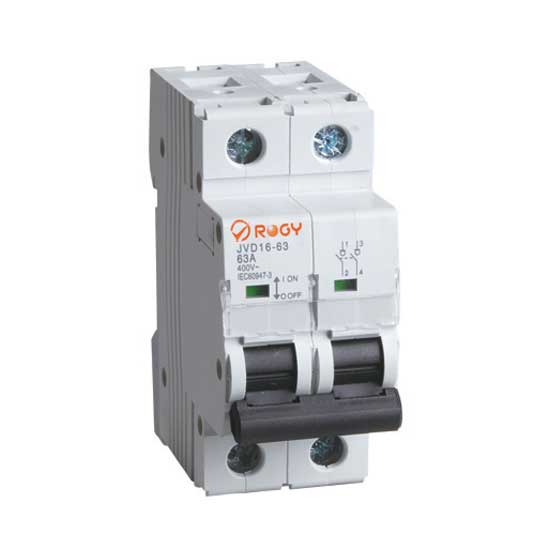

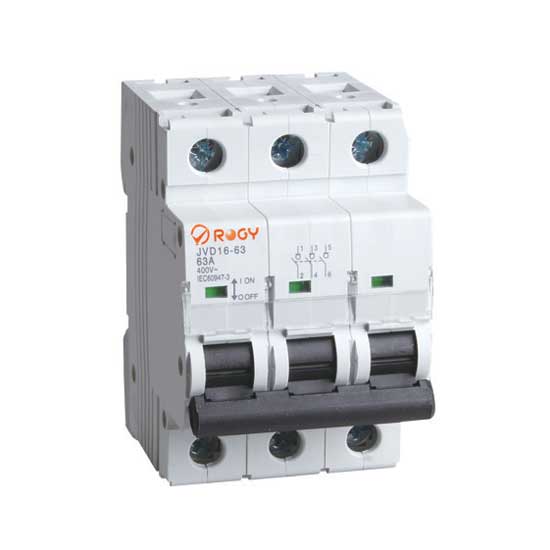

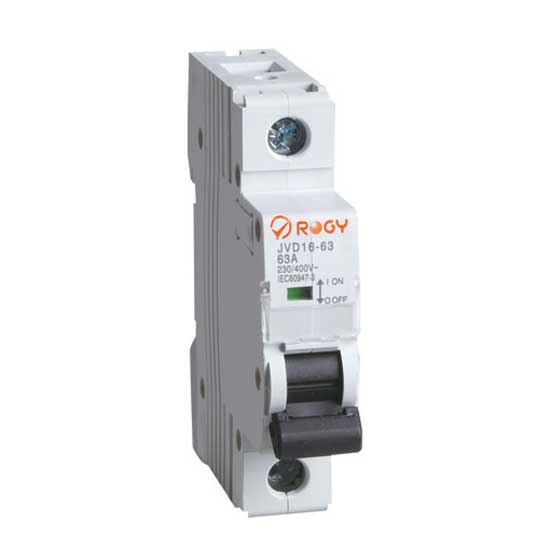

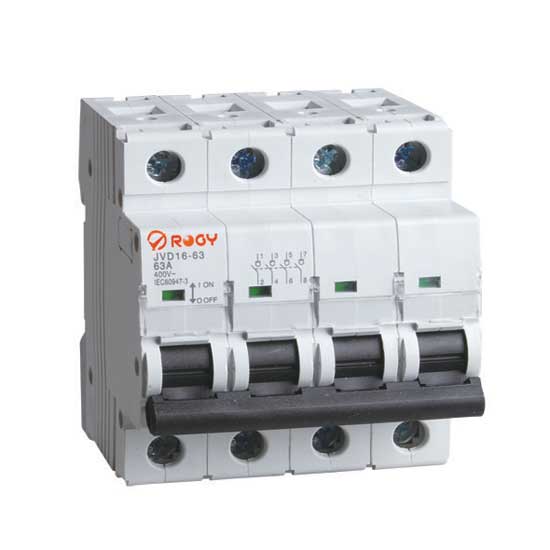

This switch disconnector is suitable for electric circuits with an AC 230/400V rated voltage and a 50/60Hz rated frequency. The advanced design makes it ultra safe to operate. There are 1 pole, 2-pole, 3-pole and 4-pole designs available for meeting your needs.

• Pole No.: 1P, 2P, 3P and 4P.
• Rated current (A): 16, 25, 40 and 63.
• Rated voltage: AC 230/400V.
• Rated frequency: 50/60Hz.
• Rated short-circuit making capacity: 6A.
• Rated withstand current: 1kA within 1second.
• Electro-mechanical endurance: 10,000.
• IEC 60947-3.
