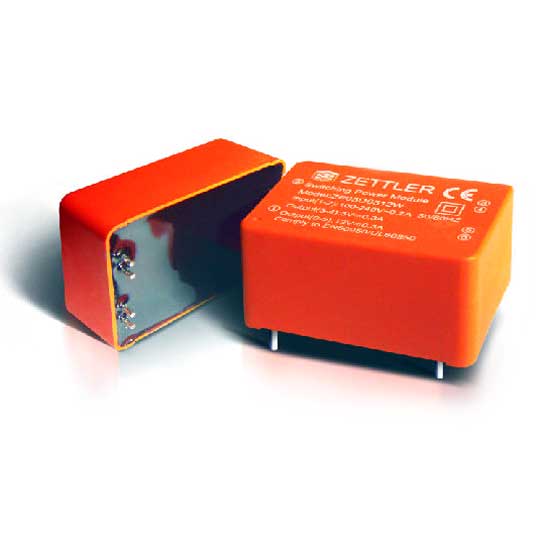

This switching power module is designed to be mounted on PCB. It features an input power range of 90-264V AC and an output power range of 5-24V DC. The encapsulated power module is dust and humidity resistant.

• Series power modules from 1W to 10W.
• The 5W series has TUV, CE+LVD+EMC, CB approvals.
• Universal input range: 90-264V AC, 50/60Hz.
• Output range from 5VDC-24VDC, also can be customized 
• Switching power module for PCB mounting. 
• Encapsulated design prevent dust and humidity. 
• Self-extinguishing plastic 94V-0. 
• High efficiency.
• Low temperature rise 
• Dielectric strength: 3,600V AC. 
• Low standby power: ≤0.3W and leakage current.
• Integrated EMC network.
• Integrated perfect protection.
• Compact size.
• Designed according to IEC61588, IEC60950 and UL60950.
