Switching Power Supply
Model No.:
KRE-0901003
Brand:
KRECO
Colour:
Black
Port:
Zhongshan
Type of Payment:
30% T/T in advance and 70% before shipment
Minimum Order Quantity:
2,000 piece(s)
Customised:
Yes
Output Voltage:
9VDC
Input Voltage:
100-240VAC
Output Frequency:
50/60Hz
Output Power:
1 - 50W
Output Current:
1A
Output Type:
Single
Place of Origin:
Mainland China
Description
Contact Supplier
Description

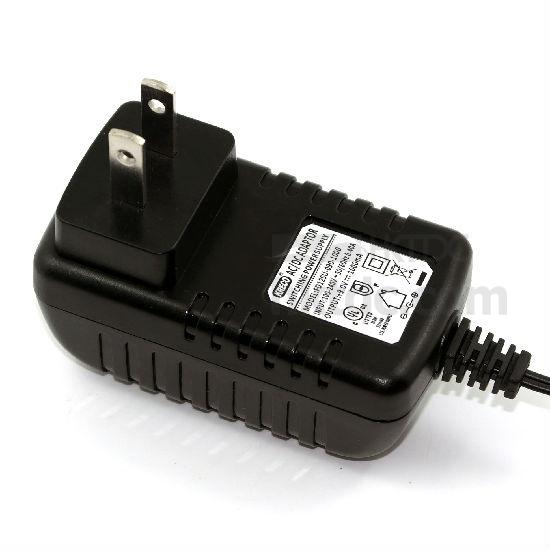

This is a switching power supply that flaunts low standby power consumption. It is engineered to provide a regulated output voltage. This well-made electronic power supply incorporates a switching regulator to convert electrical power efficiently.
9V 1A series External wall-mount switching power supply(AC/DC adapter, AC/DC power adapter), Class II, Universal input, customized design.
Features:
9V 1A series External wall-mount switching power supply(AC/DC adapter, AC/DC power adapter), Class II, Universal input, customized design.
Features:
- High reliability
- High efficiency
- Light and convenient plug-in
- LED indication
- Input voltage: 100 to 240V AC, 50 to 60Hz 0.4A
- input current: 400mA maximum
- DC output voltage: 9V DC
- DC output current: 1000mA
- Inrush current (240V AC): 25A, cold 25°C
- No load input power (240V AC): 0.3W
- Efficiency: 75% maximum
- Output voltage precision: 5%
- Ripple/noise: 100mV
- Regulation: ±1% line, ±5% load
- Operating temperature: 0 to 40°C
- Operating humidity: 10 to 95% RH
- Storage temperature: -20 to 65°C
- Storage humidity: 10 to 95% RH
- Burn-in: 100% full load, 40°C, 4hrs minimum
- Leakage current: 0.25mA maximum at 264V AC
- Withstanding voltage: 3kV 1minute 10mA max, between primary and secondary
- MTBF: meet MIL-HDBK-217F over 50,000hrs, full load, 25°C
- Over-voltage protection
- Over-current protection
- Short-circuit protection
- Thermal shutdown capability
