Switching Power Supply
Production Lead Time:
12 day(s)
Model No.:
TPZ-2400250
Brand:
TOP POWER
Colour:
Black or White
Port:
SHENZHEN
Type of Payment:
T/T
Minimum Order Quantity:
500
Features:
with Fuse
Package:
Yes
Customised:
Yes
Output Type:
DC
Connection:
Desktop
Usage:
Switching Power
Place of Origin:
Mainland China
Description
Contact Supplier
Description

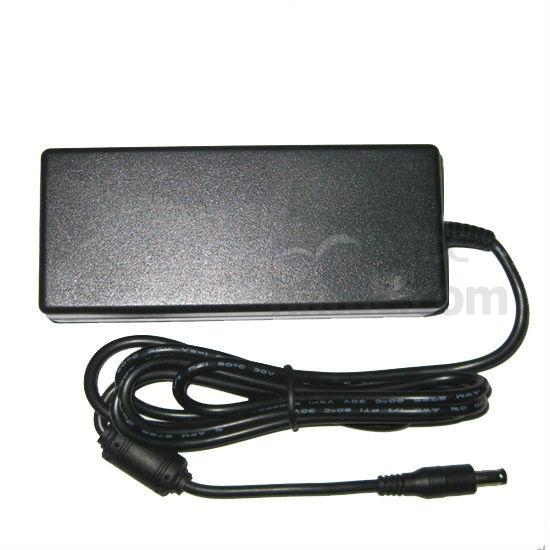

UL/CE/FCC/CB Listed 60W Switching Power Supply
Input Condition : 100 to 240VAC 50/60 Hz 1.8A Max
Input Rated Voltage : 100 to 240VAC
Input Voltage Range : 90 to 264VAC
Input Rated Frequency : 50/60Hz
Input Frequency Range : 47Hz to 63Hz
Input Current : 1.8A Max
Input Inrush Current : 60A Max
Input No Load Power Consumption : 0.1W Max At 115Vac/230Vac
Efficiency : 88% Min
Rated Output Power: 60W
Output Voltage:24V
Output Current:2.5A
Output Load Regulation : ±5%
Output Over Shoot : 130% Max
Protection : OCP OVP SCP OPP
Dielectric Withstand Voltage : 3.75KV 5mA 60s
Efficiency Level:VI
Leakage Current : 0.25 mA At 230Vac
Operating Temperature: 0 to 40℃
Storage Temperature: -10 to 85℃
Relative Humidity: 20 to 80%
Input Condition : 100 to 240VAC 50/60 Hz 1.8A Max
Input Rated Voltage : 100 to 240VAC
Input Voltage Range : 90 to 264VAC
Input Rated Frequency : 50/60Hz
Input Frequency Range : 47Hz to 63Hz
Input Current : 1.8A Max
Input Inrush Current : 60A Max
Input No Load Power Consumption : 0.1W Max At 115Vac/230Vac
Efficiency : 88% Min
Rated Output Power: 60W
Output Voltage:24V
Output Current:2.5A
Output Load Regulation : ±5%
Output Over Shoot : 130% Max
Protection : OCP OVP SCP OPP
Dielectric Withstand Voltage : 3.75KV 5mA 60s
Efficiency Level:VI
Leakage Current : 0.25 mA At 230Vac
Operating Temperature: 0 to 40℃
Storage Temperature: -10 to 85℃
Relative Humidity: 20 to 80%
