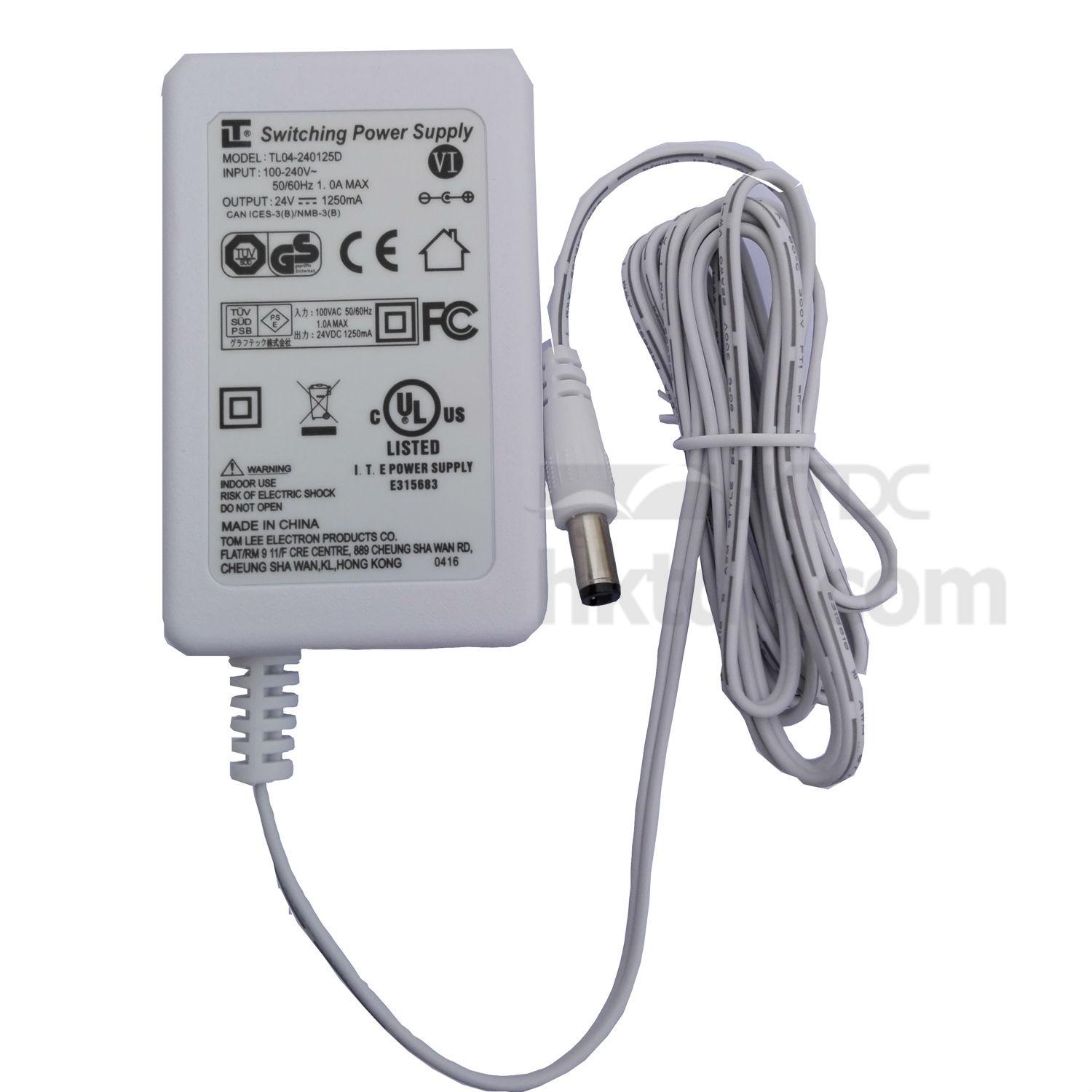

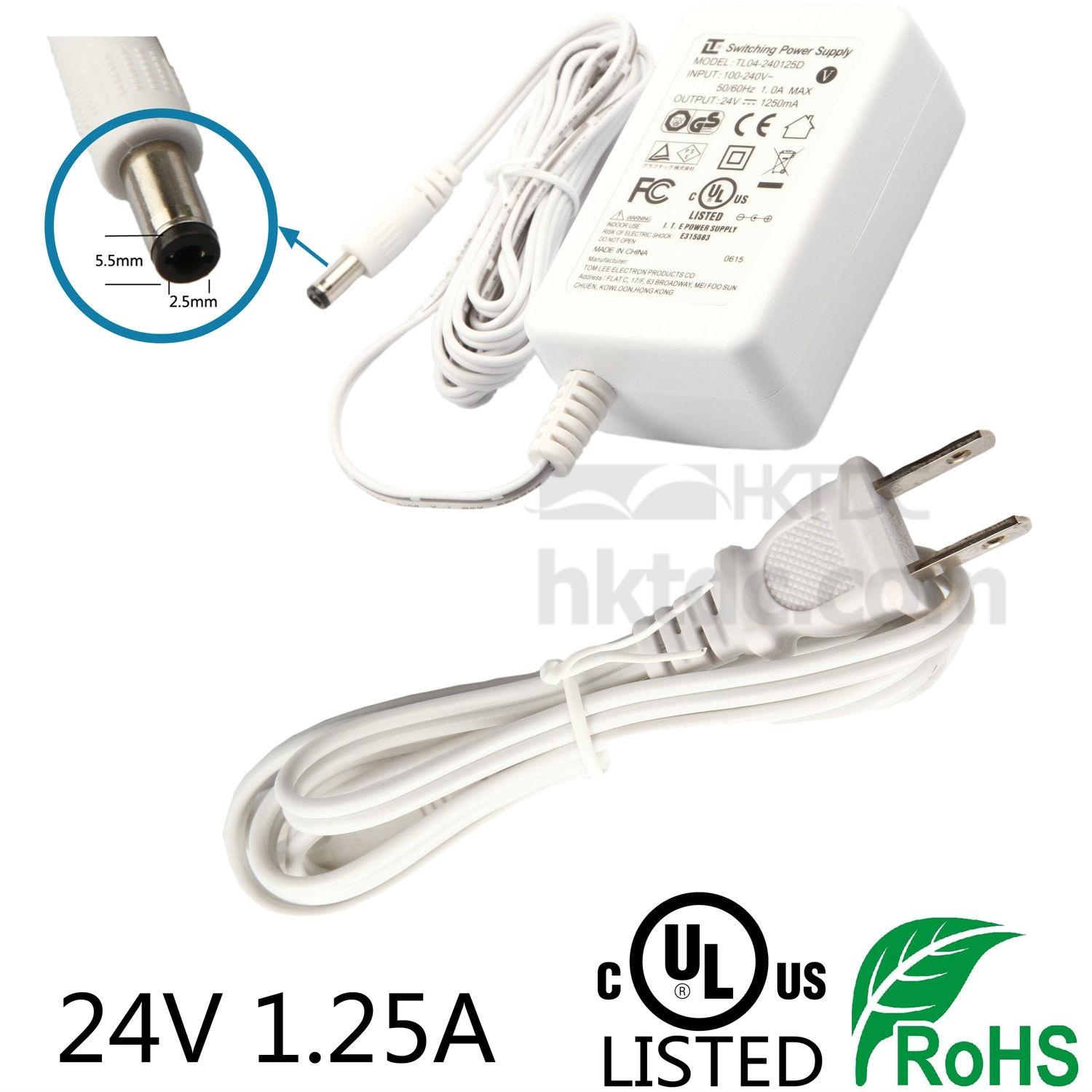

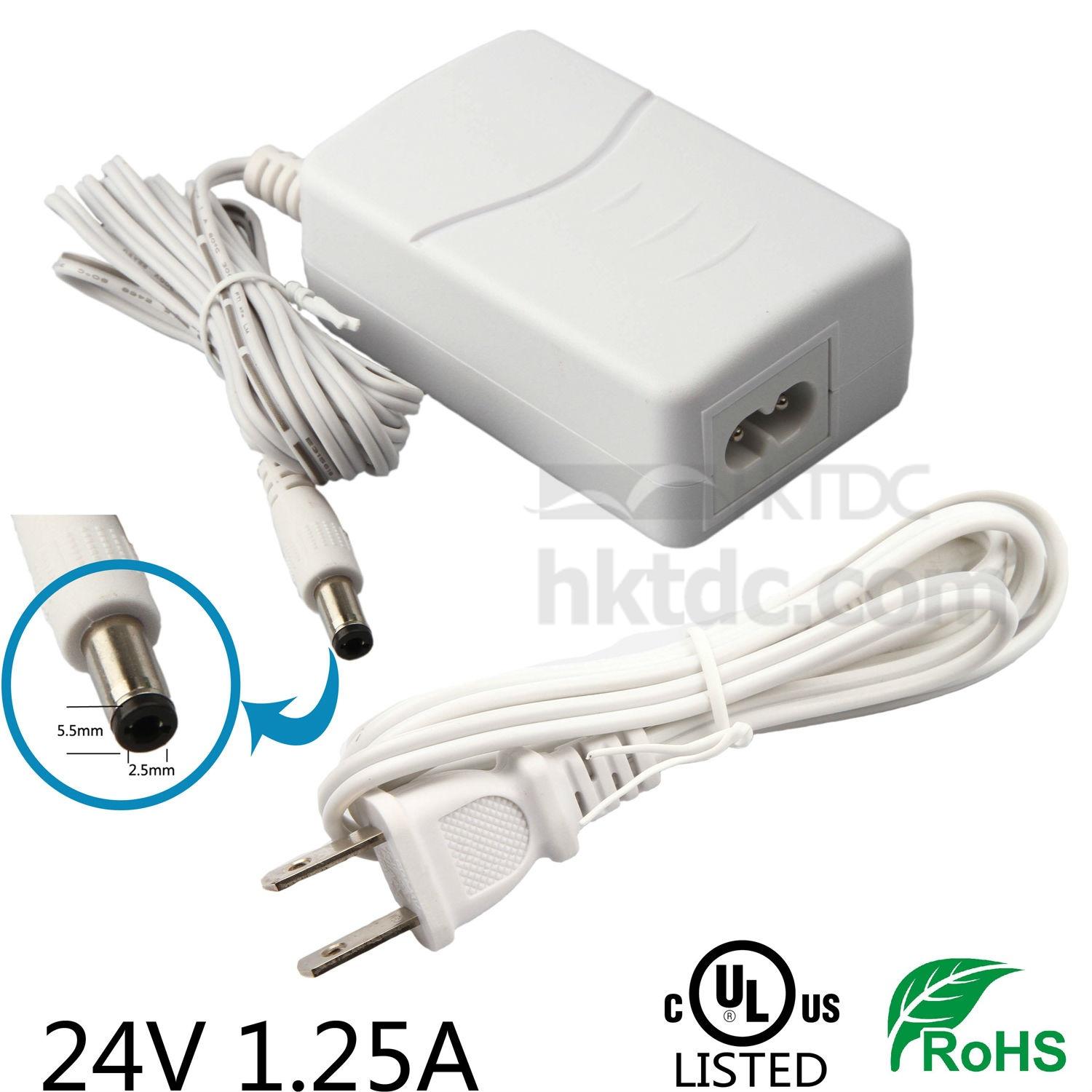

Switching Power Supply
Production Lead Time:
25 day(s)
Model No.:
TL04-240125D
Brand:
TL
Size:
49mmX30mmX79mm
Port:
SHENZHEN
Type of Payment:
TT L/C
Minimum Order Quantity:
3000pcs
Package:
Yes
Customised:
Yes
Output Voltage:
24v
Input Voltage:
100~240v
Output Frequency:
50/60Hz
Output Power:
30W
Output Current:
1.25A
Place of Origin:
Mainland China
Description
Contact Supplier
Description
◆Output
Dc voltage: 24V
Rated current: 1.25A
Ripple and noise: V(p-p)<1％
Voltage regulation: ±5.0%
Start/Rise/Hold time: Start time≤3s Delay time》10ms at 240V AC input full load
◆Input
Voltage range: 100-240V AC
Frequency range: 50-60Hz
Efficiency: Comply with CEC,DOE(USA),GEMS(Au)and ERP(EU)
◆Protection
Ocerlcad/Short circuit :
120-250％ of rated output power can be adjusted
Protection mode: hiccups mode,Auto recover
◆Environment
Operating temperature: 0-40 ℃
Operating humidity: 20-90％RH,Full load,No condensation Normal operating
Storage temperature.humidity: -20+60％℃,10~93％RH
◆Safety and EMI
SAFETY Standards: K60950/60065/61347/61558/60335.
Safely: TUV , PSE
Electromagnetic compatible:GB9254.GB17625.GB13837 Comply with EN55022B.FCCpart15B.
EMC immunity: Comply with EN55024
Dc voltage: 24V
Rated current: 1.25A
Ripple and noise: V(p-p)<1％
Voltage regulation: ±5.0%
Start/Rise/Hold time: Start time≤3s Delay time》10ms at 240V AC input full load
◆Input
Voltage range: 100-240V AC
Frequency range: 50-60Hz
Efficiency: Comply with CEC,DOE(USA),GEMS(Au)and ERP(EU)
◆Protection
Ocerlcad/Short circuit :
120-250％ of rated output power can be adjusted
Protection mode: hiccups mode,Auto recover
◆Environment
Operating temperature: 0-40 ℃
Operating humidity: 20-90％RH,Full load,No condensation Normal operating
Storage temperature.humidity: -20+60％℃,10~93％RH
◆Safety and EMI
SAFETY Standards: K60950/60065/61347/61558/60335.
Safely: TUV , PSE
Electromagnetic compatible:GB9254.GB17625.GB13837 Comply with EN55022B.FCCpart15B.
EMC immunity: Comply with EN55024
