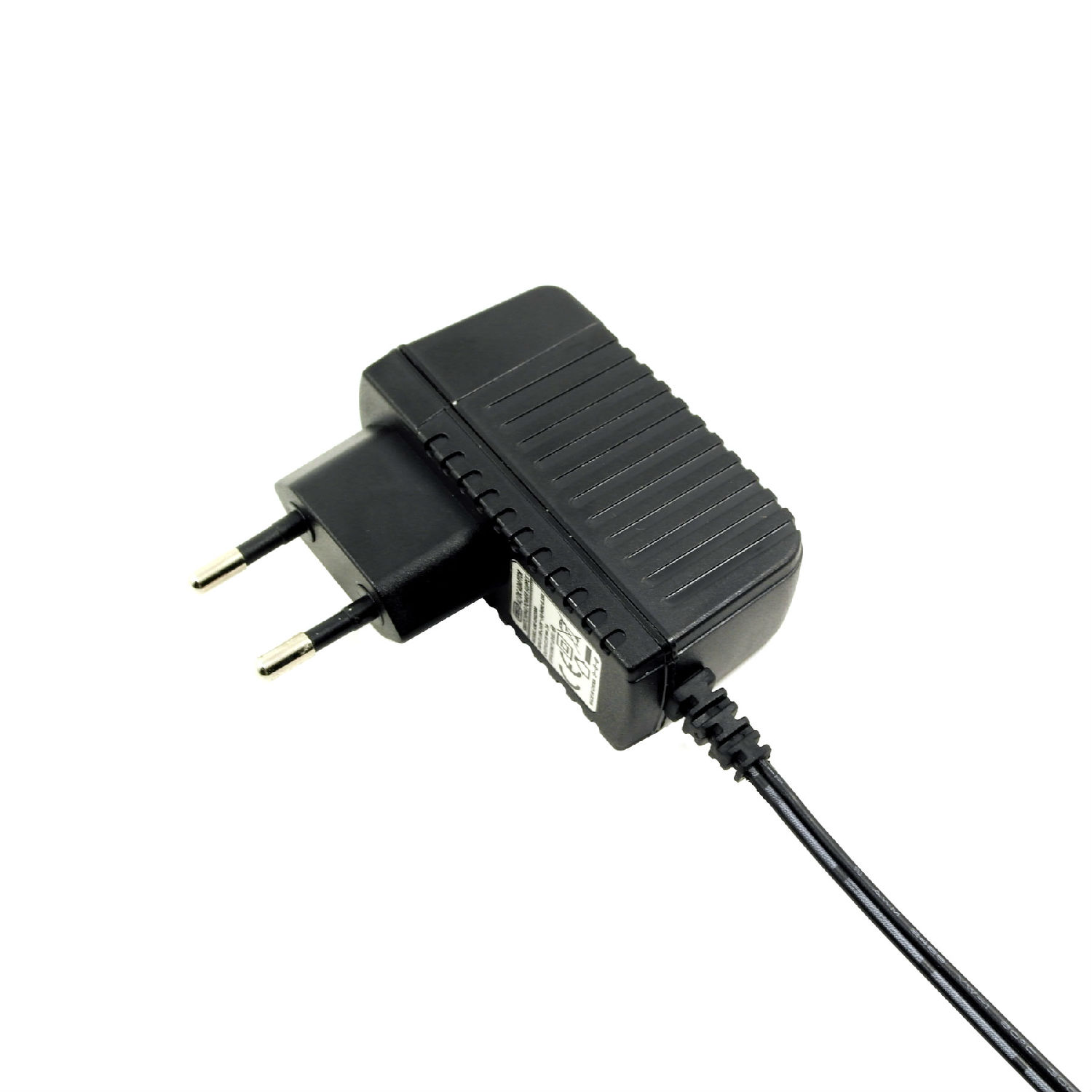

Switching Power Supply
Share this page
Production Lead Time:
30 day(s)
Model No.:
KRE-1201000
Brand:
KRECO
Colour:
Black
Size:
75x45x67mm
Package:
Yes
Customised:
Yes
Output Voltage:
12V DC
Input Voltage:
100 to 240V AC
Output Power:
12W
Output Current:
1000mA
Output Type:
Multiple
Place of Origin:
Mainland China
Description
Contact Supplier
Description
  • 12VDC
  • 1,000mA series
  • External wall-mount switching power supply (AC/DC adapter, AC/DC switching power adapter), class II, LPS, Universal input.
  • Customized designs are available
  • C/N: KRE-SAW
  • Model: KRE-1201000
  • High-efficiency
  • High-reliability with fuse
  • LED light indicator Light and convenient to plug-in low working temperature and low ripple noise
  • Storage: 10 to 95%
  • RH Operating: 0 to 40°C
  • Storage: -20 to 80°C
  • Operating: 10 to 95%
  • RH Emission and immunity: FCC Part15 Class B En55013: 2001+A1: 2003+A2: 2006 En55020: 2007 EN61000-3-3: 2008 EN61000-3-2: 2006+A2: 2009 AN/NZS CISPR 13:2012 Subpart B: 2014
  • Safety approvals: BS En60065/AS/NZS60065 IEC60065/EN60065/UL60065 J60065/GB8900/K60065
  • Certifications: UL, cUL, CE, CCC, PSE, GS, TUV, SAA, CQC, ETL, CETL, CB, FCC, EMC, RoHS
  • Input Voltage: 100 to 240V AC
  • Input frequency range: 50 and 60Hz
  • Current: 150mA (maximum) No loading power: 0.3W (240V AC)
  • Inrush current (240V AC): 25A, cold 25°C Plug type: wall mount Efficiency: minimum 70 to maximum 90%
  • Power: 12W
  • DC voltage: 12V DC
  • Output current: 1,000mA
  • Voltage precision: 5% Ripple and noise: 100mV
  • Regulation: Line: ±1%, Load: ±5% DC cord: 3.5mm outer diameter
  • Normal wire length: 1.5m
  • Reliability: 100% full loading, 40°C, 4 hours each part of this series can be sold separately
  • Leakage current: 0.25mA, maximum at 264V AC
  • MTBF: meet MIL-HDBK-217F over 50,000 hours, full loading, 25°C burn-in
  • Withstanding voltage: 3kV, 1 minute, 10mA (maximum), between primary and secondary
  • Protection: Over-current protection, Over-voltage protection, Short-circuit protection, Thermal shutdown capability, Over-load protection
