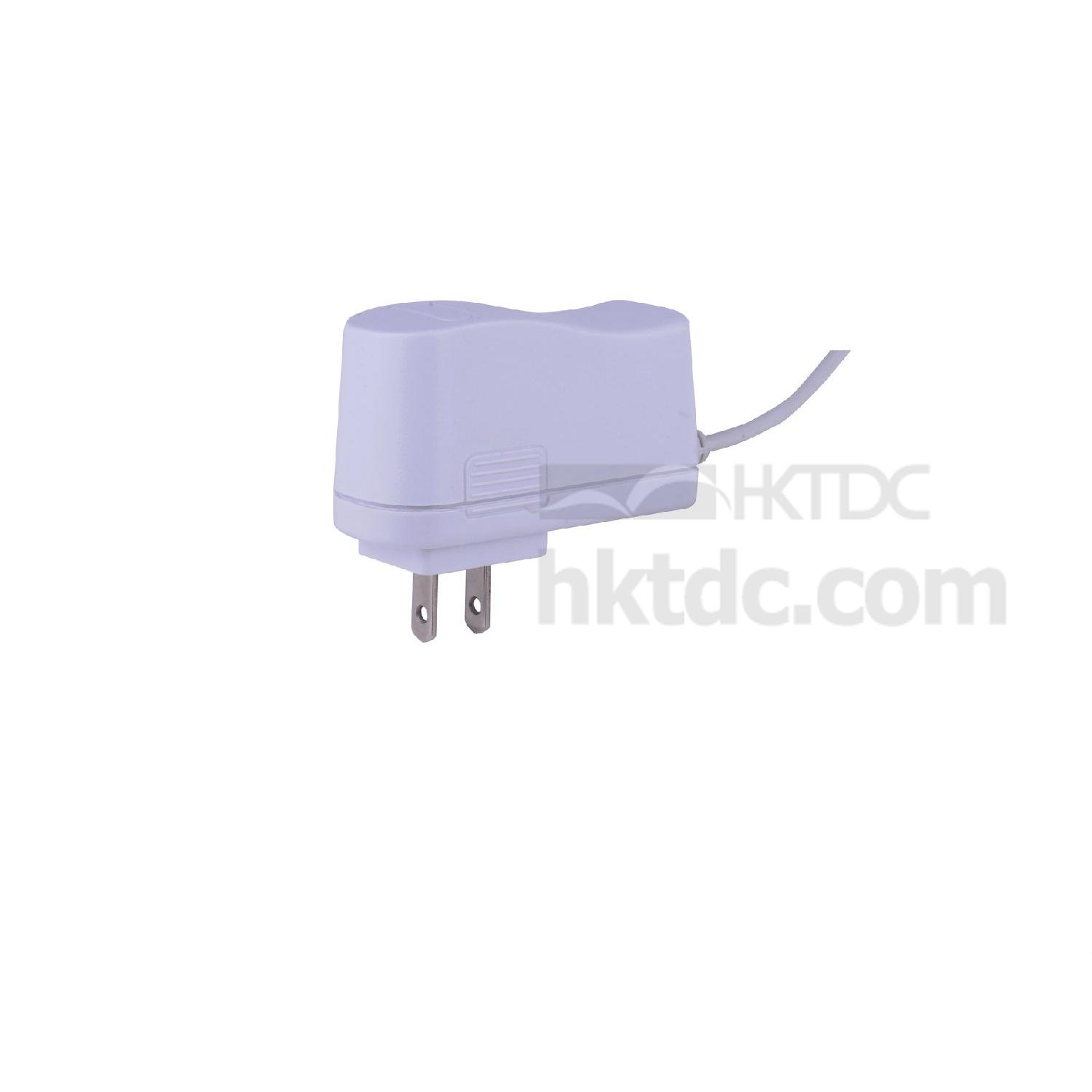

Switching Power Supply
Production Lead Time:
15 day(s)
Brand:
eFortress
Colour:
Black, White
Port:
Xiamen Port
Type of Payment:
T/T
Minimum Order Quantity:
1,000
Package:
Yes
Customised:
Yes
Use:
Communicating Products, Fitness Equipments, Medical Equipments, Digital and Audio Products, Household Appliances and Industrial Control Systems
Description
Contact Supplier
Description
- Input voltage: 100-240VAC (90-264VAC)
- Input current: 0.2A max
- Frequency: 50/60Hz (47-63Hz)
- Output voltage: 3.0-12V
- Output current: 0.1-1.0A
- No-load power consumption: 0.3W max
- Efficiency: 70% min
- Ripples & noises: 0-120mV
- Line regulation: ±1%
- Load regulation: ±5%
- Hi-pot test: 3750VAC 60s 5mA max
- Insulation resistance: 10M Ω min
- Leakage current: 0.25mA max
- Operating temperature: 0-40℃
- Storage humidity: 5-95%RH
- Burn-in test: Rate Load, 40±5℃, 4 hours
- EMC standard: EN55022 class B/FCC Part 15 class B
- EN55024/A1: 2001/EN61000
