T8 LED Fluorescent Tube

Production Lead Time:

20 day(s)

Model No.:

L06G

Brand:

ERVAN

Colour:

White

Size:

26 x 1198mm

Port:

Shenzhen

Type of Payment:

L/C, T/T

Minimum Order Quantity:

100 piece(s)

Voltage(V):

AV 100-240

Certification:

CE, EMC, GS, LVD, RoHS, SAA, TUV

Base Type:

G13

Applicable:

Commercial, Housing

Beam Angle (Degree):

120

Colour Temperature:

2700-8000K

Average Life (hour):

50000

LED Chips Model:

SMD3528/3020

Description

Contact Supplier

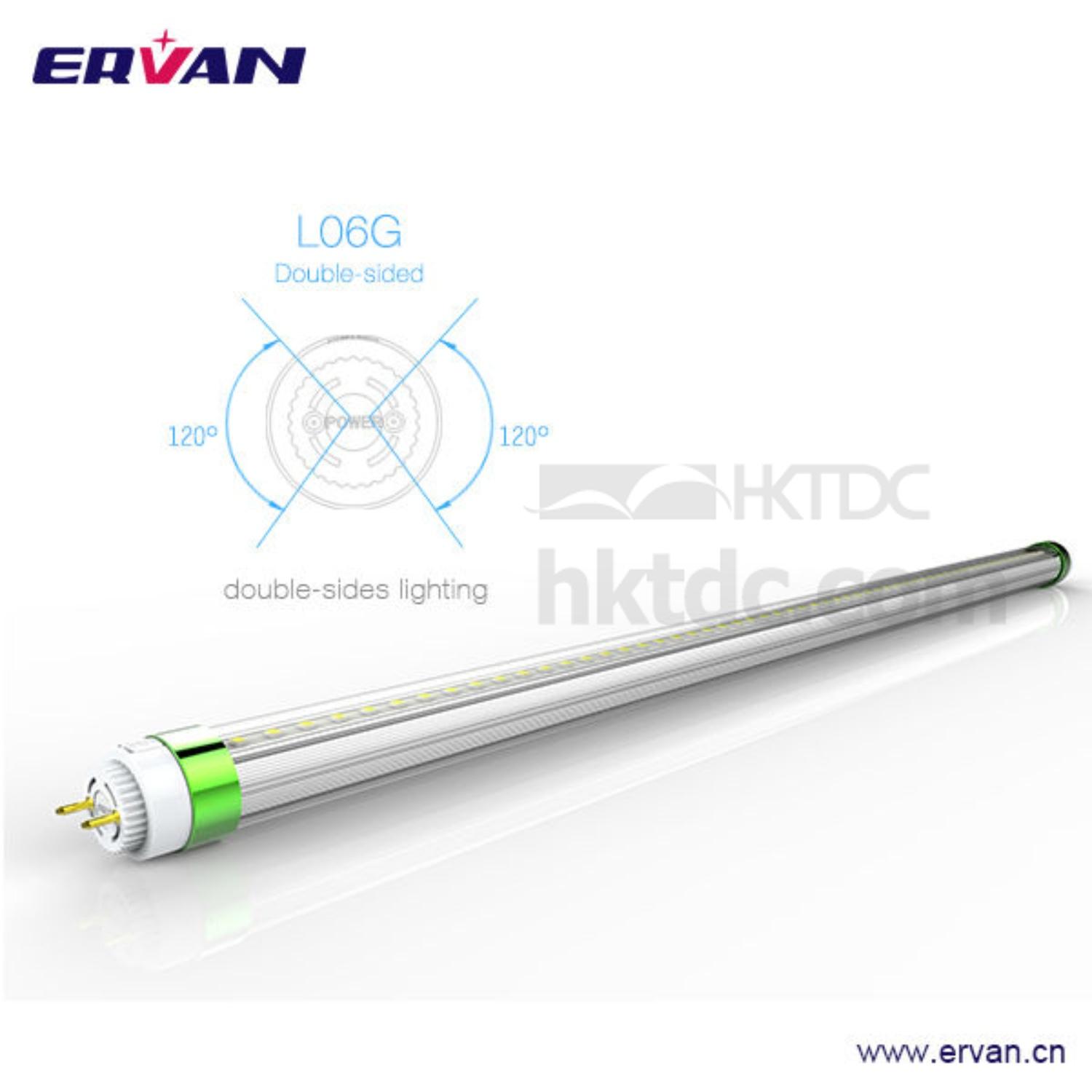

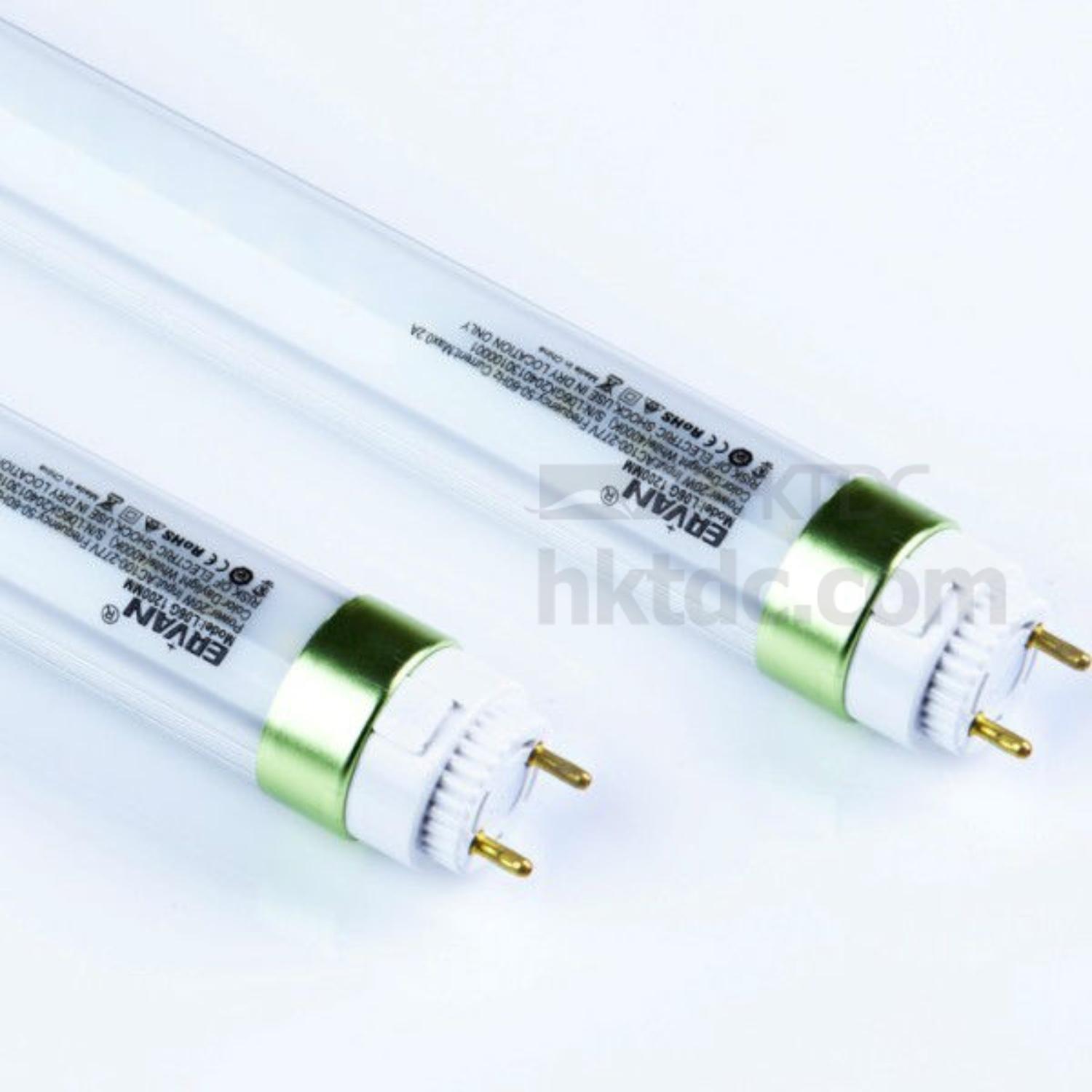

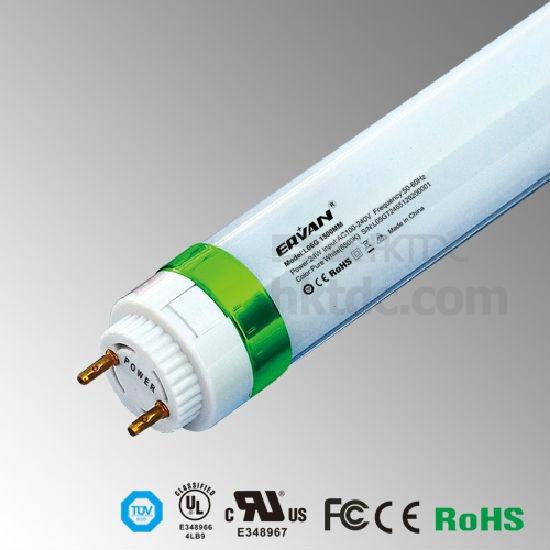

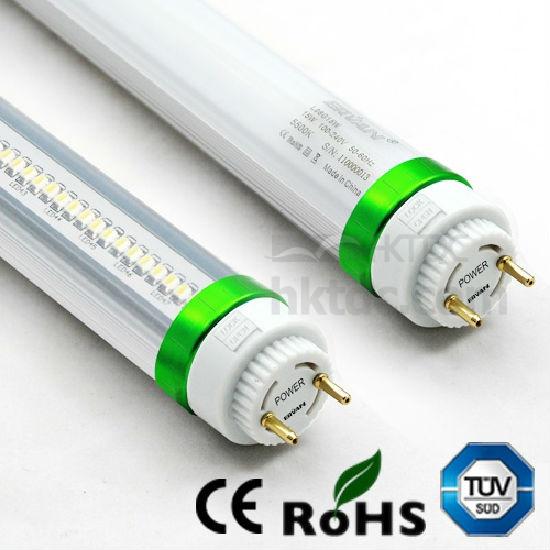

T8 LED Fluorescent Tube L06G

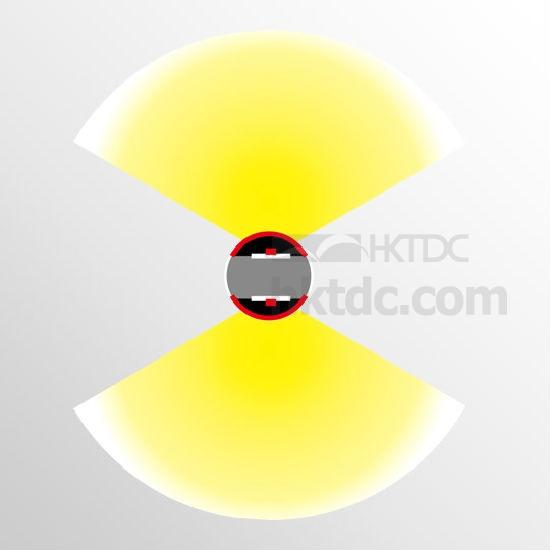

( Double side PC cover, double-side light-emitting)

This is designed specially for refrigerators. Dual lens for their energy efficient range of products. This series allow a significant reduction of energy consumed as the single tube did the task of two. More energy efficient and save space.

1200mm double-sided light-emitting LED tube.
Size: 26 x 1200mm.
Power: 20W.
Luminous: 2100lm±10%.
LED number: 216pcs.
Input voltage: AC 100 to 240V.
CRI: >80.
Luminous efficiency: 105m/W.
Power factor: 0.95.
Power efficiency: 0.85.
Operating frequency: 50 or 60Hz.
Operating temp.: -20°C - 40°C.
Beam angle: 120°.
Energy saving of power consumption: >70%.
Color temperature: 2700-3500K (warm white); 4000-4500K (daylight white); 5000~6000K (pure white); 7000-8000K (cool white).
Life span: 50,000h.
Warranty: 5 years.
N.W.: 416.6g.
Dimension: Φ26 x 1198 (4ft).
Packaging: 1pc/box, 50pcs/ctn.
Carton measurement: 135 x 48 x 26cm.
Accessory: fuse.

Features:

Double-sided PC cover, double-side lighting.
Latest lockable rotating end cap (patent).
Isolated power supply.
PC cover: clear/frosted.
Material: Al + high strength PC.
Light source: SMD 3528/3020 superior LED.
Certification: CE (EMC/LVD); RoHS; TUV.UL.cUL
Delivery time: 15 days for samples, 30 days for bulk productions.
Payment: T/T, L/C, Western Union.
Production capacity: 30,000pcs/month.
Application: refrigerator, freezers, indoor.
This is designed specially for refrigerators. Dual lens for their energy efficient range of products. This series allow a significant reduction of energy consumed as the single tube did the task of two. More energy efficient and save space.
