• Material: plastic (end cap).

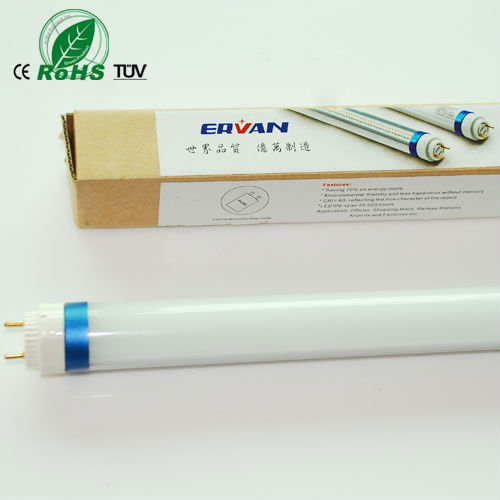

• Unique LED tube design on the lockable rotating end caps and blue shining ring.
• Perfect LED tube choice for the replacement of all the traditional tubes.

Advantage:

• With lockable rotating end cap.
• LED's maintain flux is up to 6.8lm/W.
• Significant energy savings.
• Maintenance free.
• Mercury free.
• Superior light quality.
• Wide input: AC110-240V.
• Shock/vibration resistant.
• Plastic end caps ensure to pass 4000V hi-pot test.
• Special circuit design, each LED work separately, avoiding the single broken LED influence problem.
• Isolated power supply.
• European safety wired.
• Saving 70% on energy costs.
• TUV,CE,UL certificated.

Technical specifications:

• Model, power, dimension (mm), LED qty.:
  L05G, 11W, 26 x 588 (2ft), 108pcs.
  L05G, 20W, 26 x 1198 (4ft), 216pcs.
  L05G, 24W, 26 x 1498 (5ft), 240pcs.
• Luminous (frosted lens), (clear lens):
  980lm±10%, 1050lm±10%.
  1800lm±10%, 2000lm±10%.
  2200lm±10%, 2400lm±10%.

Operation:

• Temperature: -20°C to 40°C.
• Voltage: AC110V-240V.
• Frequency: 50Hz/60Hz.
• Power factor: >0.95.
• Power supply efficiency: >90%.

Photometric specifications:

• LED luminous efficiency: up to 100lm/W.
• CRL: Ra: >70.
• CCT: warm white: 3,000K, daylight white: 4,000K, pure white: 5,500K, cold white: 6,500K.

Mechanical specifications:

• Light distribution: 120°.
• Isolate power supply.

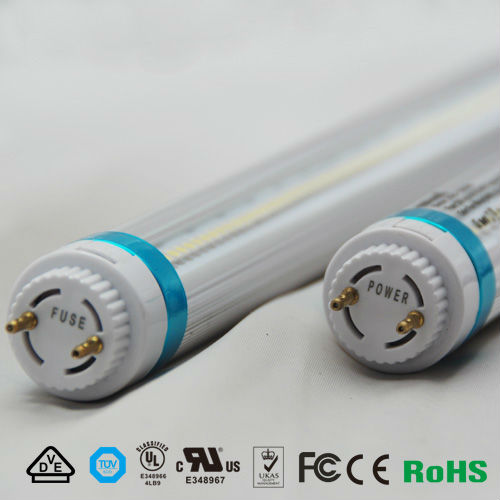

• Latest lockable rotating end cap.
• Clear/frosted cover is available.
• Weight: 588mm/210g, 1198mm/368.2g, 1498mm/443.8g.
• Can be placed in conventional T8 or T9 fluorescent brackets and replace fluorescent tubes (remove ballast and starter before replacement).

Packing:

• Length, qty./box, inner box size (cm): 1.2m, 25pcs, 133 x 24 x 24.
• Qty./carton, carton size (cm), volume weight: 50pcs, 35 x 48 x 26, 34kg.

Applications:

• Replacement for conventional fluorescent tubes.
• Hotels/factories/warehouses/offices/buildings.
• Schools/colleges/hospitals.
• Supermarkets/subways.
• Railway stations/airports, etc.

Installation:

• Note: make sure the power is turned off before installation.
• When the LED tube is replaced in a standard fluorescent tube batten, the starter must be removed, and replaced by the enclosed fuse.
• Attention: only suitable for magnetic ballast, not electronic ballast. Electronic ballast must be by-passed by a registered electrician.

Warranty:

• 3 years since the date of purchase.
