T8 LED Tube

Production Lead Time:

10 day(s)

Model No.:

L05G

Brand:

ERVAN

Colour:

White

Size:

D26 x 1,198mm (4FT)

Port:

Shenzhen

Type of Payment:

Western Union, L/C, T/T

Minimum Order Quantity:

25 piece(s)

Voltage(V):

AC100-240V

Certification:

CE, EMC, LVD, RoHS, SAA, UL, VDE

Base Type:

G13

Number of LED Chips:

216

Beam Angle (Degree):

120

Colour Temperature:

Cool White

Average Life (hour):

5000

LED Chips Brand:

espitar

LED Chips Model:

SMD3528

Description

Contact Supplier

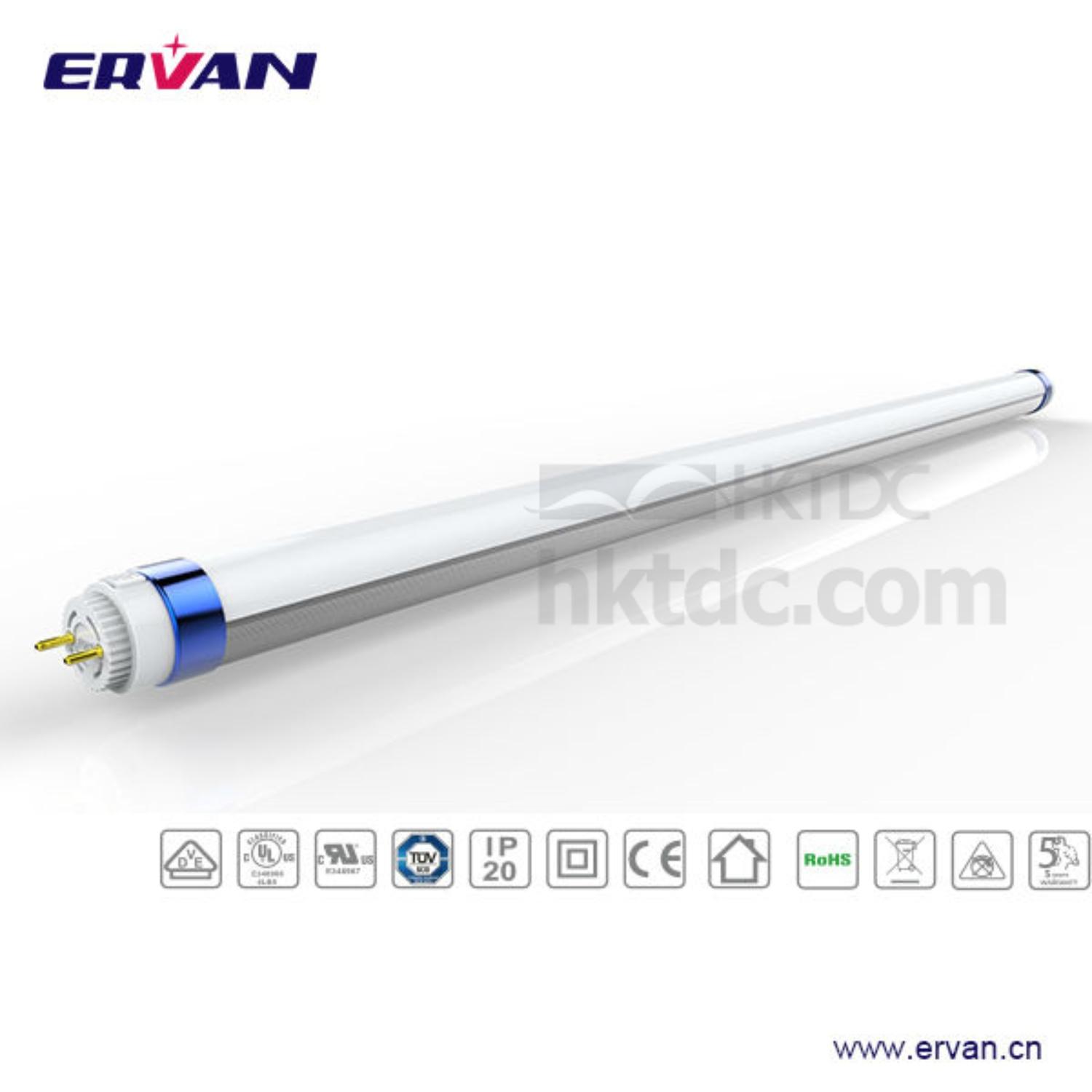

This T8 LED tube has an aluminum housing with a high strength PC cover and comes in an advanced LED tube design. It uses SMD 3528 LEDs as the light source and has an isolated power supply for safe operation. The LED tube can save more than 70% energy compared to traditional light tubes and is ideal for using in offices, shopping malls, railway stations, airports, factories, etc.

Material: aluminum and high strength PC.

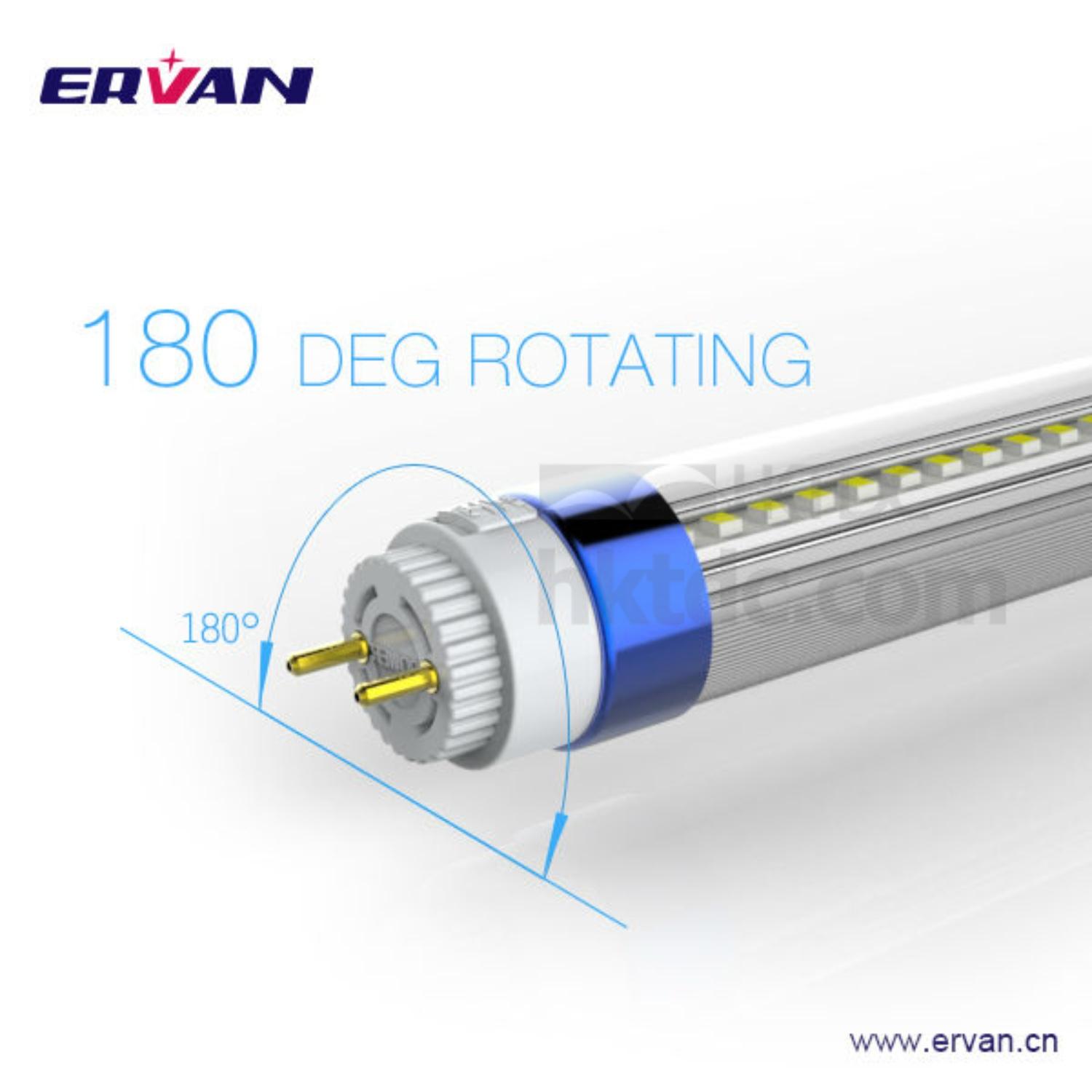

Advanced LED tube design with the latest lockable rotating end cap (patented).
Green LED tube option without mercury.
Isolated power supply (very safe).
PC lens: clear/frosted.
Light source: SMD 3528/3020 high quality LED.
Application: offices, shopping malls, railway stations, airports, factories, etc.

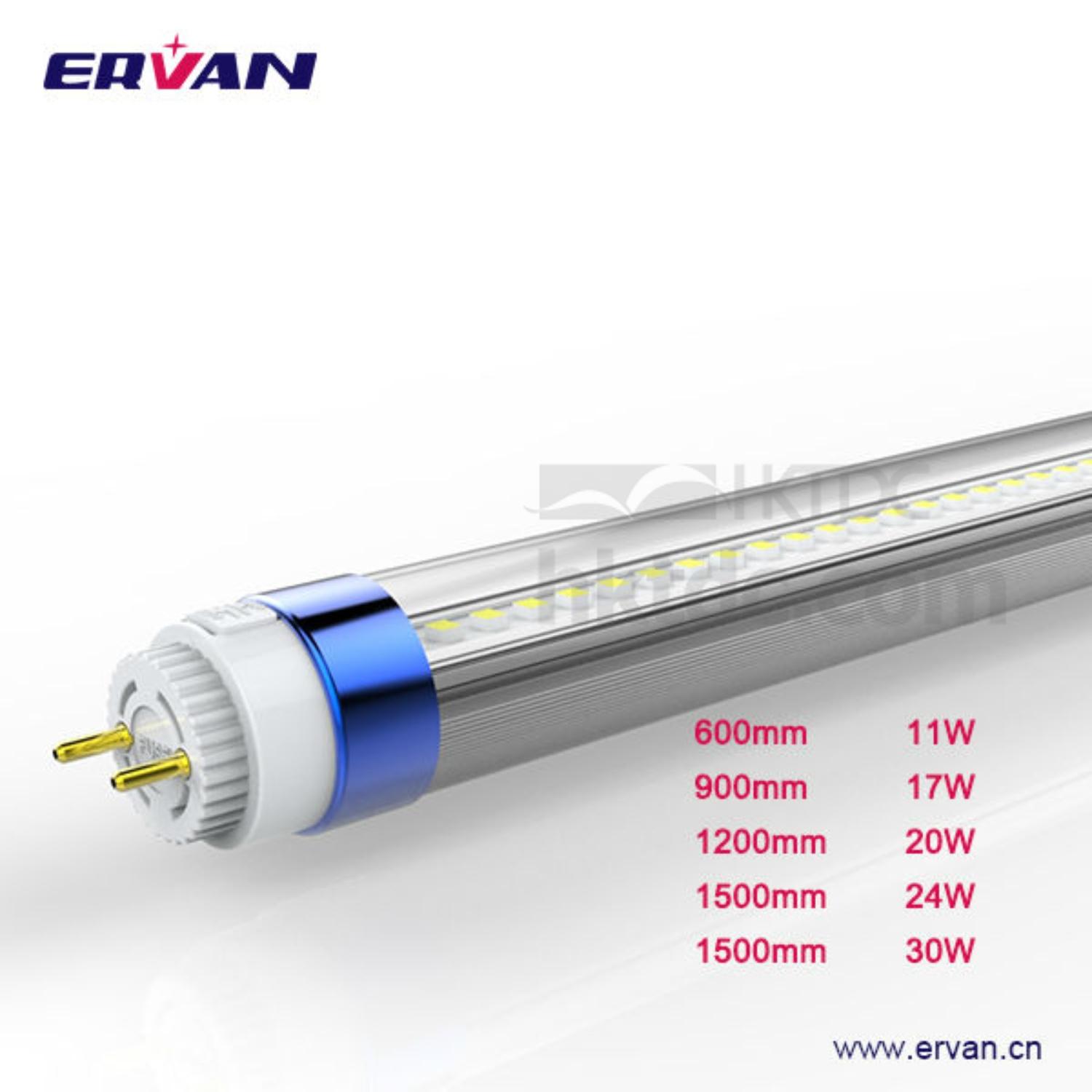

Power: 20W.
Power energy saving: ≥70%.
Luminous: 2000lm±10%.
LED number: 216pieces.
Input voltage: AC 100 to 240V.
CRI: ≥70.
Luminous efficiency: 75lm/w.
Operating temp.: -20°---40°.
Power factor: ≥0.95.
Power efficiency: 0.85.
Operating frequency: 50 or 60Hz.
Input current: 58mA.
Color temperature: 2700-3500K (warm white); 4000-4500K (daylight white); 5000~6000K (pure white); 7000-8000K (cool white)

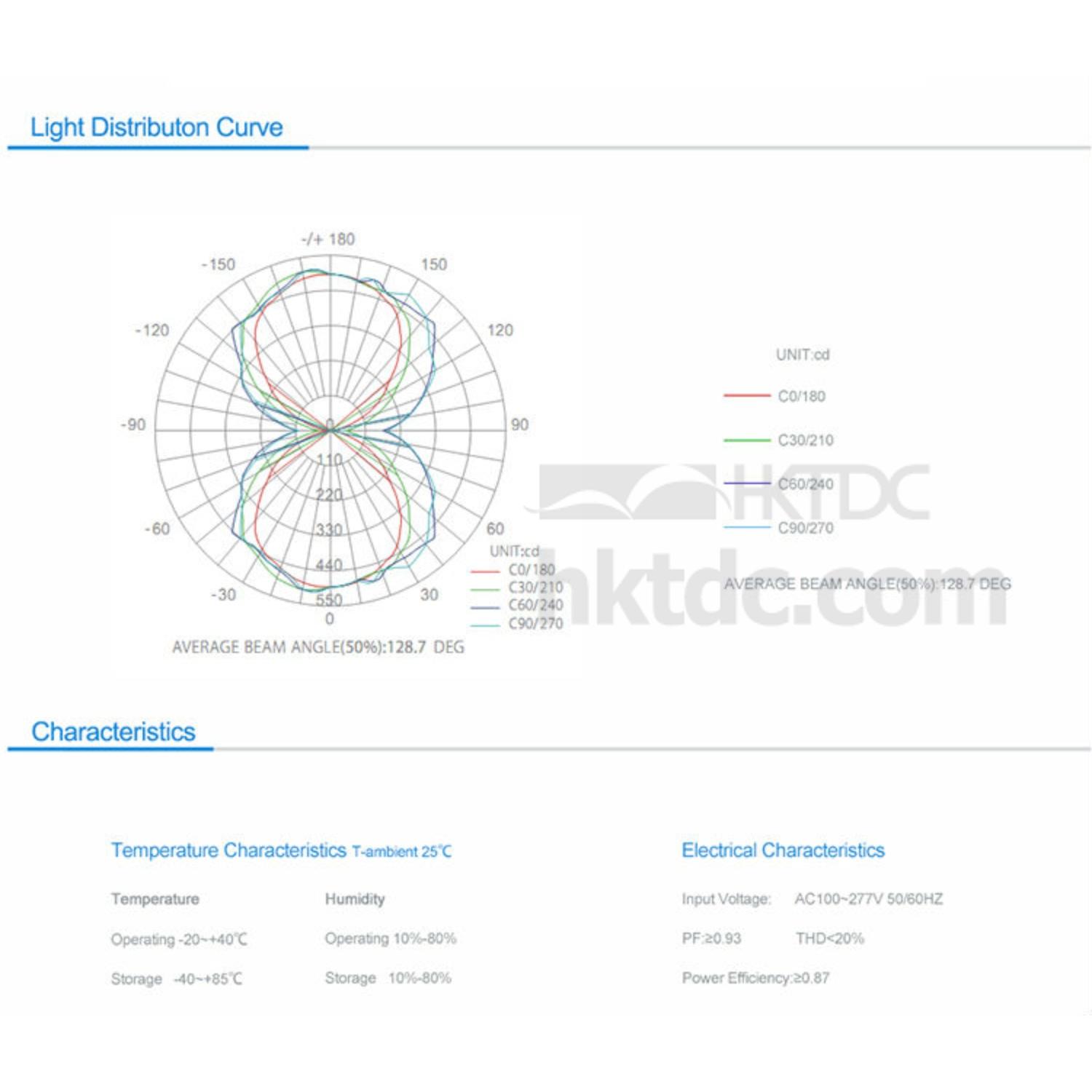

Beam angle: 120°.
Life span: 50,000hours.
Slim cylindrical shaped tube.
With a two-pin connector on the side.
Safe and reliable lighting performance.
With certifications including CE (EMC/LVD); RoHS; TUV; UL, VDE.
Net weight: 368.2g.
Warranty: 5 years.
Packaging: 1piece/box, 50pieces/carton.
Carton measurement: 135 x 48 x 26cm.
Delivery time: 15 days for samples, and 30 days for mass production.
Production capacity: 30,000 piece(s)/month.
