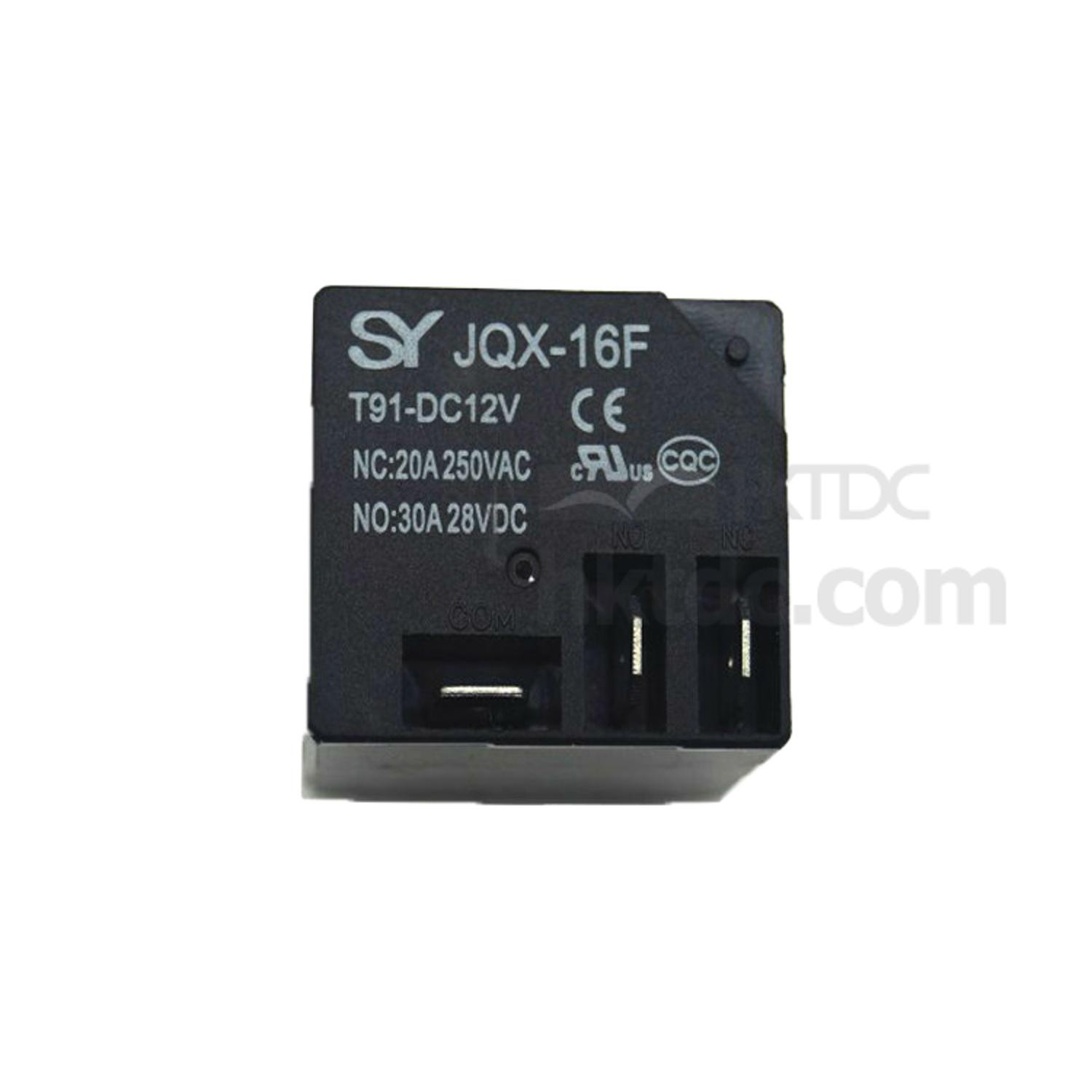

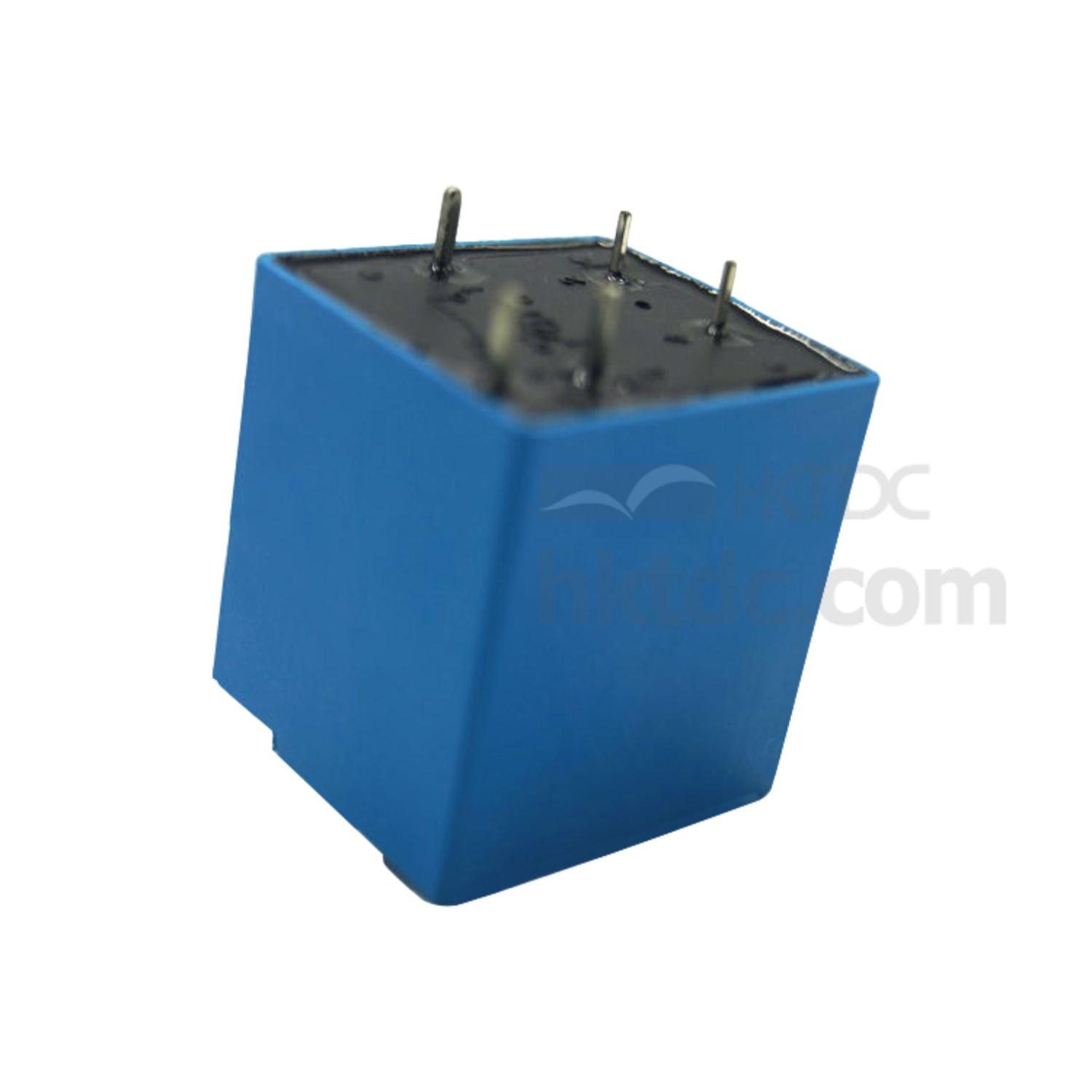

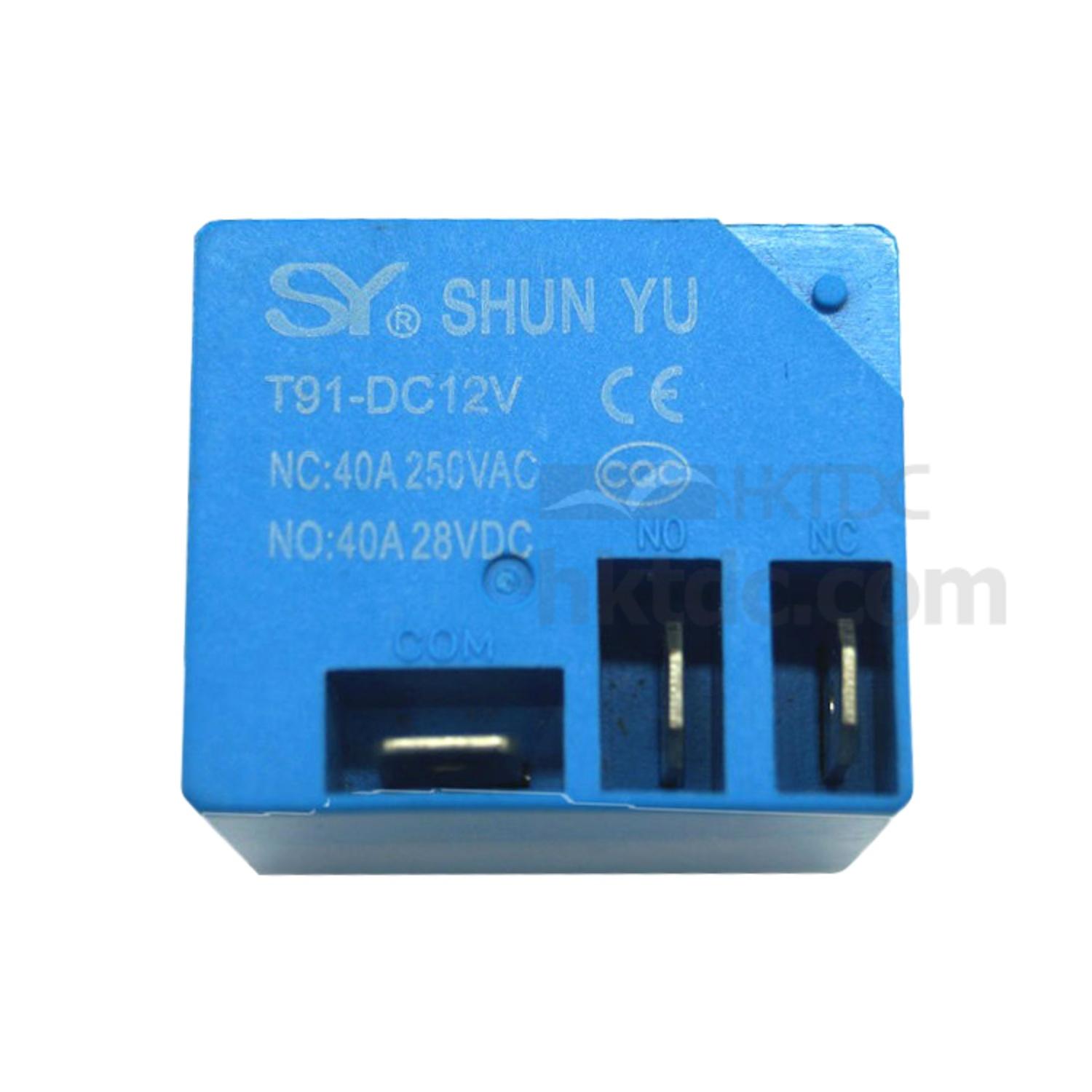

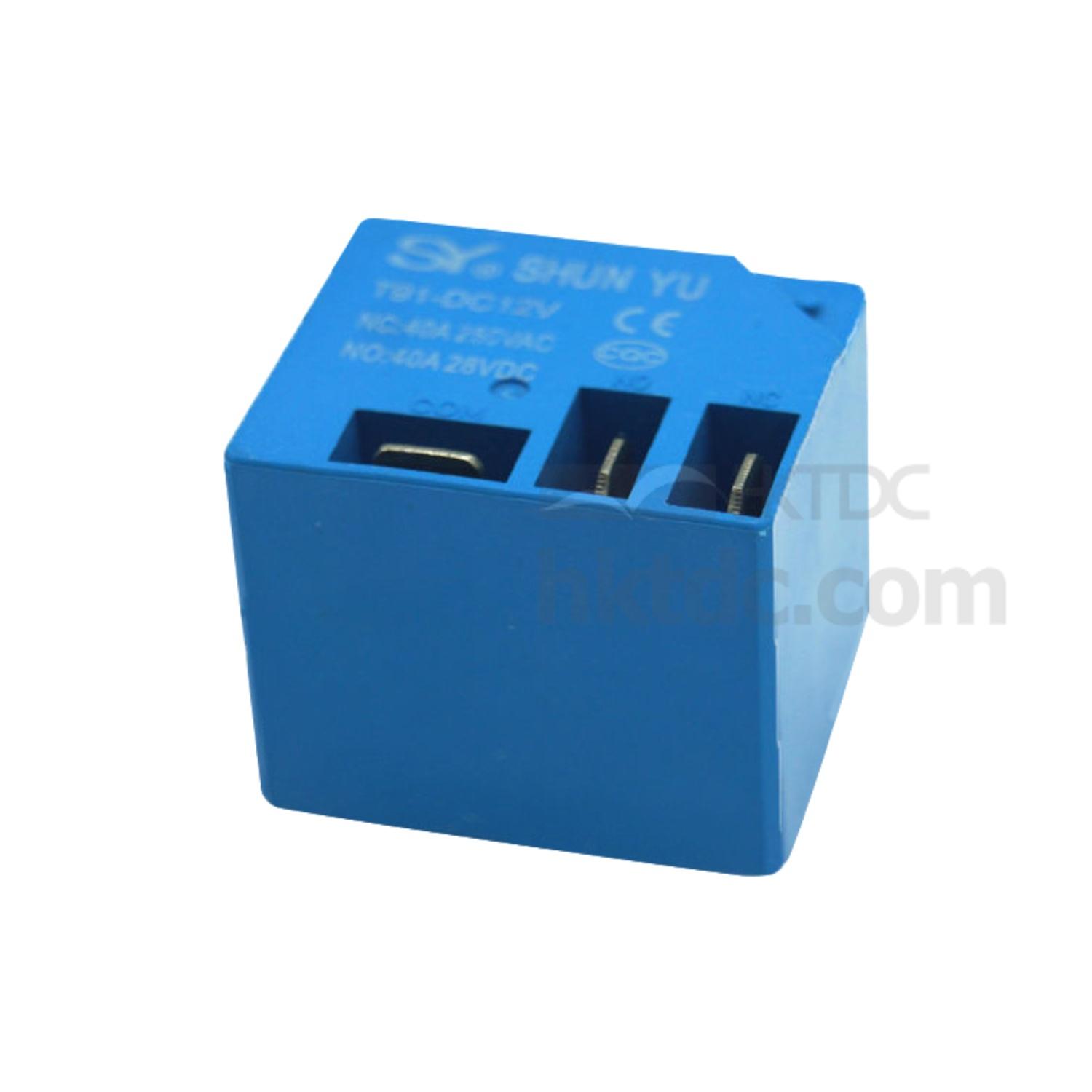

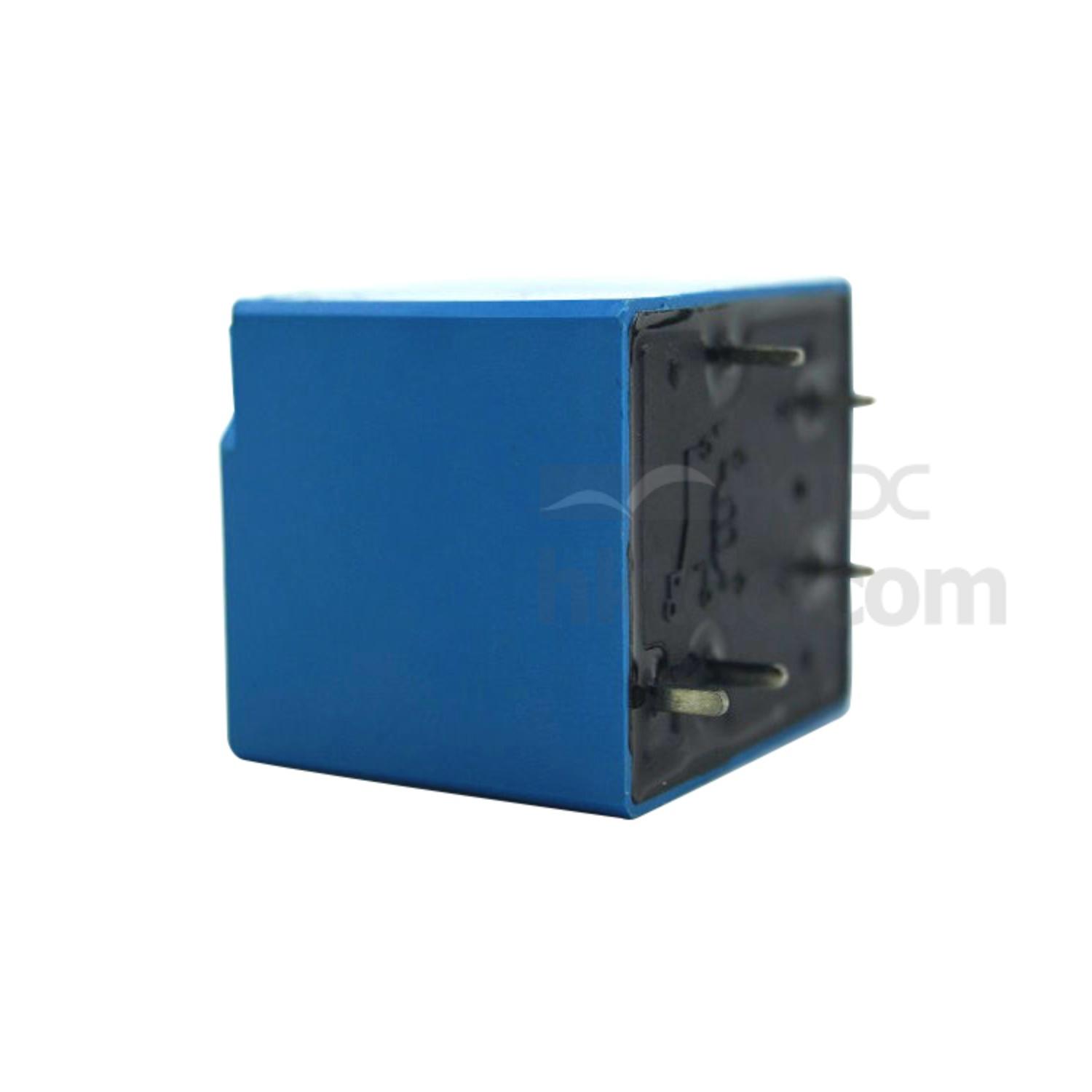

T91 PCB Miniature Relay 220V 30A
Production Lead Time:
3 day(s)
Model No.:
T91
Brand:
SHUNYU
Colour:
Black
Size:
27.5 x 27.8 x 32.4mm
Port:
Guangzhou, Shenzhen
Type of Payment:
T/T, L/C
Minimum Order Quantity:
1.000
Package:
Yes
Customised:
Yes
Contact Load:
Low Power
Protect Feature:
Sealed
Usage:
PCB (Printed Circuit Board)
Size:
Miniature
Description
Contact Supplier
Description
- 产品型号Product Model: JQX-16F/T91
- 触点形式 Contact Form: 1H,1Z,1D
- 接触电阻Contact Resistance: ≤100mΩ(1A 6VDC)
- 触点材料Contact Material: AgCdO AgSnO2
- 触点负载Contact Rating:
- NO:30A 250VAC/30VDC
- NC:20A 250VAC/30VDC
- 绝缘电阻Insulation Resistance: ≥1000mΩ(500VDC)
- 介质耐压Dielectric Strength:
- BCC≥2500VAC1min
- BOC≥1500VAC 1min
- 引出端方式Termination: PCB/Socket
- 吸合/释放时间Operate/release time: ≤15ms/10ms
- 额定线圈功率Rated Coil Power: DC0.9W
