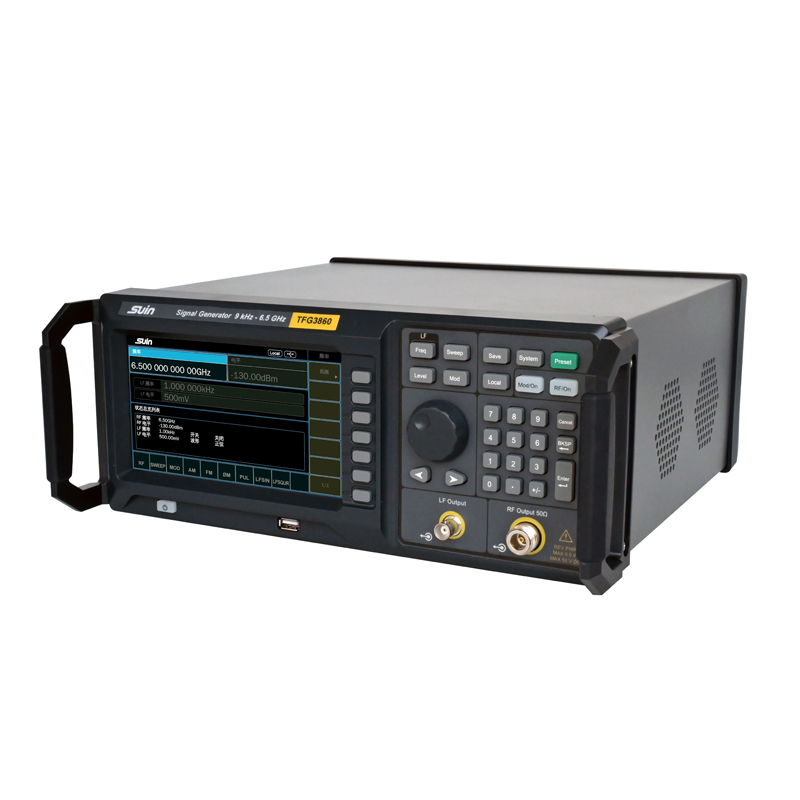

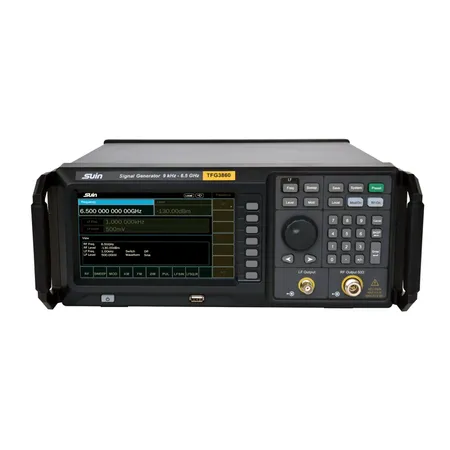

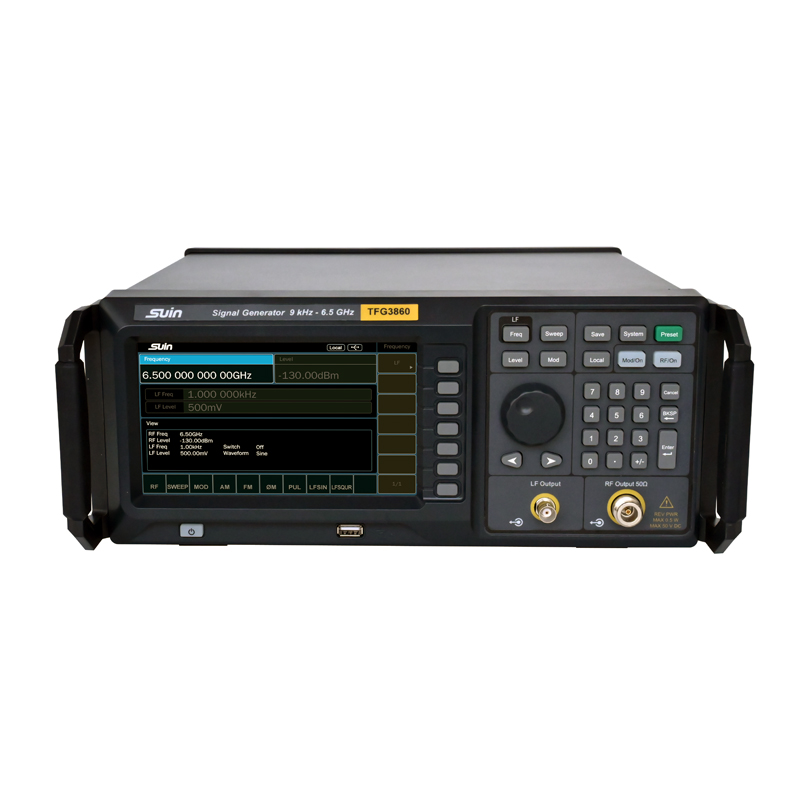

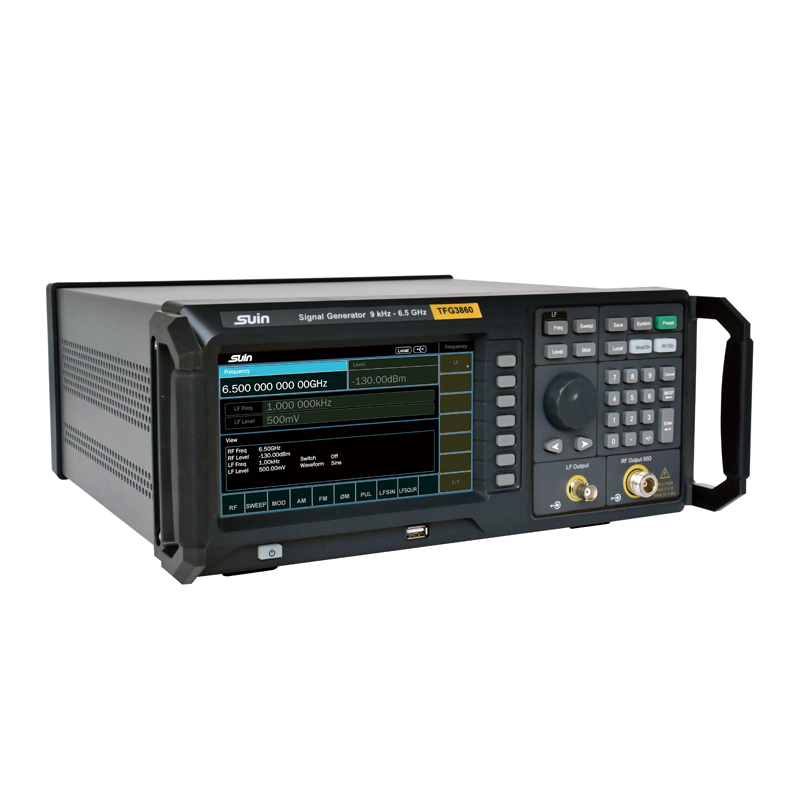

TFG3860 RF Signal Generator
US $7794.00 - US $9743.00
Production Lead Time:
30 day(s)
Shipping Method:
By Express
Brand:
Suin
Size:
364*154*388mm
Weight:
8kg
Frequency Range:
9 kHz~6.5 GHz
Resolution:
0.01 Hz
SSB Phase Noise:
<-110 dBc/Hz @ 20 kHz(typ.)
Output level range:
-130 dBm~+20 dBm
Modulation:
AM, FM, φM, PM
Description
Contact Supplier
Description
Features
Frequency range: 9 kHz~6.5 GHz
0.01 Hz frequency resolution
Maximum output level from -130 dBm to +20 dBm
Level accuracy: ≤0.5 dB(typ.)
Phase noise: <-110 dBc/Hz @20 kHz(typ.)
Provides AM, FM, ΦM and Pulse modulation function (on/off ratio up to 70 dBc)
7 inch TFT capacitive touch screen

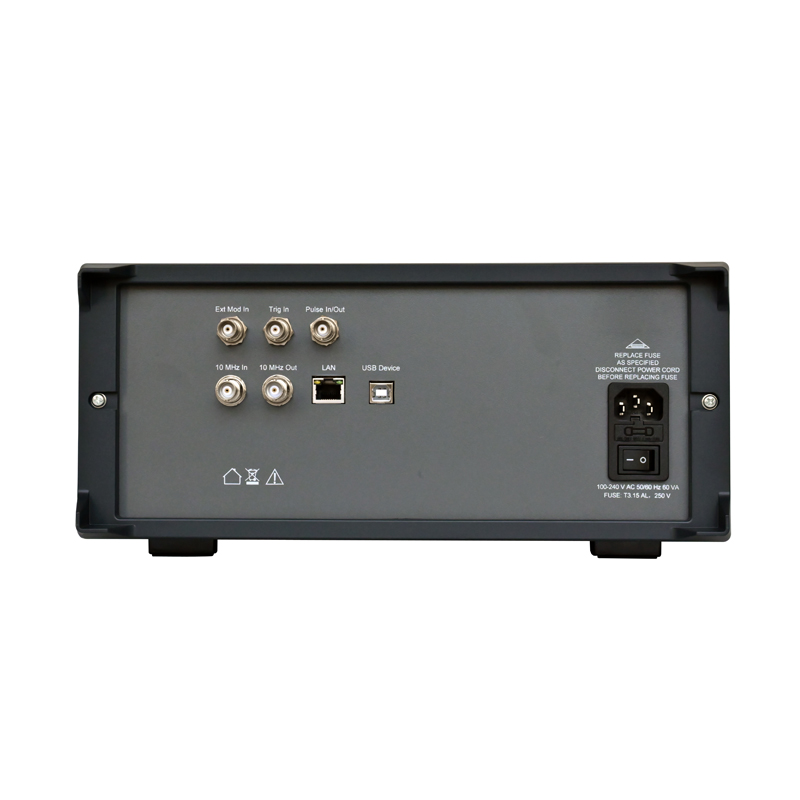

Standard interfaces including USB Host, USB Device, LAN
Specifications
| Frequency | ||
| Range | 9 kHz~6.5 GHz | |
| Resolution | 0.01 Hz | |
| Spectral Purity | ||
| SSB Phase Noise (CW mode, carrier offset=20 kHz, 1 Hz bandwidth) | 100 kHz≤f≤1.6 GHz | <-107dBc/Hz, <-110 dBc/Hz (typ.) |
| 1.6 GHz≤f≤3.6 GHz | <-105dBc/Hz, <-107 dBc/Hz(typ.) | |
| 3.6 GHz<f≤6.5 GHz | <-102dBc/Hz, <-105 dBc/Hz(typ.) | |
| Harmonic | <-30 dBc | |
| Spurious | <-55 dBc | |
| Level | ||
| Output level range | -120 dBm~+13 dBm | |
| Resolution | 0.01 dB | |
| Abosolute Level Uncertainty | ≤0.7 dB(typ.) | |
| Internal Modulation Generator (LF) | ||
| Waveform | Sine/Square | |
| Frequency Range | Sine | DC~200 kHz |
| Square | DC~20 kHz | |
| Frequency Resolution | 0.01 Hz | |
| Voltage Range | AC | 0~3 V |
| DC | -3 V~3 V | |
| Voltage Resolution | 2 mV | |
| Sweep | ||
| Function | Frequency Sweep, Level Sweep | |
| Sweep type | Step sweep(equally spaced level steps) | |
| List sweep(list with arbitrary level steps) | ||
| Sweep mode | Single, continuous | |
| Sweep range | Full frequency range, Full level range | |
| Modulation | ||
| Type | AM, FM, ΦM, Pulse Mod. | |
| General Characteristics | ||
| Power | AC 100 V~240 V, 50/60 Hz(1±10%), 60 VA | |
| Dimension & Weight | 364*154*388mm, 8kg | |
Packing List
TFG3860 RF Signal Generator 1
Power cord 1
CD (User’s Guide + PC software ) 1
BNC connector 1
