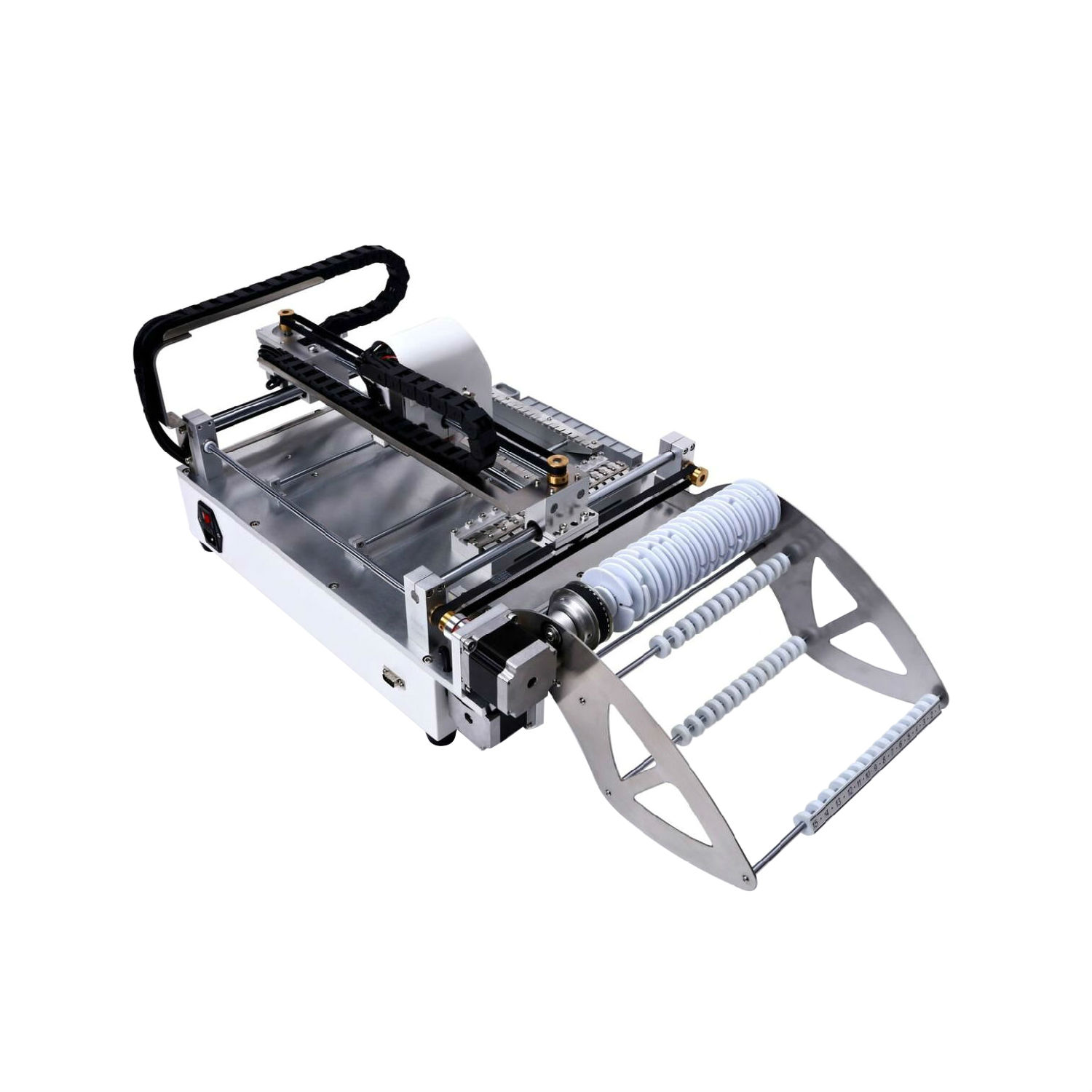

TM220A Desktop Pick and Place Machine 37 Feeders
Production Lead Time:
2 day(s)
Brand:
NeoDen
Port:
Shanghai
Type of Payment:
Paypal
Minimum Order Quantity:
1
Description
Contact Supplier
Description
Specification
- Version
- TM220A
- Applicable PCB
- 20mm*20mm~220mm*200mm
- Placement head quantity
- 2
- Max mounting capability
- 6000CPH
- Positioning accuracy
- ±0.025mm
- Applicable Components
- 0402-5050,SOP, QFN, IC
- Components supply configuration
- Tape reel, bulk package (IC)
- Tape width
- 8mm, 12mm, 16mm
- Feeders
- 16 (12*8mm, 2*12mm, 1*16mm,1* bulk IC)
- External Dimension
- L 830mm×W 455mm×H 285mm
- Vacuum pump
- -92KPA (Mute type pump)
- Vacuum pump quantity
- 2 (Built-in)
- Power supply
- 220V, 50Hz (Convertible to 110V)
- Average working power
- 100W
- Weight
- G.W: 45KG (N.W: 25KG)
- Packing size
- L 101cm×W 61cm×H 48cm
