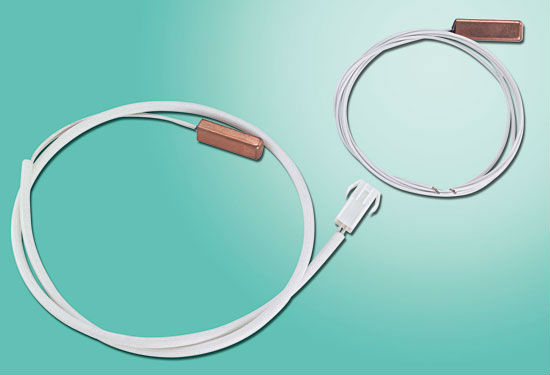

TP1 Exhaust Temperature Controller
Production Lead Time:
10 day(s)
Model No.:
TP1
Brand:
HXPEE
Colour:
Copper Red
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
1.Rated voltage: AC250V 2.Nominal current: 1.6A (COSФ=1.0) 3.Fixed break-off temperature: 130℃±6℃ 4.Fixed replacement temperature: 100℃±15℃ 5.Electronic contact life: Under rated voltage and electric current load by 1 /2min above cyclic action 10,000 6.Dielectric resistance: Exerts AC220V between the belt part and the unusual electricity part, after 10min should be bigger than 100M with the DC500V megameter survey Omega 7.Electric appliance intensity: Exerts AC1500V in the charged part with the non- charged part between, after 1min should not appear penetrates or glitters. 8. The wire riveted joint is good, be able to withstand 40N pulling force 10S.
