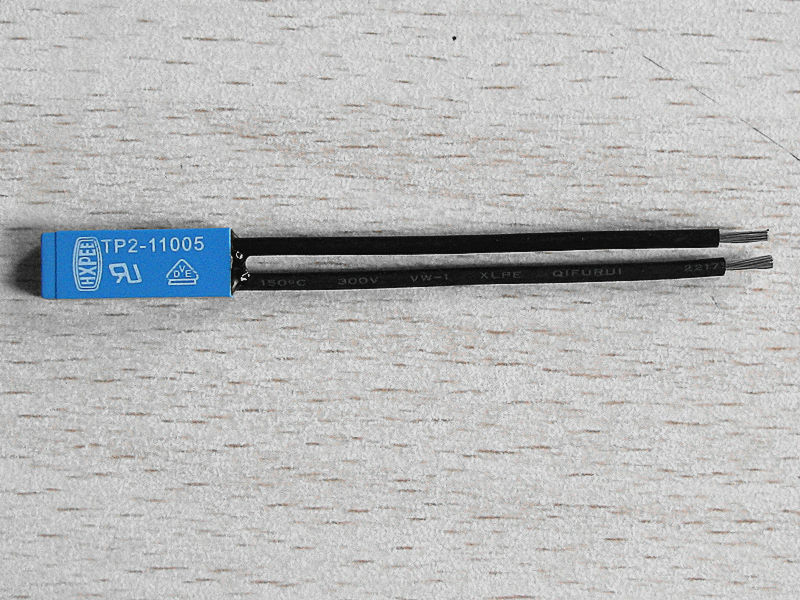

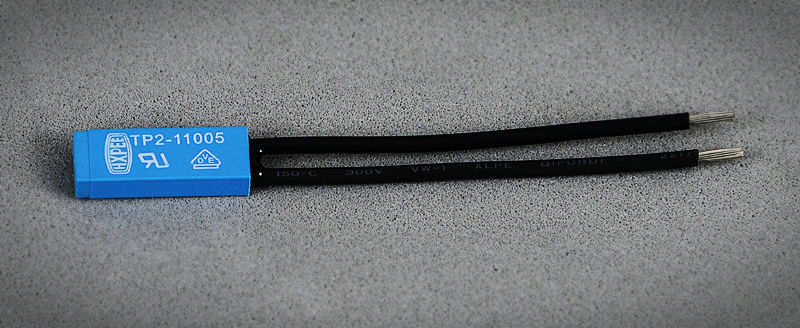

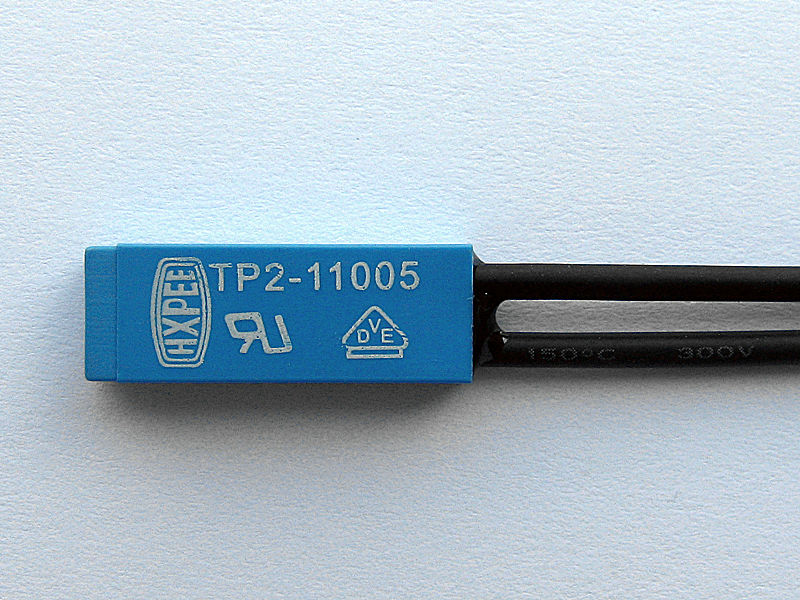

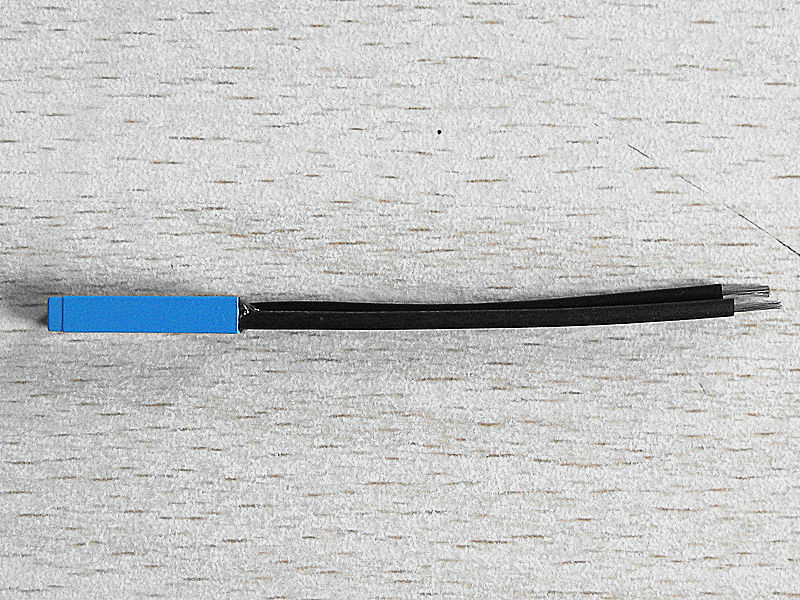

TP2 Series Thermostat
Production Lead Time:
7 - 15 day(s)
Brand:
HXPEE
Colour:
Blue
Size:
L18.5*W6.7*H3.6 mm
Type of Payment:
T/T Before Shipment
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
APPLICATIONS:
The TP2 Series thermostat manufactured by Hengxin Precision Electrical Equipment Co., Ltd., is specifically designed for fractional horsepower motor, fluorescent ballasts, and so on.
SPECIAL FEATURES:
*Miniature size: L18.5*W6.7*H3.6 mm, wire length = 50mm
*With high grade thermoplastic insulated case
*It is configured in a compact design
*With superior heat response and quick response, making the tool generate more efficiently.
TECHNICAL PARAMETERS:
*Rated voltage: AC 250V / 125V (50/60Hz)
*Rated current: 6A /12A
*Rated open temperature range: 45~140℃, in steps of 5℃
*Contact type: Normally Closed & Normally Open
*It is with plastic housing and epoxy sealing.
*Authentication certificate: UL, VDE
The TP2 Series thermostat manufactured by Hengxin Precision Electrical Equipment Co., Ltd., is specifically designed for fractional horsepower motor, fluorescent ballasts, and so on.
SPECIAL FEATURES:
*Miniature size: L18.5*W6.7*H3.6 mm, wire length = 50mm
*With high grade thermoplastic insulated case
*It is configured in a compact design
*With superior heat response and quick response, making the tool generate more efficiently.
TECHNICAL PARAMETERS:
*Rated voltage: AC 250V / 125V (50/60Hz)
*Rated current: 6A /12A
*Rated open temperature range: 45~140℃, in steps of 5℃
*Contact type: Normally Closed & Normally Open
*It is with plastic housing and epoxy sealing.
*Authentication certificate: UL, VDE
