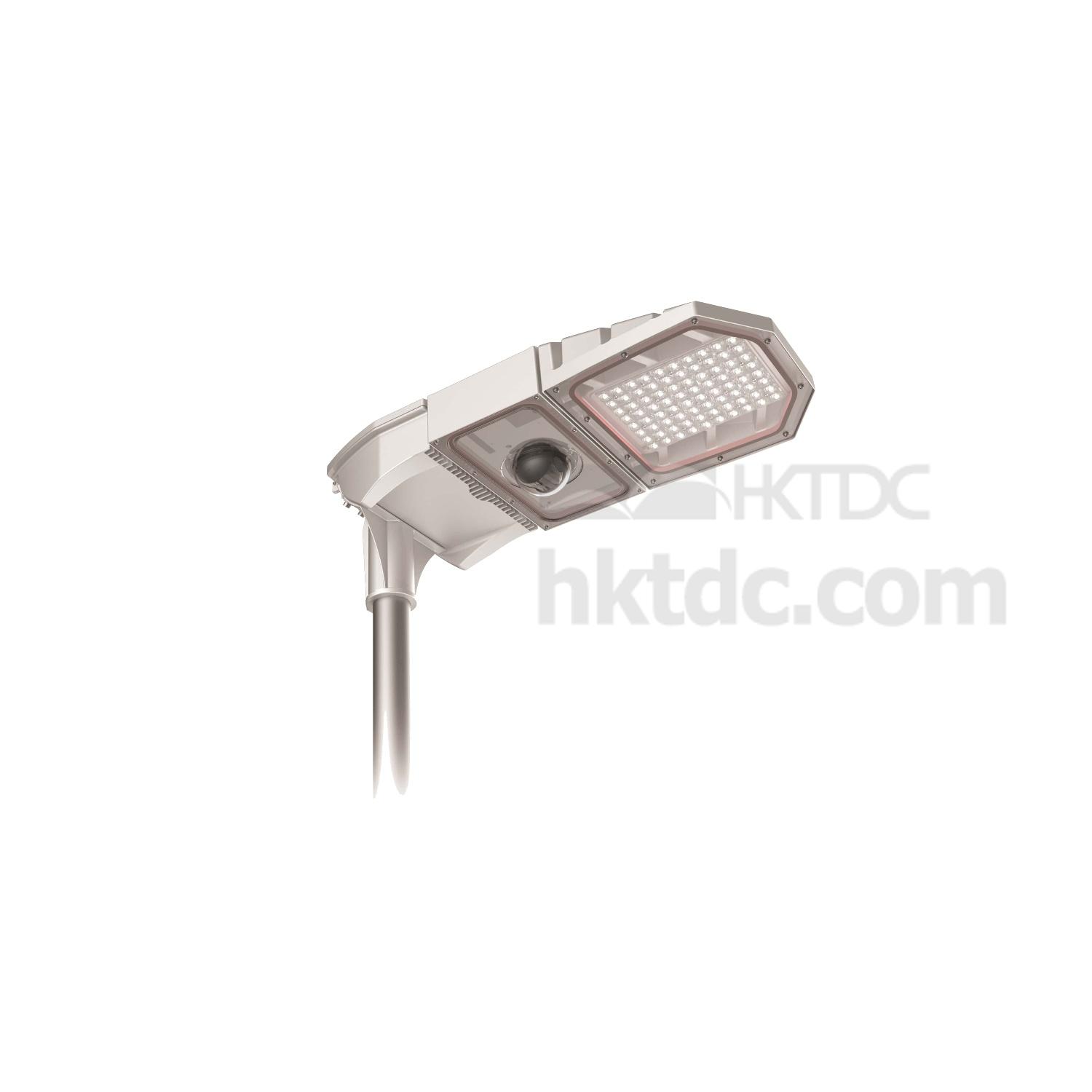

TRIMAX

Model No.:

TRIMAX R3

Brand:

NIKKON

Type of Payment:

T/T in advance, irrevocable L/C at sight

Minimum Order Quantity:

No MOQ

Voltage(V):

220 ~ 240

Certification:

CE, FCC, UL

Body Material:

Marine Grade Aluminium Die Cast

Protection Level:

IP66

Description

Contact Supplier

Luminaire Technical Data
- System Power: 75W, 105W, 150W, 200W & 250W
- Enclosure Material: Marine Grade Aluminium Die Cast
- High Transparency Tempered Glass
- Gasket Material: Silicone Rubber
- Fitting Color: RAL9006 Durable Polyester Epoxy
- Powder Coating
- Operating Temperature: -30 ~ +50°C
- Input Voltage: 220 ~ 240 Vac 50 / 60 Hz
- Surge Protection Device (SPD): 10kV, 20kA
- Insulation Classification: Class I, Class II on Request
- Ingress Protection: IP66
- Spigot Mounting: 0-10° Tilting
- ø60mm Post Top / Side Entry
- ø76mm Post Top / Side Entry
LED Module Specifications
- LED Source: 5050
- CCT: 3000K / 4000K / 5000K
- Lumen: >145 lm / watt
- CRI: Min 70
- Life Cycle: 65,000 hrs
- Lens: Type I, Type II or Type III (94% Efficiency)
Compliance
- LED: LM 80, RoHS
- LED Driver:
  - CE, EN55015, EN61000, EN61547, EN62493, EN61347, EN50581, EN62384
- Luminaire: LM79, EN60598-1, EN60598-2-3, EN62471, EN61000, EN61547, EN62493, EN55015, CISPR 15,IEC62722
- SPD: IEC61643, UL, RoHS
iLCS LCU
- 240V / 50Hz
- Frequency: 2.4 GHz
- Standard: IEEE 802.15.4
- Relay Embedded: Max. Load 1000W
- Metering Embedded
- GPS Embedded
- Autonomous Redundancy
- UV-Stabilized Plastic Enclosure
- 0–10V / DALI Dimming Interface
5.) IP PTZ Camera
- 5 MP with 1080P Full HD
- Day and Night Mode
- 10x Zoom Lens with F4.9 - 49mm / F1.8 - 3.0, DC Iris, Auto Focus
- Basic WDR (74dB)
- 30 fps at 1920 x 1080
- Pan and Tilt
- Approval:
  - CE (EN 55022 Class B, EN 55024)
  - FCC (Part 15 Subpart B Class 13)
  - NEMA 4x
  - UL Listed (UL 60950-1)
