TS500B 5.1 Soundbar,Powered Sound bar with 8" Separate Subwoofer
Production Lead Time:
55 day(s)
Model No.:
TS500B
Brand:
OEM
Colour:
Black and White
Size:
Box - Main Unit 1250 x 180 x 180 mm / 6.5 kg;Box - Subwoofer 335 x 335 x 335 mm / 7kg
Port:
Shenzhen Yantian Port
Type of Payment:
TT 30% Deposit, 70% Balance pay by before delivery
Minimum Order Quantity:
500 set
Package:
Yes
Customised:
Yes
Special Features:
Wireless
Use:
Home Theatre
Channels:
5.1
Description
Contact Supplier
Description

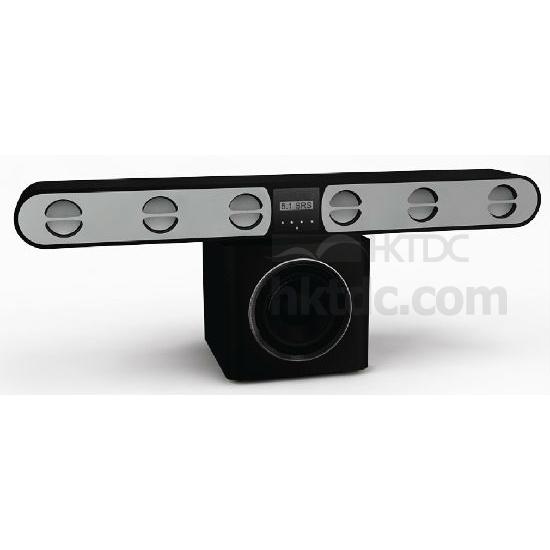

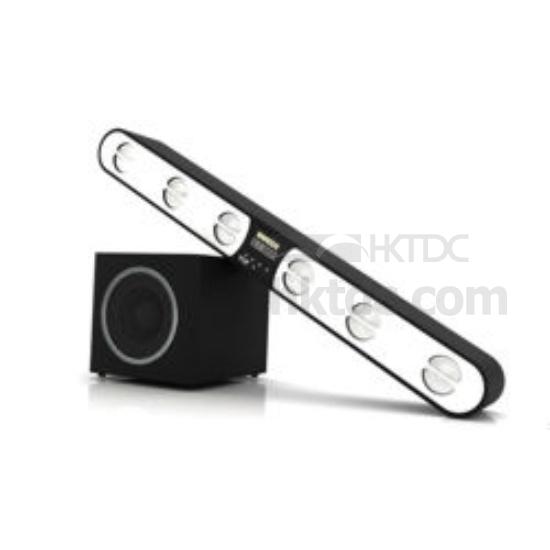

TS500B 5.1 Soundbar
Powered Sound bar with 8" separate subwoofer
If you want to improve on the sound of your flat panel TV and would like
home theater sound quality, but just don’t have the space, a sound bar
is a great solution!
Not only is it super slim so it perfectly matches your flat screen whether
it’s on furniture or mounted on wall, it’s packed with convenient features
to enhance the listening experience.
Amplifier
Rated Output Power 80W+40W
Frequency Response 30 - 16000 Hz, -3dB
Signal to Noise Ratio >75dB
AUX1-3 Input 1.0V RMS 20kohm
Coaxial Input 0.5V RMS 75ohm
Total Harmonic Distortion <1%
L/R Speakers
Speaker Impedance 3 inch speakers 8ohm
Sensitivity >82dB/m/W
Subwoofer
Speaker Impedance 4ohm
Speaker Driver 6.5 inch subwoofer + 1 passive subwoofer
Sensitivity >78dB/m/W
Dimension / Weight W x H x D / KG
Main Unit 960 x 105 x 97 mm / 4.5 kg
Subwoofer 265 x 265 x 265 mm / 6 kg
Box - Main Unit 1250 x 180 x 180 mm / 6.5 kg
Box - Subwoofer 335 x 335 x 335 mm / 7kg
General Information
AC Power Adapter 100-240V ~ 50/60Hz
DC Power input 24V 5A
Operation Power Consumption <80W
Standby Power Consumption <1W
TruSurround HD4, SRS and the symbol are trademarks of SRS Labs, Inc. TruSurround HD4 technology is incorporated under license from SRS Labs, Inc.
is a trademark of SRS Labs, Inc. TruSurround HD4 technology is incorporated under license from SRS Labs, Inc.
Powered Sound bar with 8" separate subwoofer
If you want to improve on the sound of your flat panel TV and would like
home theater sound quality, but just don’t have the space, a sound bar
is a great solution!
Not only is it super slim so it perfectly matches your flat screen whether
it’s on furniture or mounted on wall, it’s packed with convenient features
to enhance the listening experience.
Amplifier
Rated Output Power 80W+40W
Frequency Response 30 - 16000 Hz, -3dB
Signal to Noise Ratio >75dB
AUX1-3 Input 1.0V RMS 20kohm
Coaxial Input 0.5V RMS 75ohm
Total Harmonic Distortion <1%
L/R Speakers
Speaker Impedance 3 inch speakers 8ohm
Sensitivity >82dB/m/W
Subwoofer
Speaker Impedance 4ohm
Speaker Driver 6.5 inch subwoofer + 1 passive subwoofer
Sensitivity >78dB/m/W
Dimension / Weight W x H x D / KG
Main Unit 960 x 105 x 97 mm / 4.5 kg
Subwoofer 265 x 265 x 265 mm / 6 kg
Box - Main Unit 1250 x 180 x 180 mm / 6.5 kg
Box - Subwoofer 335 x 335 x 335 mm / 7kg
General Information
AC Power Adapter 100-240V ~ 50/60Hz
DC Power input 24V 5A
Operation Power Consumption <80W
Standby Power Consumption <1W
TruSurround HD4, SRS and the symbol are trademarks of SRS Labs, Inc. TruSurround HD4 technology is incorporated under license from SRS Labs, Inc.
is a trademark of SRS Labs, Inc. TruSurround HD4 technology is incorporated under license from SRS Labs, Inc.
