TSX 2016 SMD Crystal 19.2MHz-76.8MHz Xtal

Brand:

JGHC晶光华

Customised:

Yes

Model No.:

T21

Size:

2.0x1.6x0.8mm

Nominal Frequency:

19.2-76.8MHz

Load Capacitance:

20pF or specif

Frequency Difference:

±20ppm or specif

Email:

alan@jghcrystal.com

Website:

www.jghcorp.com

Description

Contact Supplier

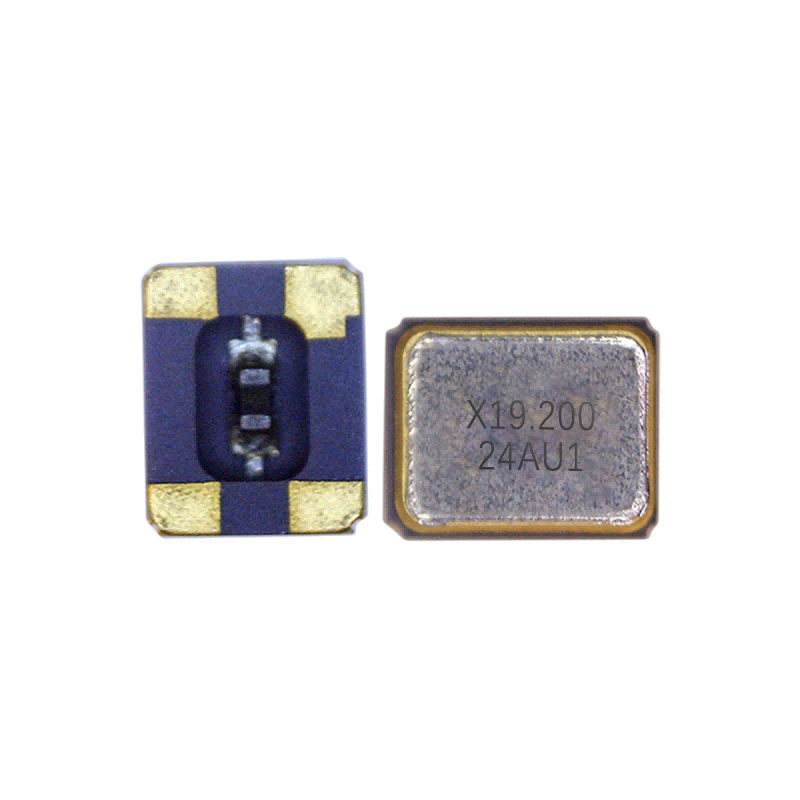

SMD 2016 Seam Temperature Sensing Crystal 2.0x1.6x0.8mm T21 Series

Our Temperature Sensing TSX Crystal provide better frequency stability and higher reliability for diverse mobile

communication and harsh automotive applications.

Features

High precision and high frequency stability；

Excellent thermal coupling between thermistor and crystal；

Application in mobile communications

RoHS Compliant / Pb Free

Crystals specifications

ITEMS/TYPE	T21
Frequency Range	19.2~76.8MHz
Load Capacitance	12pF, or specify
Frequency Tolerance (at 25 ℃)	±10 ppm, or specify
Frequency Stability Over Operating Temperature Range	±10 ppm, or specify
Operating Temperature Range	-40~+85℃, or specify
Shunt Capacitance (C0)	3pF Max.
Drive Level	1~200μW (50μW typical )
Aging (at 25 ℃)	± 1 ppm / year Max.
Storage Temperature Range	-40~ + 105 ℃
Thermistor Resistance (25℃)	100kΩ , or specify
Thermistor B-constant (25~50℃)	4250, or specify
