• Material: plastic (end cap).

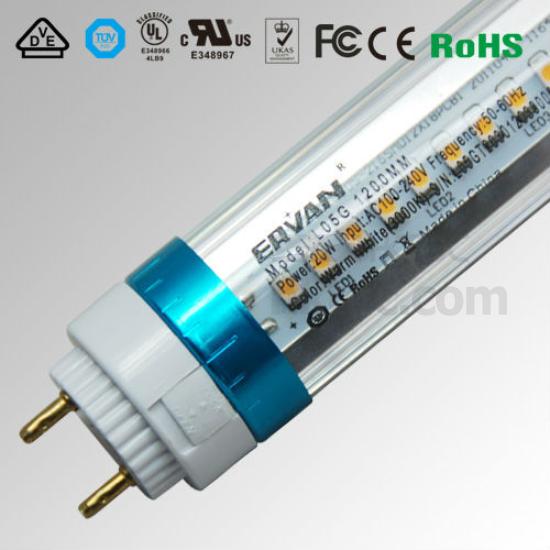

• Instant-on quality LED tube with lockable rotating end caps and blue shining ring.
• Popular LED tube for the replacement of all traditional tubes.

Advantage:

• With lockable rotating end cap.
• LED's maintain flux is up to 7.5lm/W.
• Significant energy savings.
• Maintenance free.
• Mercury free.
• Superior light quality.
• Wide input: AC 100-240V.
• Shock/vibration resistant.
• Plastic end caps ensure to pass 4000V hi-pot test.
• Special circuit design, each LED work separately, avoiding the single broken LED influence problem.
• Isolated power supply.
• European safety wired.
• Saving 70% on energy costs.

Model power, dimension (mm), LED qty:

• L05G 11W, 26 x 588 (2ft), 108pcs.
• L05G 20W, 26 x 1198 (4ft), 216pcs.
• L05G 24W, 26 x 1498 (5ft), 240pcs.

Luminous (frosted lens), (clear lens):

• 1000lm±10%, 1100±10%.
• 2000lm±10%, 2200lm±10%.
• 2400lm±10%, 2600lm±10%.
• Operation: temperature: -20°C to 40°C.
• Voltage: AC 100V-240V.
• Frequency: 50Hz/60Hz.
• Power factor: >0.95.
• Power supply efficiency: >90%.

Photometric specifications:

• LED luminous efficiency: up to 100lm/W.
• CRL: Ra: >70/80.
• CCT: warm white: 3000K, daylight white: 4000K, pure white: 5500K, cold white: 6500K.

Mechanical specifications:

• Light distribution: 120°.
• Isolate power supply.
• Latest lockable rotating end cap.
• Clear/frosted cover is available.
• Weight: 588mm/210g, 1198mm/368.2g, 1498mm/443.8g.
• Can be placed in conventional T8 or T9 fluorescent brackets and replace fluorescent tubes (remove ballast and starter before replacement).

Length, qty/box, inner box size (cm):

• 0.6M, 25pcs, 72 x 24 x 24.
• 1.2m, 25pcs, 133 x 24 x 24.
• 1.5m, 25pcs, 163 x 24 x 24.

Qty/carton, carton size (cm), volume weight:

• 50pcs, 74 x 48 x 26, 18.5kg.
• 50pcs, 135 x 48 x 26, 34kg.
• 50pcs, 165 x 48 x 26, 41kg.

Applications:

• Replacement for conventional fluorescent tubes.
• Hotels/factories/warehouses/offices/buildings.
• Schools/colleges/hospitals.
• Supermarkets/subways.
• Railway stations/airports, etc.

Installation:

• Note: make sure the power is turned off before installation.
• When the LED tube is replaced in a standard fluorescent tube batten, the starter must be removed, and replaced by the enclosed fuse.
• Attention: only suitable for magnetic ballast, not electronic ballast.
• Electronic ballast must be by-passed by a registered electrician.

Warranty:

• 3 years since the date of purchase.
