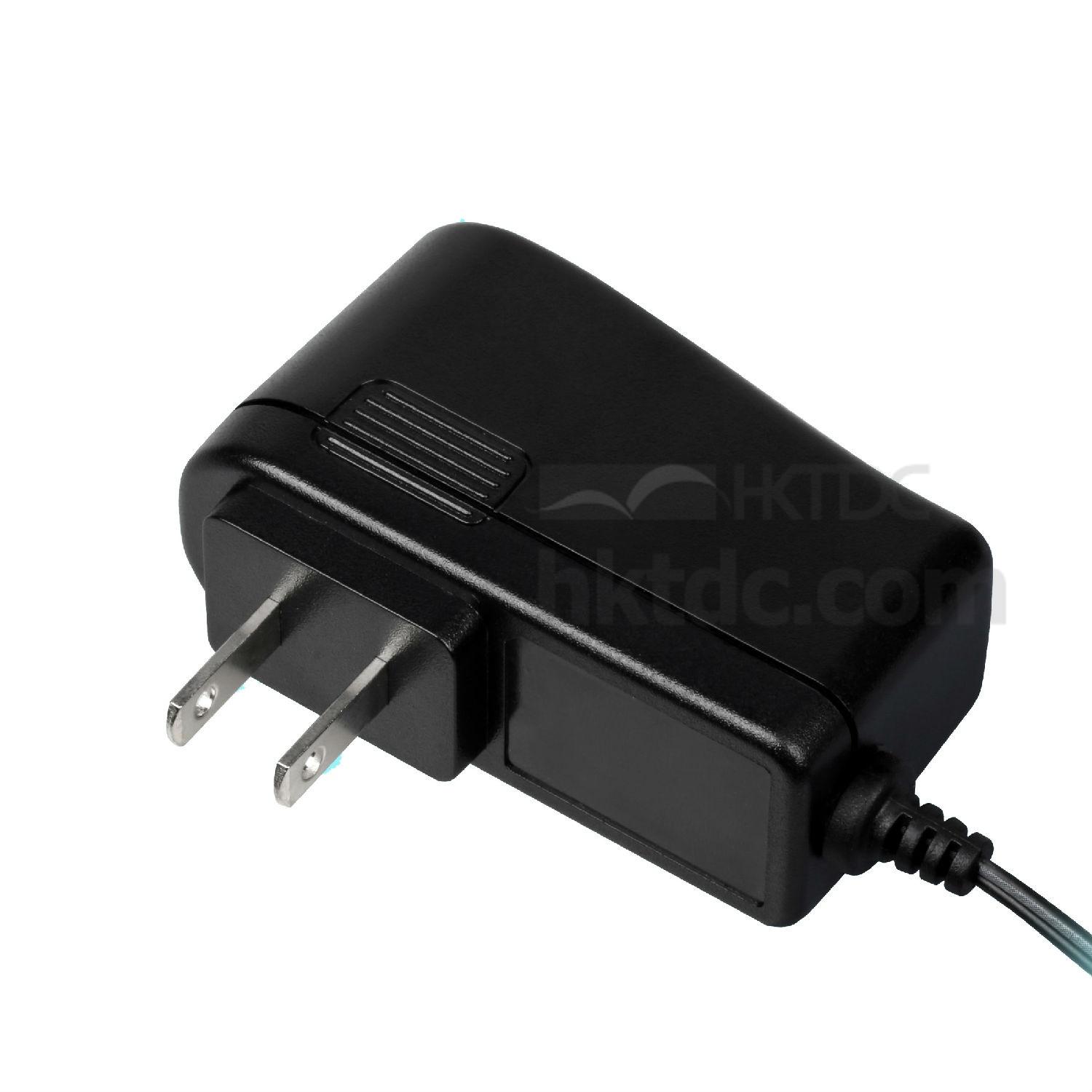

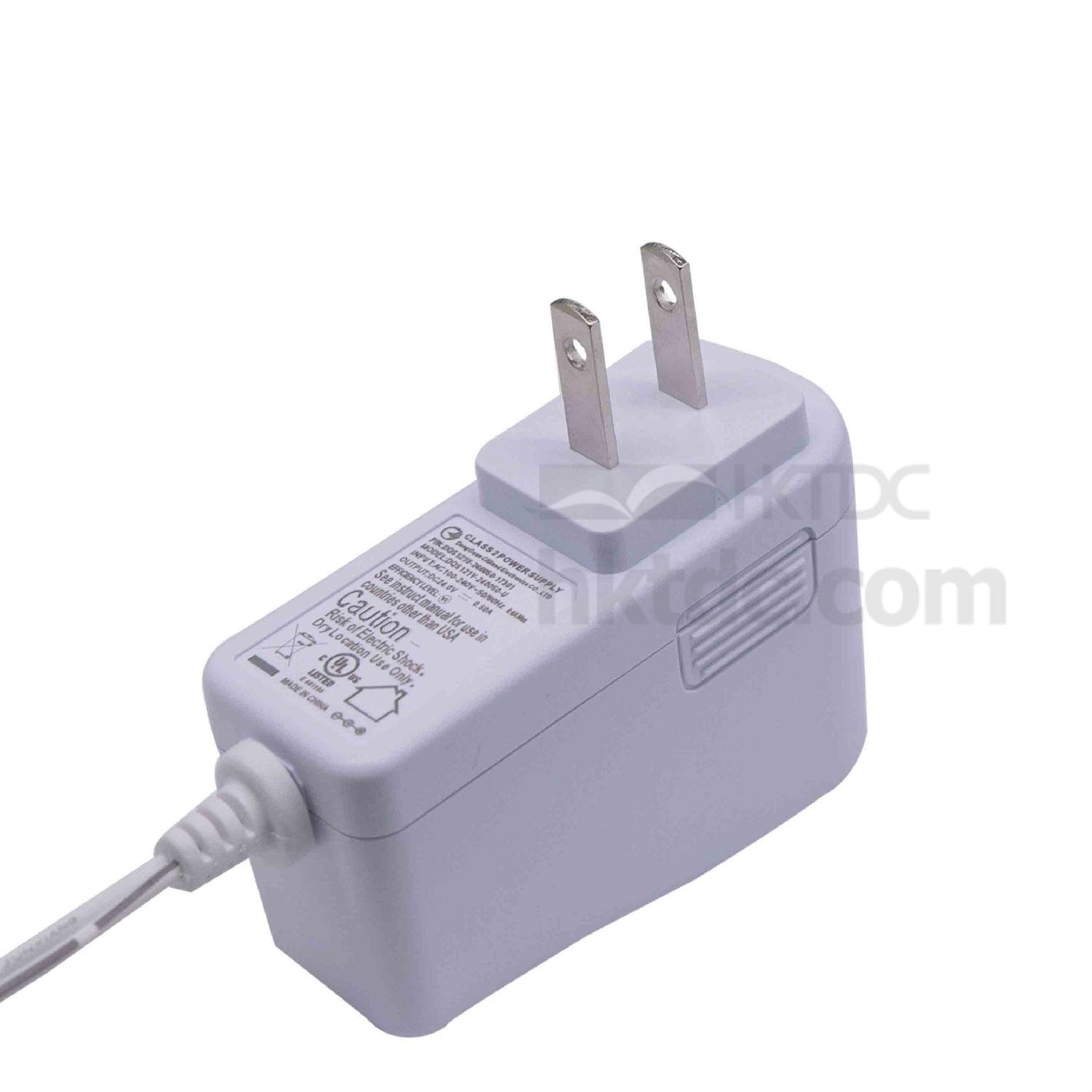

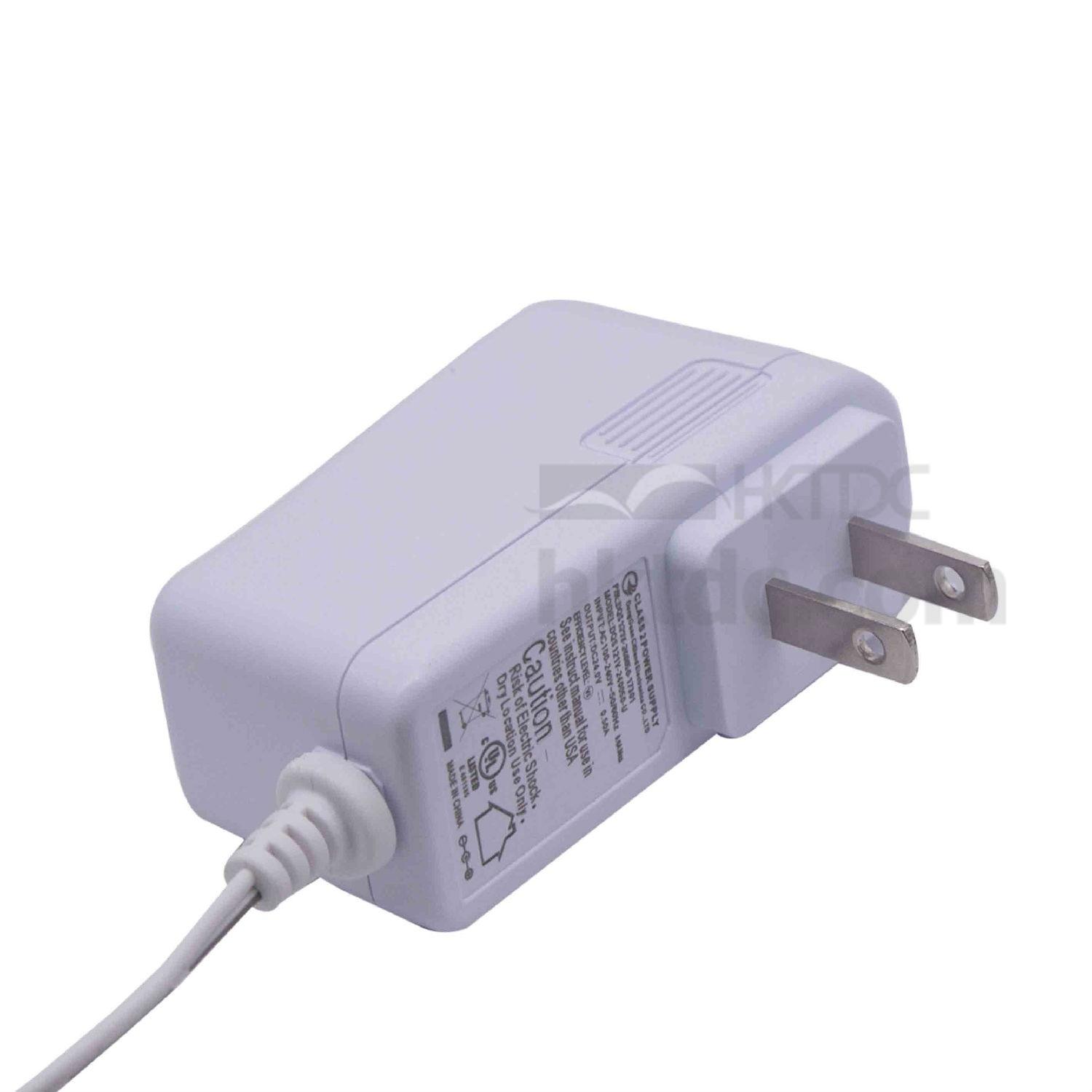

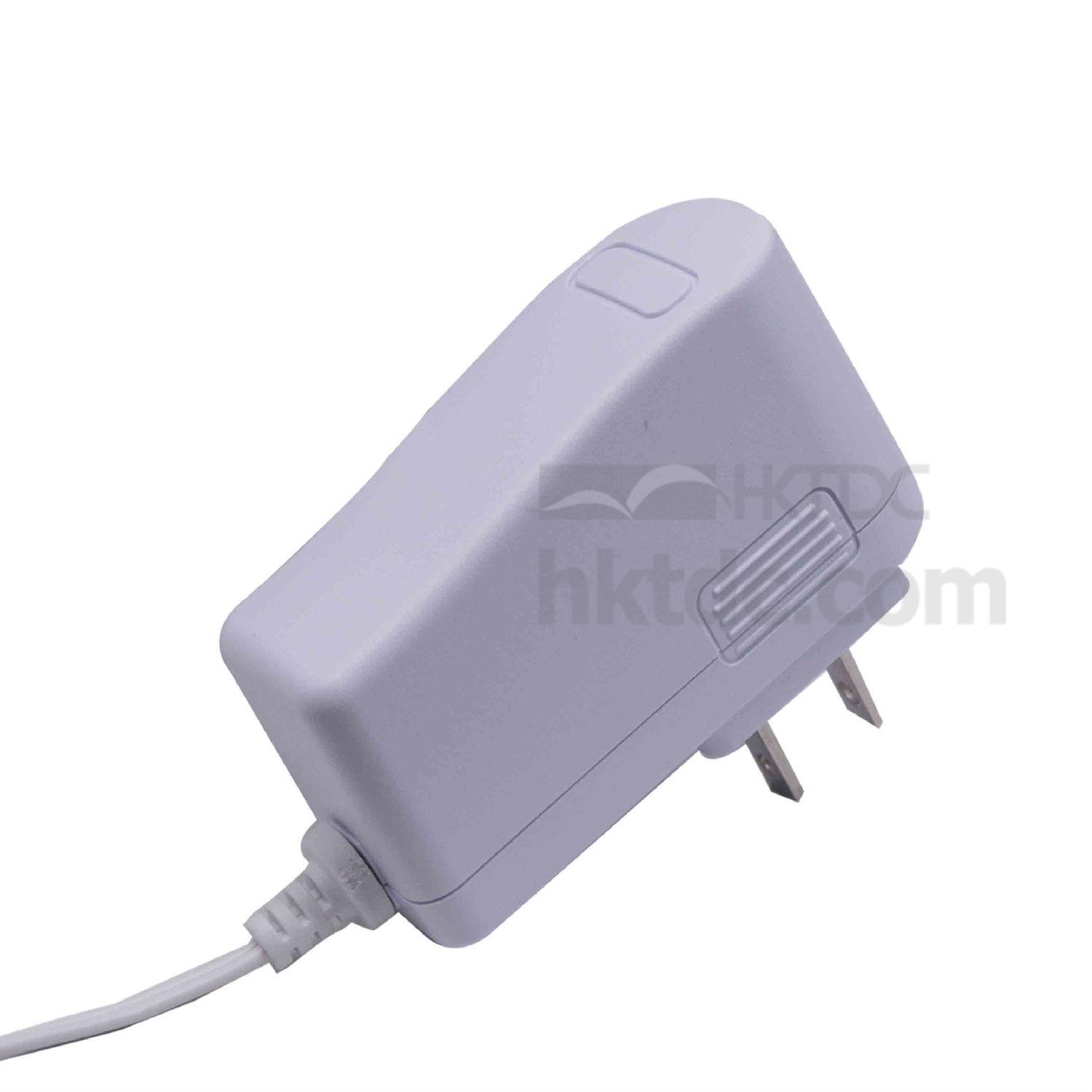

5V2A UL TV box Power Adapter AC/DC adapter with CB CE EMC LVD test certification

• 1. Input voltage: 100-240V AC, 50/60Hz
• 2. Input voltage range: 90V-264V AC
• 3. Input voltage frequency: 47-63Hz
• 4. Output voltage: 5V
• 5. Output current: 2A
• 6. Output ripple and noise: 100Mvpp at full road with 20MHz bandwidth
• 7. Output voltage adjustable rate: 5%
• 8. No-load power consumption: <0.15W
• 9. Energy efficiency standard: level VI
• 10 .Transistor connecting method: Single-ended type
• 11. Turn on delay time: <3S (AC: 110V and full load)

 Features:

• 1. High efficiency and low operation temperature
• 2. AC input power suitable for the world
• 3. Soft-start current can reduce the AC input impact efficiency
• 4. With short-circuit and overload protection
• 5. Compact size, light weight
• 6. 100% full-load burning test
• 7. Installed with EMI filter, minimum wave

 Safety specifications:

• 1. Universal input: 100-240V AC, 50/60Hz
• 2. Over voltage protection: 120% min
• 3. Over current protection: 120% min
• 4. Over protection
• 5. Short-circuit protection: automatic recovery ­
• 6. Load regulation: ±5%
• 7. Green circuit design
• 8. High efficiency

Our services:

• 1. Your inquiry will be replied in 24 hours
• 2. OEM and ODM can be offered
• 3.  All your design and private information will be protected
