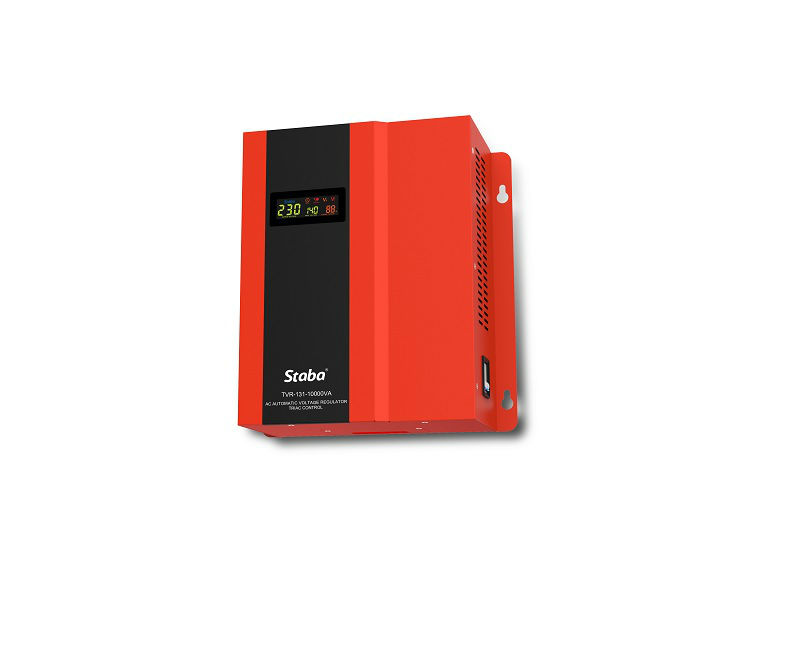

TVR-131 Wall Mount
Input Voltage:
140-270V, 100-270V
Output Voltage:
220V, 230V
Description
Contact Supplier
Description
- Technology: Solid state relay (Triac) tap change + Zero cross transfer technology
- Response Time: < 50ms
- Material of Front Panel: Plastic
- Material of Cabinet: Metal
- Input Voltage: 140-270V / 100-270V
- Input Frequency: 45-65Hz
- Output:
- Rated Output Voltage: 220V / 230V
- Output Voltage Range: ±4% / ±10%
- Output Frequency: Same as input frequency
- Green LED: Power On
- Yellow LED: Delaying (Output is being suppressed)
- Red LED: Protecting (Output is cut off)
- Protection: Over voltage, under-voltage, overload, over-temperature of Triac & transformer, short circuit, out of frequency
- Operating Temperature: 0°C ~ +40°C
- Storage Temperature: -15°C ~ +45°C
- Operating Humidity: 10%-90%, non-condensing
