TWO COLOR FULL SERVO PAD PRINTER WITH SHUTTLE

US $5000.00 - US $6000.00

Production Lead Time:

21 day(s)

Shipping Method:

BY SEA

Brand:

PRINTSO

Model No.:

PP-150SS2-CP

Size:

1380 x 1100 x 1380mm

Weight:

160KG

Customised:

Yes

Application:

From printing on three-dimensional plastic parts to embossed or etched surfaces or even golf balls, pad printing can be used for a wide variety of applications

Description

Contact Supplier

Features:

Color Touch Screen Control + PLC

Comprehensive operation system

Servo Motor Driven adjustable pad stroke

Servo Motor Driven Front & Back Stroke – Front & Back position adjustable

Servo Motor Driven Shuttle 2 Stations for speedy printing

Stations printing sequence selectable

Pad pressing time and deepness adjustable

Easy mounting & dismounting ink cup

Easy changeable steel plate

Safety protection side door

Anodized aluminum parts

Strong body structure

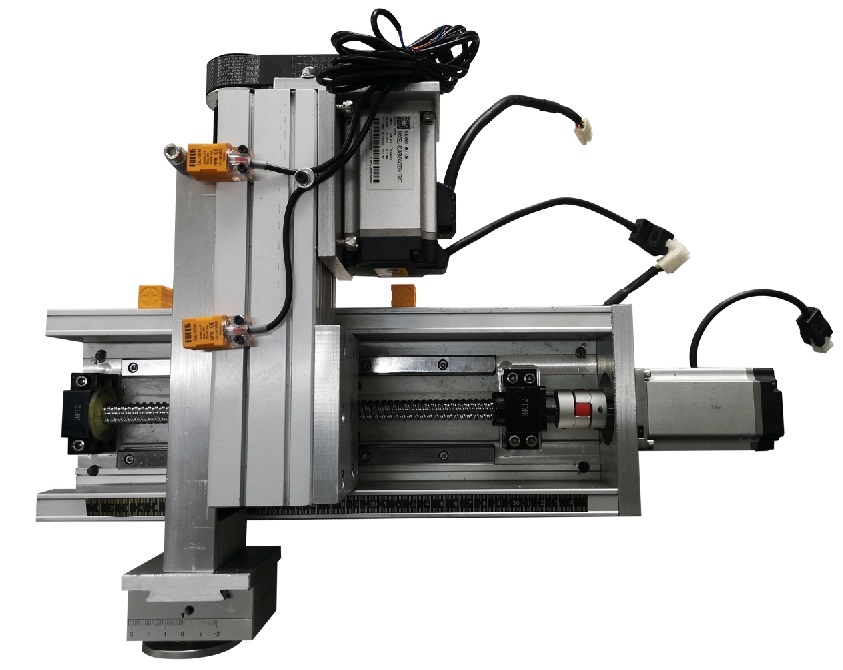

SERVO MECHANISM

SPECIFCATIONS
Model no	:	PP-150SS2-CP
No. of color	:	2 colors
No. of Shuttle Stations		2 Stations Servo Motor Driven
Pad Stroke		Servo Motor Driven
Horizontal Stroke		Servo Motor Driven
Ink Cup Diameter	:	Ø90mm
Plate size	:	100 x 250mm
Max. printing area	:	95 x 140mm
Max. speed	:	12-30 cycles per min.
Power voltage	:	100-240V, 50/60Hz
Power consumption	:	850W
Machine dimension	:	1380 x 1100 x 1380mm
Net weight	:	160KG
