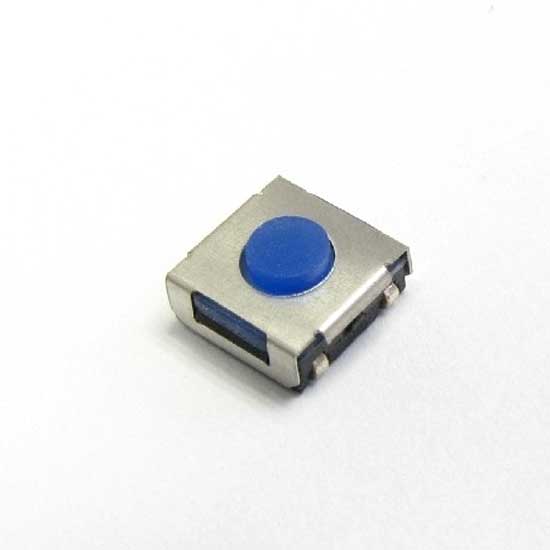

Tactile Switch
Model No.:
TD-46UB
Description
Contact Supplier
Description
Featured is a tactile switch that provides reliable performance. It has successfully gone through bump test, shock test and solder-ability test. It is suitable for applications in all kinds of home and industrial electronic devices.
- Rating: 50mA, 12V DC.
- Contact resistance: 100m ohm (maximum).
- Insulation resistance: 100m ohm (minimum).
- Dielectric strength: 250V AC.
- Operating force: 100 ±30gf, 130 ±30gf, 160 ±50gf, 170 ±50gf, 190 ±50gf, 250 ±100gf.
- Life test: 100,000 cycles.
- Terminal strength: 300gf.
- Resistance to soldering heat test: in the solder bath of 260 ±5°C for ±0.5 seconds.
- Cold test: at -25 ±3°C for 48 hours.
- Heat test: at 70 ±°C for 48 hours.
- Practical temperature range: -16 to 60°C.
- Humidity test: at 40 ±2°C.
- Humidity: 90 to 95% RH for 96 hours.
- Available in various designs.
