Temperature Calibrator
US $216.60 - US $264.10
US $228.00 - US $278.00
Description
Contact Supplier
Description

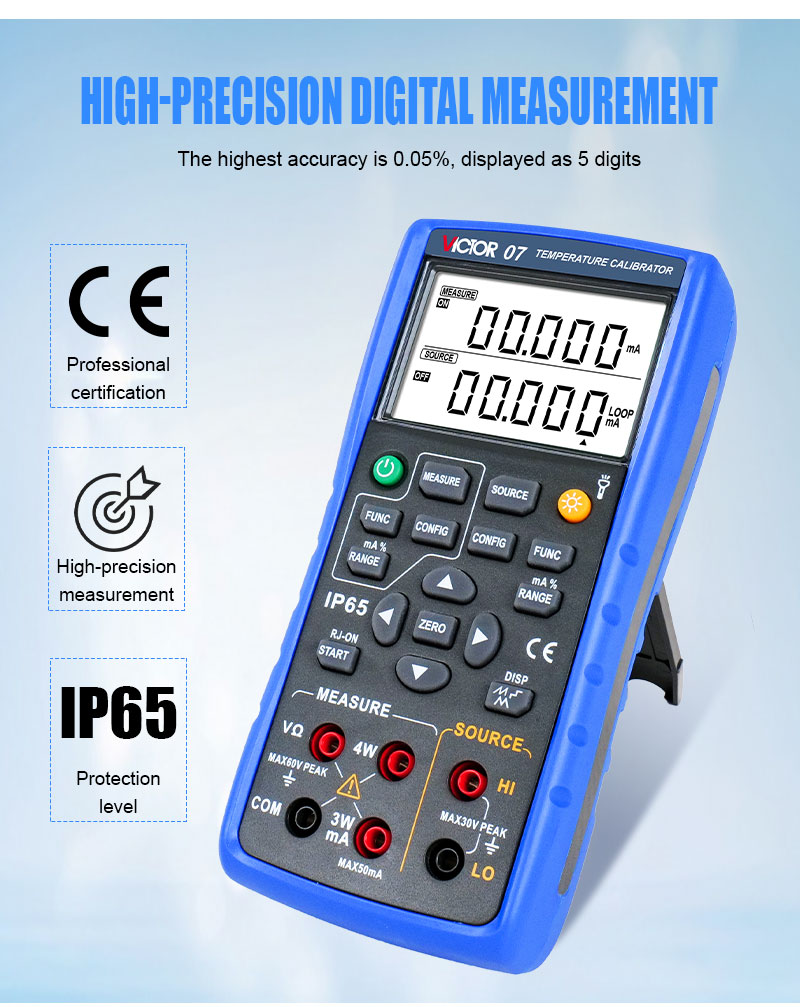

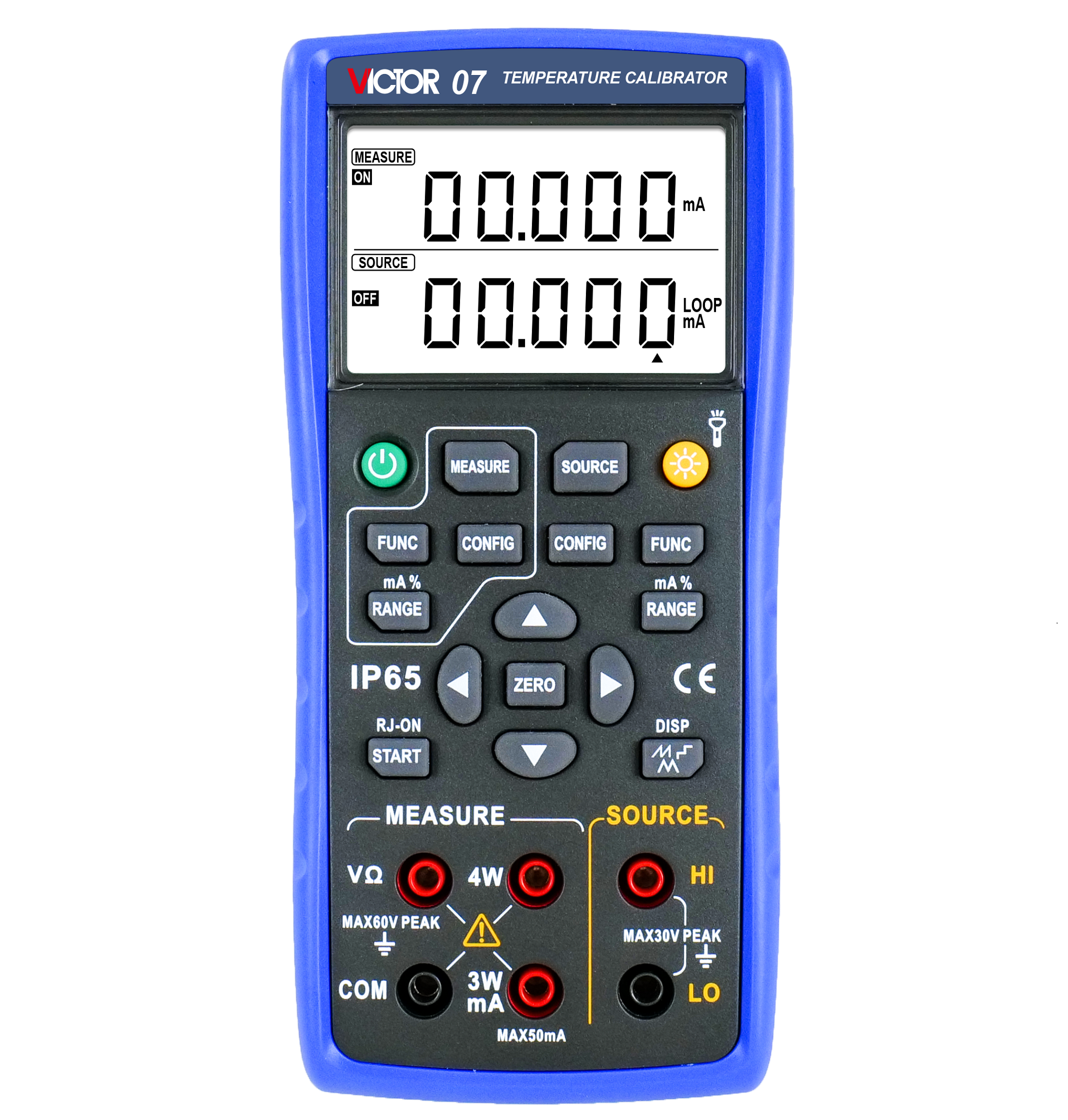

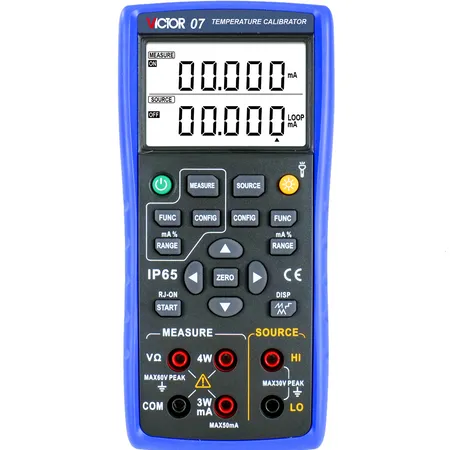

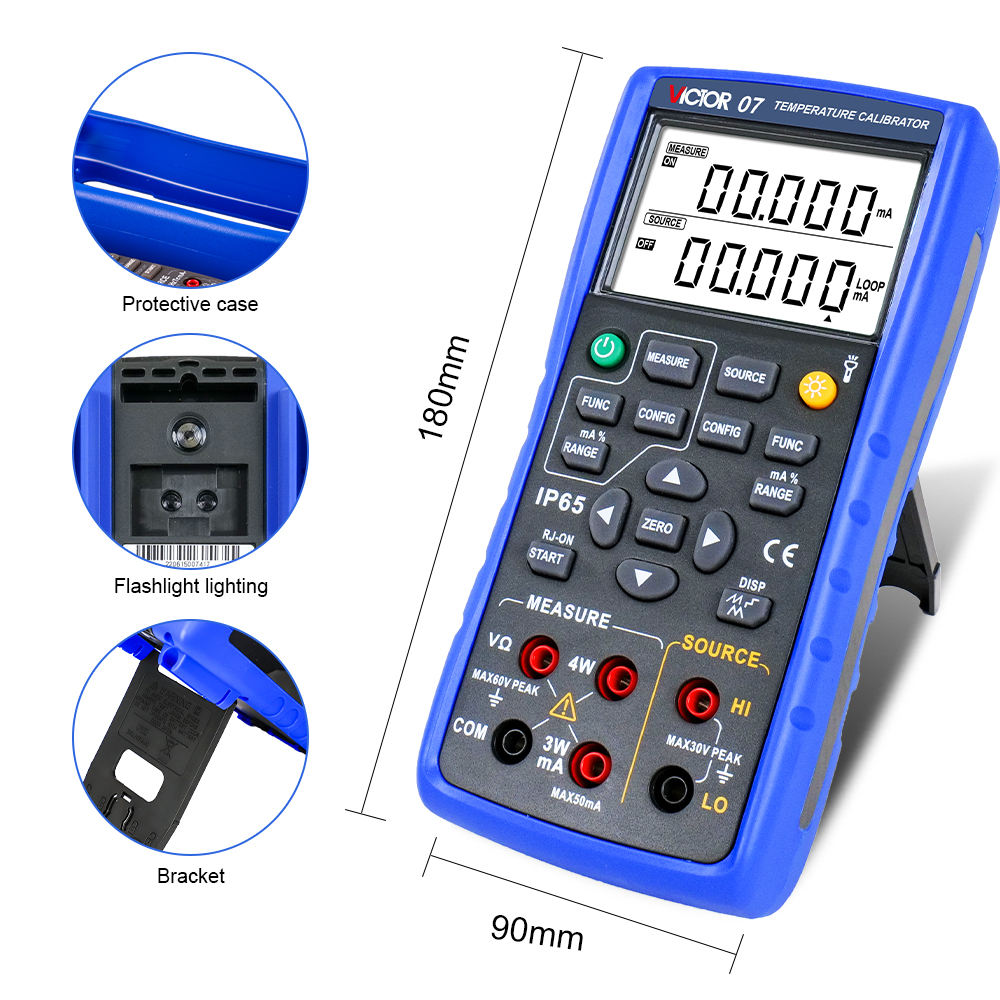

VICTOR 07 Temperature Calibrator with highest accuracy is 0.05% displayed as 5 digits

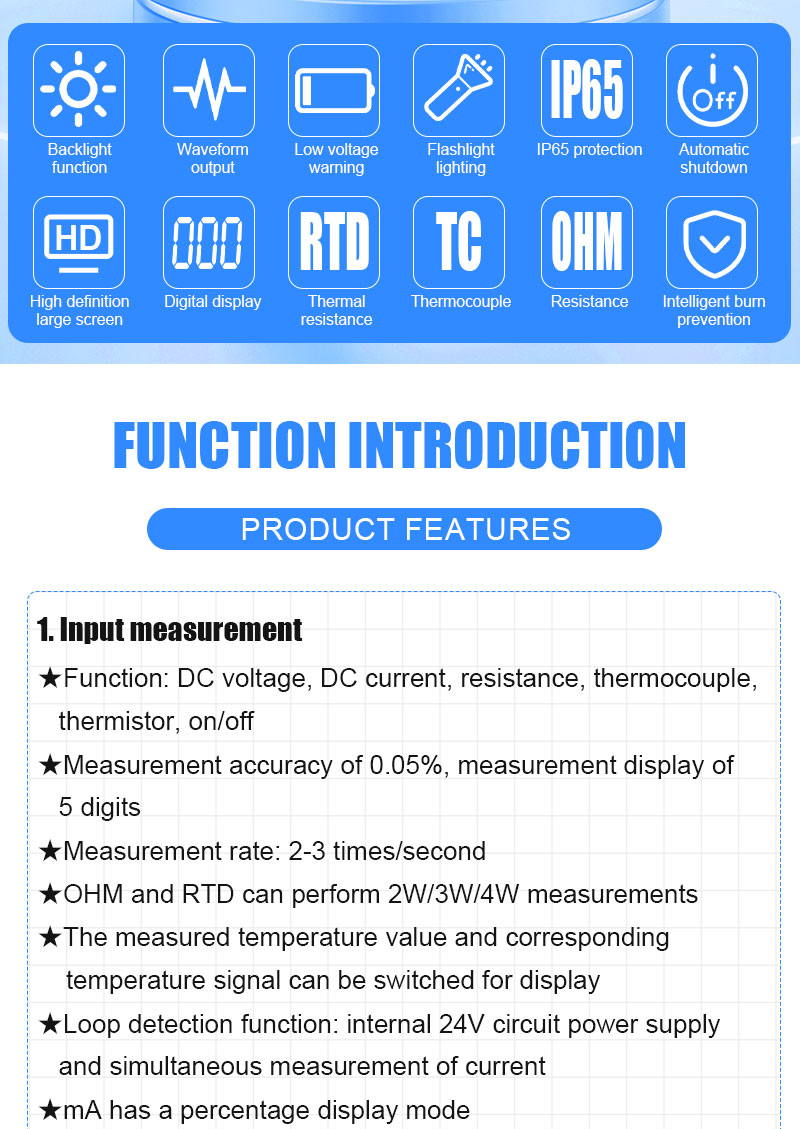

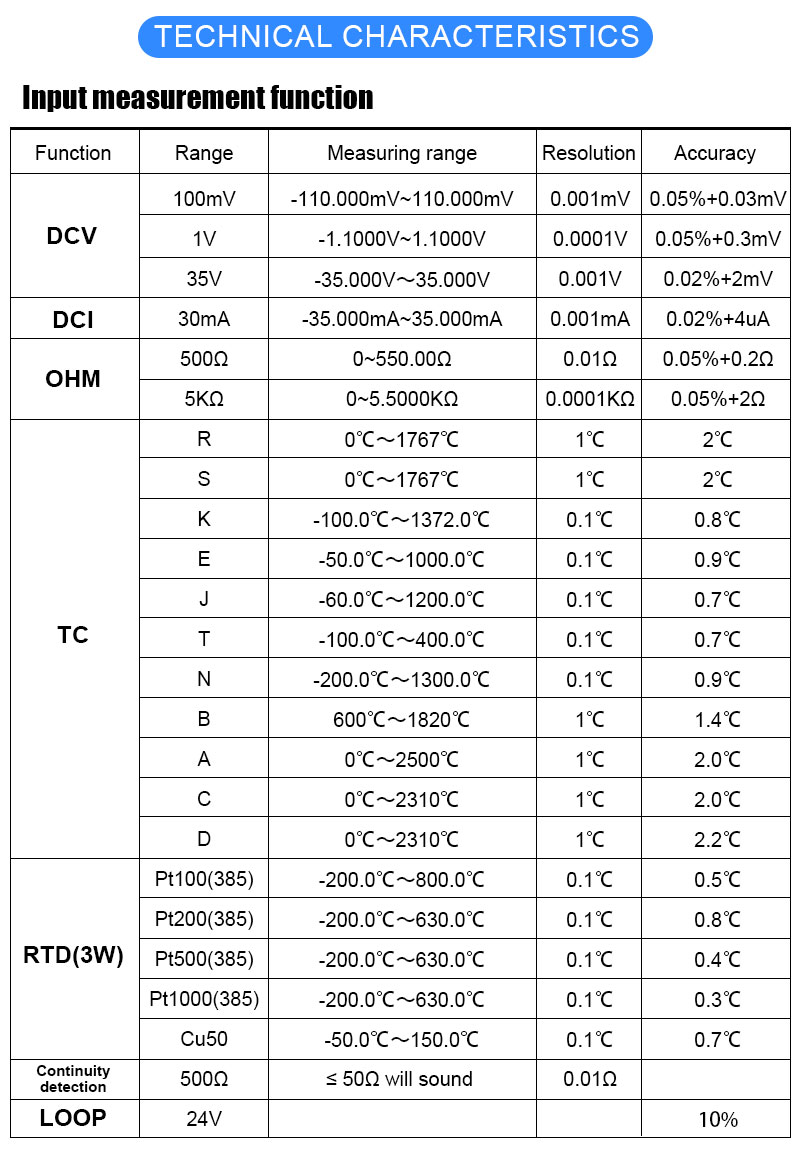

1.Input measurement
★Function: DC voltage, DC current, resistance, thermocouple,thermistor, on/off
★Measurement accuracy of 0.05%, measurement display of5 digits ★Measurement rate: 2-3 times/second
★OHM and RTD can perform 2W/3W/4W measurements
★The measured temperature value and corresponding temperature signal can be switched for display
★Loop detection function: internal 24V circuit power supply and simultaneous measurement of current
★mA has a percentage display mode

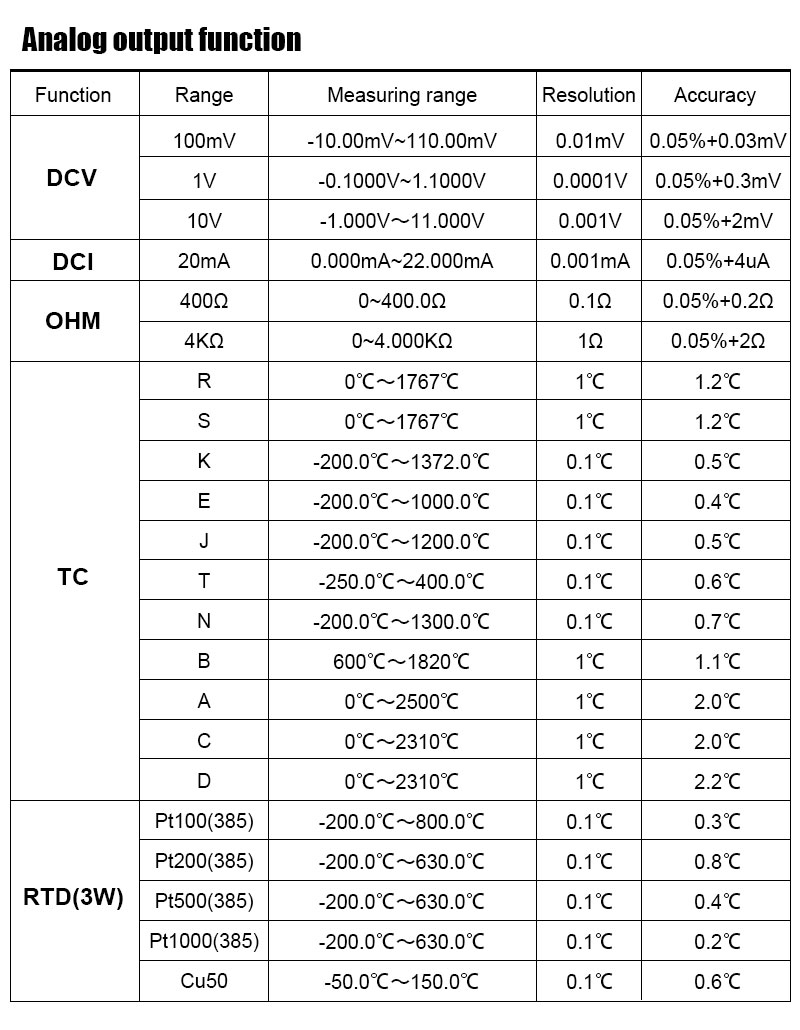

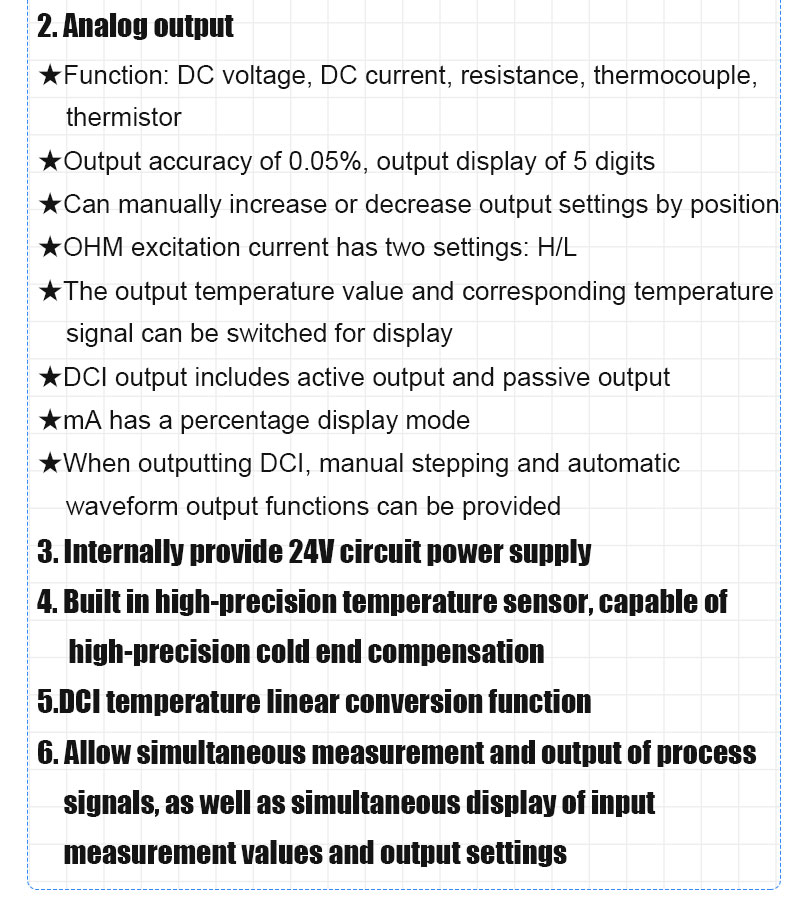

2.Analog output

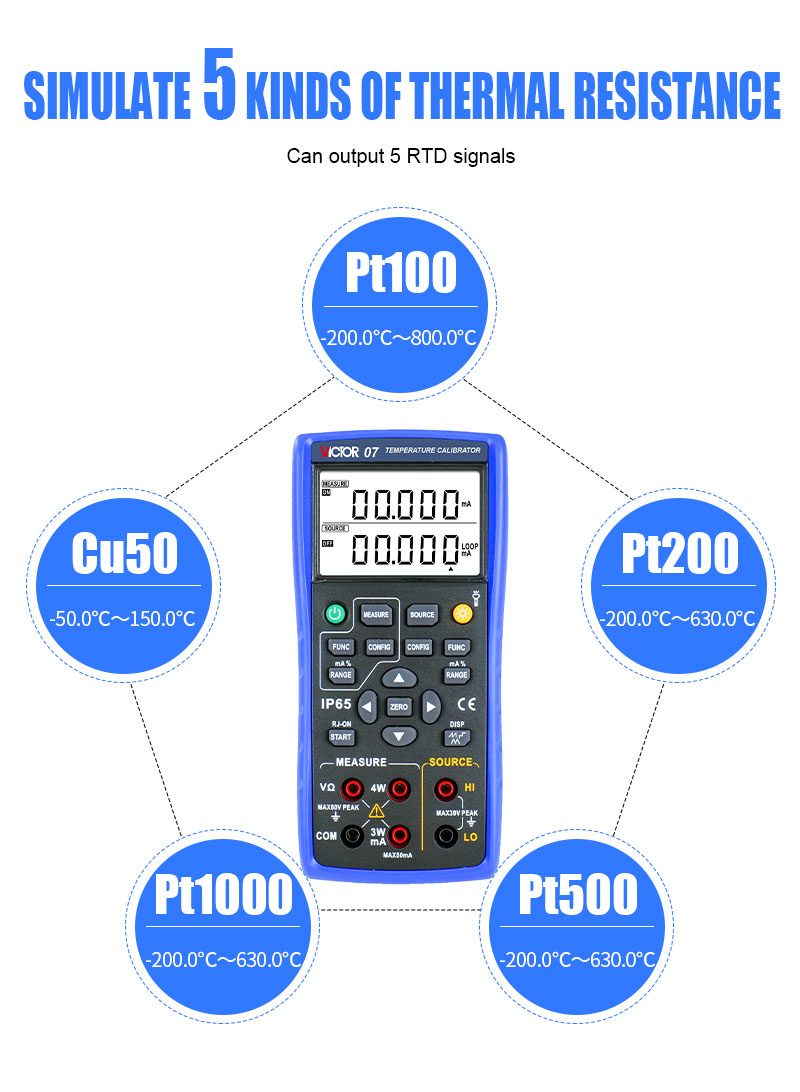

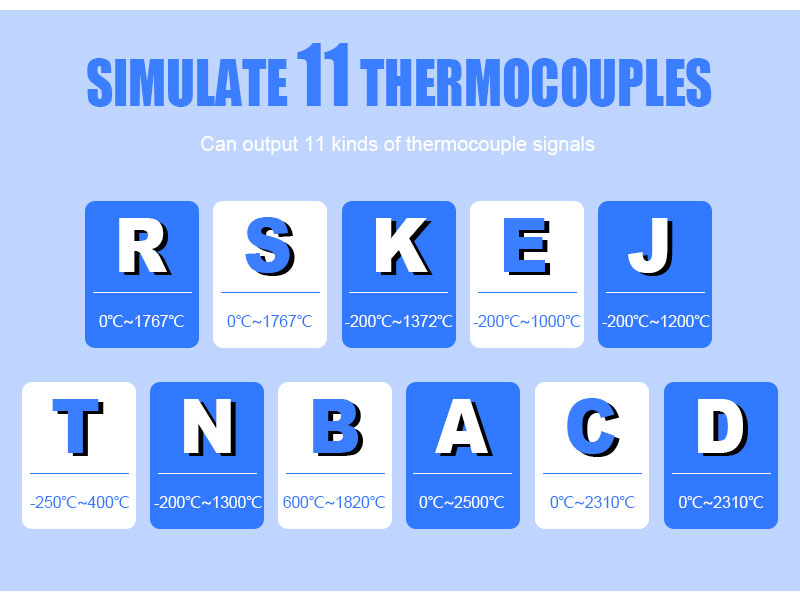

★Function: DC voltage, DC current, resistance, thermocouple,thermistor
★Output accuracy of 0.05%, output display of 5 digits
★Can manually increase or decrease output settings by position
★OHM excitation current has two settings: H/L
★The output temperature value and corresponding temperature signal can be switched for display
★DCl output includes active output and passive output
★mA has a percentage display mode
★When outputting DCl, manual stepping and automatic waveform output functions can be provided
3.internally provide 24V circuit power supply
4. Built in high-precision temperature sensor, capable of high-precision cold end compensation
5.DCl temperature linear conversion function
6.Allow simultaneous measurement and output of process signals, as well as simultaneous display of input measurement values and output settings
