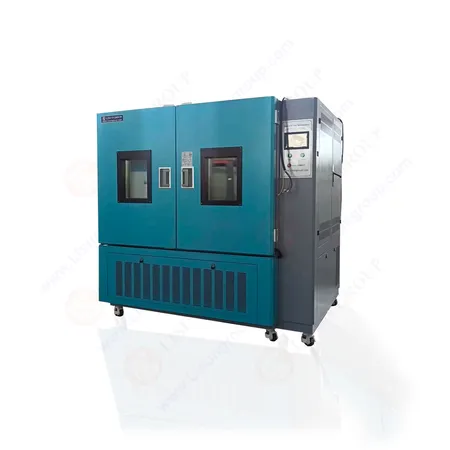

Temperature Humidity Chamber | Thermal Chamber | Climate Chamber simulate different climatic conditions, such as heat-endurance, cold endurance, dryness-endurance and humidity-endurance which defines the performance of material.  By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely used to test the CFL/LED, electricity products, automative cars, home appications and mobiles. This series of aging test chamber is suitable for the reliability test of industrial products. It has the characteristics of temperature and humidity control precision and wide control range.

Standard:
IEC60068-2-1 ” Environmental testing – Part 2-1: Tests – Test A: Cold”
IEC60068-2-2 “Environmental testing – Part 2-2: Tests – Test B: Dry heat”
IEC60068-2-78 “Environmental testing – Part 2-78: Tests – Test Cab: Damp heat, steady state”
IEC60598-1 “Luminaires – Part 1: General requirements and tests”
IES LM-80-08 “Approved Method: Measuring Lumen Maintenance of LED Light “
GB/T2423.17 “Environmental testing for electric and electronic products – Part 2: Test method – Test Ka: Salt mist”
GB/T5170.2 “Inspection methods for environmental testing equipment for electric and electronic products — Temperature testing equipment”
GB/T5170.5 “Inspection methods for environmental testing equipments for electric and electronic products―Part 5:Damp heat testing equipments”

What is a Climate Chamber?

Climate chamber is used to simulate a temperature environmental condistions. It may also be called environmental chambers or thermal chamber or temperature chamber. You can click the below videos to learn the details and also how to operate it.

Specification:
• The temperature humidity test chamber is made of SUS304 Steel. The thermal insulation layer is made of polyurethane hard foam ultra-fine glass fiber. The heat-insulated doorframe uses high temperature aging silicone rubber sealing strip.
• The temperature controller of the climate chamber includes Korean TEMI display in English/Chinese and German Siemens PLC. It can communicate with PC via RS-232. The temperature accuracy is 0.1℃ and humidity accuracy is 0.1%R.H.
• The temperature sensor is platinum PT100Ω/MV.
• The independant heating system uses nickel-chrome electric heater.
• The refrigerating system is fully enclosed air-cooled single-stage compression refrigeration mode, and the compressor is from France TECUMSEH brand which can allow you get after sales support from many other countries.
• The circulation system uses temperature resistant and low noise air-conditioned motor and multi-blade centrifugal wind wheel.
• The safety protection system includes electric leakage, short circuit, over temperature, motor overheating, compressor pressure, overload, over-current protection.
• Working Voltage: AC380V±10% 3 phases and frequency 50Hz/60Hz
• Working Environmental: Temperature 5℃～+30℃ and Humidity ≤85%R.H
