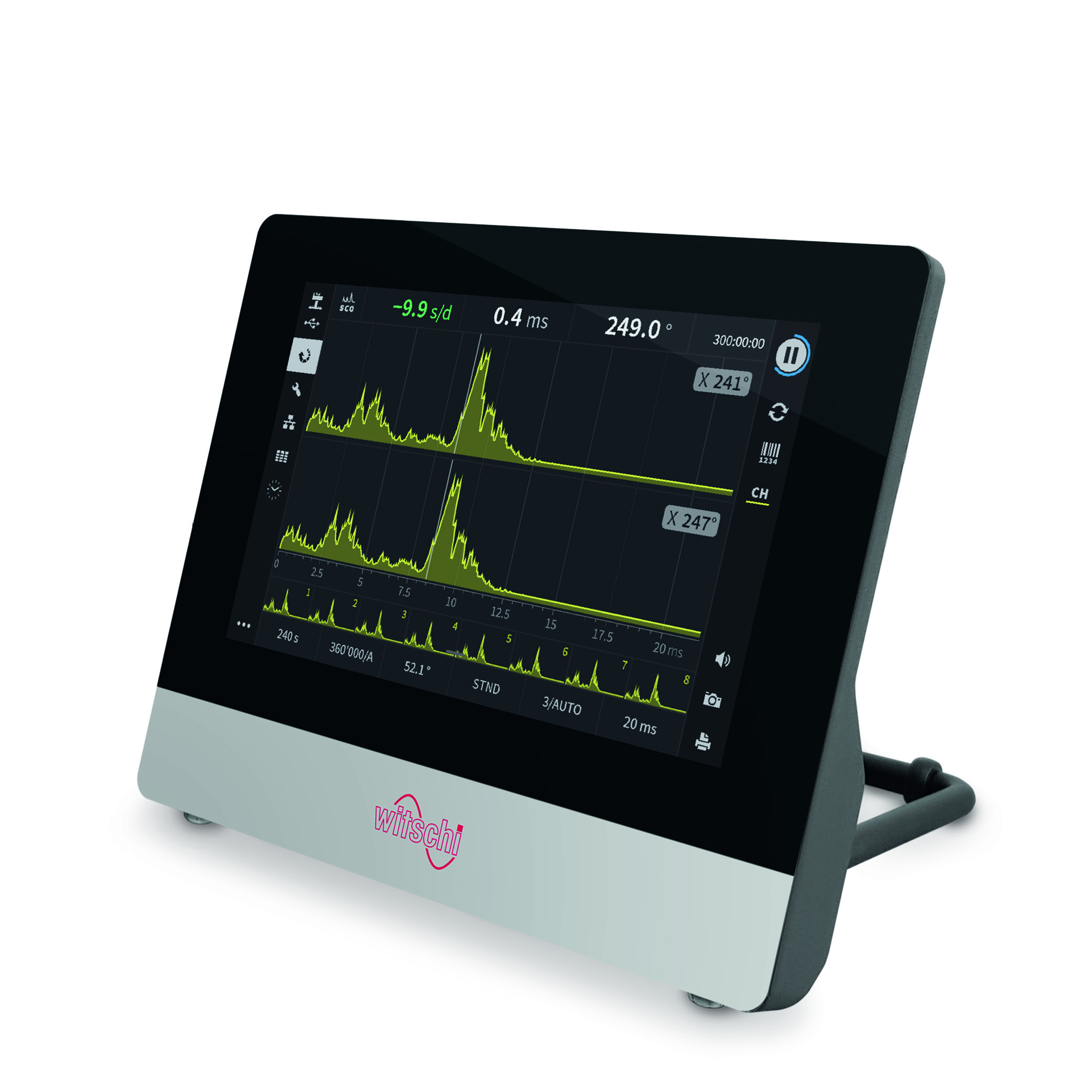

The display unit for all ChronoMaster and QuartzMaster devices offers the greatest flexibility in the smallest space. The compact Terminal was developed for use on a workbench and can be tilted as required. It has a bright and high-resolution 7" display with touch function and its ergonomic design enables users to work productively with the user-friendly software.

You decide which devices are connected to the Terminal. Whether measuring mechanical watches, quartz watches or even both together – the Terminal can be combined with up to four different measuring devices and expanded at any time. The Terminal is able to directly access the test programs of the parameter and result management system Wicotrace via Ethernet. The measurement results are stored on the Wicotrace database following measurement and can be further processed from there.

• Flexible display unit for all ChronoMaster, QuartzMaster, QuartzSensor and Micromat C devices

• High-resolution 7" display with touch function and adjustable tilt

• Compact design requires little space on a workbench

• Revised software for productive work

• Regular updates and new features over-the-air (Internet connection required)

• Easily import measurement programs from Chronoscope X1 and Chronoscope Service

• Connection to the powerful test parameter and result management system WiCoTRACE 3 & Wicotrace 360°

• Audio output for beat noises (ChronoMaster and ChronoMaster Auto)

• Wireless connection* for Wicotrace and over-the-air (OTA) updates
