Characters:

1.Operating voltage range
The range of TPH operating voltage is 4.2V~8.5V and the range of logic voltage is 2.7V~5.0V.

2.High resolution printing
A high-density printer head of 8 dots/mm make the printing clear and precise.

3.Printing speed adjustable
According to driving power and sensitivity of thermal paper, set different printing speed required.The max speed is 90mm/s.

4.Easy paper loading

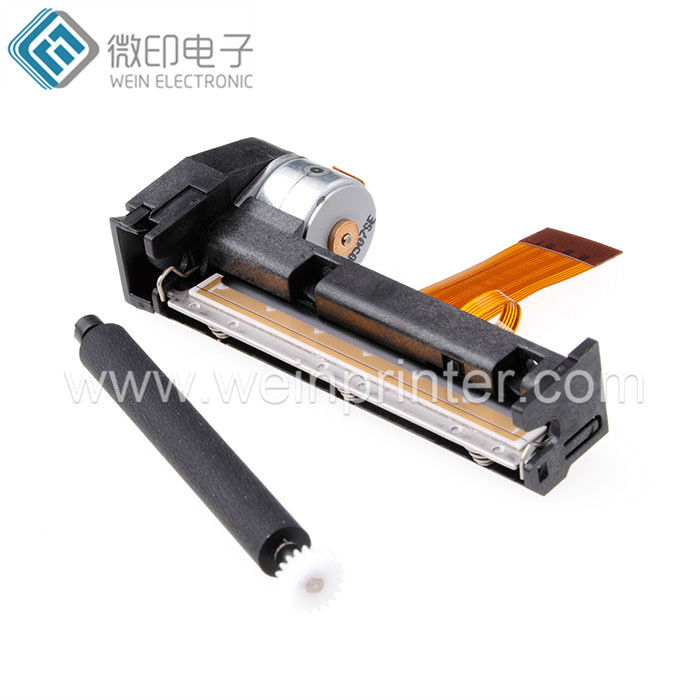

Detachable rubber roller structure makes the paper loading easier.

5.Low noise
Thermal line dot printing is used to guarantee low-noise printing.


Specification:

• Print method: Thermal dot line printing
• Dots per line: 384 dots
• Resolution: 8 dots/mm
• Print width: 48 mm
• Paper width: 57.5 ± 0.5 mm
• W*D*H(mm): 67.3 mm * 17.8 mm * 32.0 mm
• Paper feed pitch: 0.03125 mm
• Weight: 30 g
• Printing speed: 90 mm/s
• Head temperature detection: Via thermistor
• Out-of-paper detection: Via photo interrupter
• Printer head life：50km or more
• Operating temperature range (ºC): 0~50
• Operating humidity (RH): 20%~85%
• Storage temperature range (ºC): -20~70
• Storage humidity(RH): 10%~90%
