Thermal Protector
Model No.:
BW-D Series
Description
Contact Supplier
Description

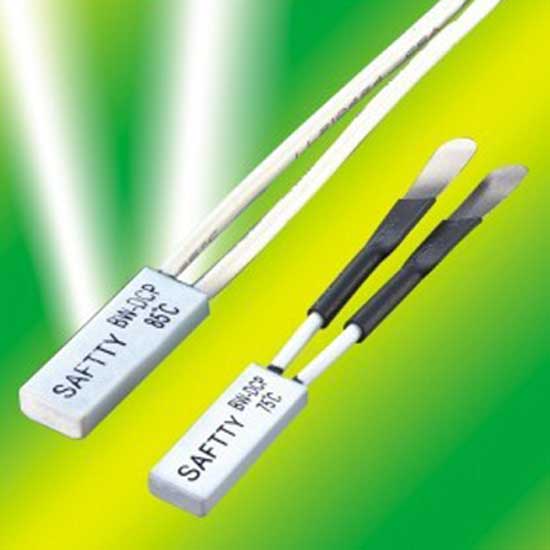

Displayed is a thermal protector featuring a miniature size. With a switching cycle of 10,000 times, this protector is built to last. This high-quality thermal protector is suitable for batteries, pumps, cooling fan, lighting ballasts, etc.
- Application: used in battery packs, pumps, cooling fans, heating appliances and lighting ballasts.
- Small and miniature size.
- Positive make-and-break with a snap action disc.
- Suitable for most impregnation processes.
- Competitive price.
- Dimension case: with leading wire of 60mm normally.
- Plastic: 16 x 5.2 x 3mm.
- Rated voltage: AC 250V/24V (50/60Hz).
- Rated current: 6A.
- Rated open temperature range: 40-145℃, in steps of 5℃.
- Tolerance: (+/-)5℃.
- Resetting temperature: lower than rated open temperature 30℃(+/-)15℃.
- Switching cycles: 10,000 cycles.
- Contact arrangement: normally closed and normally opened.
- Standard contact resistance: ≤50mΩ.
- Thermal cutoff.
