Toggle Switch for remote controller

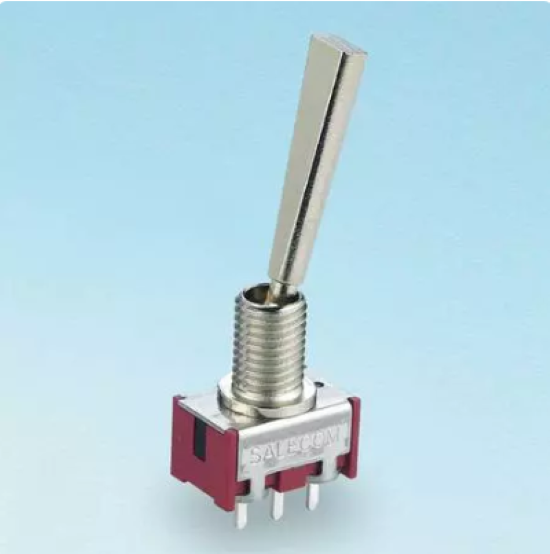

T70-T Toggle Switches

This toggle switch is designed for model airplane and remote controller. Flat actuator is easy for operation and the appearance can distinguish the direction of action.

Features

• For remote controller
• Multi-positions
• Low voltage, low current

Specification

• Contact Rating: 0.1 30 VDC (Silver plated)
• Electrical Life: 10,000 cycles
• Contact Resistance: 30 mΩ max. initial
• Insulation Resistance: 100 MΩ min. 500VDC, 0.5mA
• Dielectric Strength: 1,000 VAC for 1 min.
• Operating Temperature: -30°C to 85°C

Materials

• BODY: Nylon (UL94V-0)
• ACTUATOR: Copper alloy, nickel plated /chrome plated
• BUSHING: Copper alloy, nickel plated
• HOUSING: Stainless Steel
• CENTER CONTACTS & ALL TERMINALS: Copper alloy, silver plated

•


• Application

  • Model airplane
  • Remote Controller
