Tool-Free Install LED Street Light
Share this page
US $65.54 - US $107.34
US $68.99 - US $112.99
Production Lead Time:
20-25 day(s)
Shipping Method:
EXW
Brand:
TUBU
Customised:
Yes
Is Dimmable:
Yes
Light Source:
LED
Beam angle:
60°/90°/120°/T2M/T3M/T4M
CCT:
3000K/4000K/5000K
Description
Contact Supplier
Description

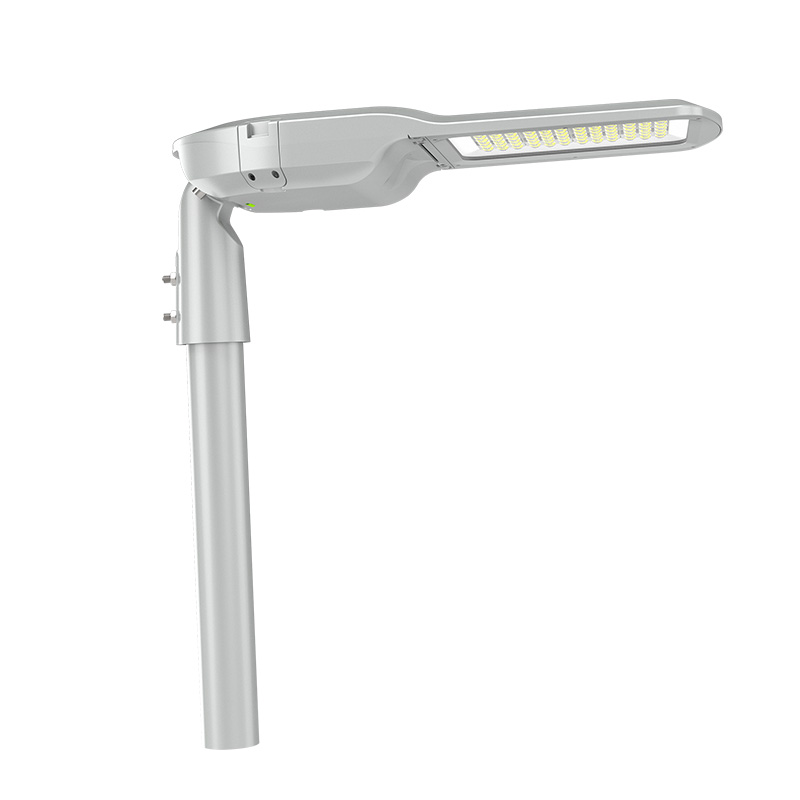

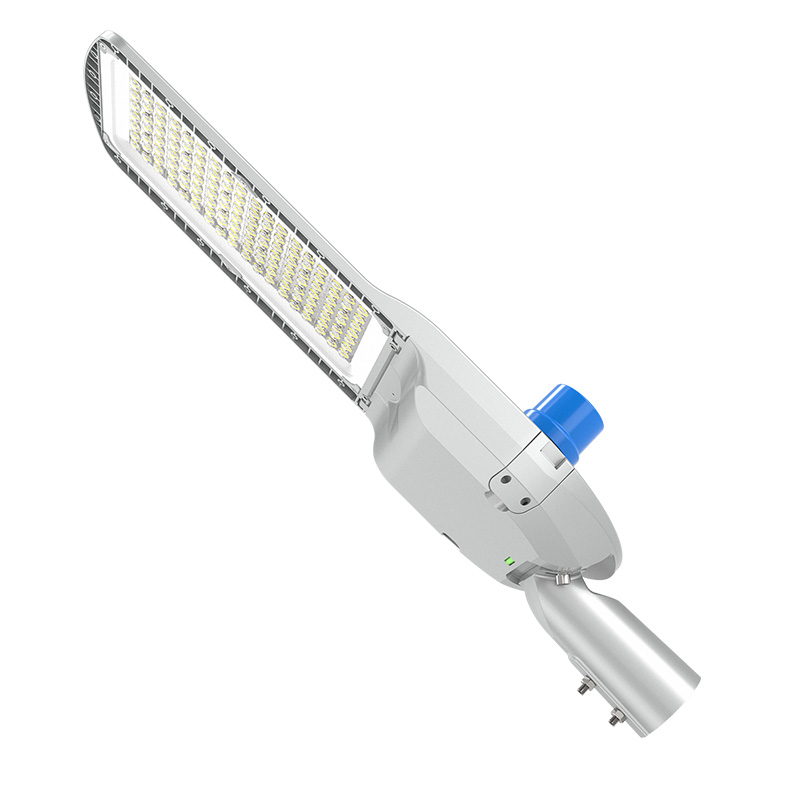

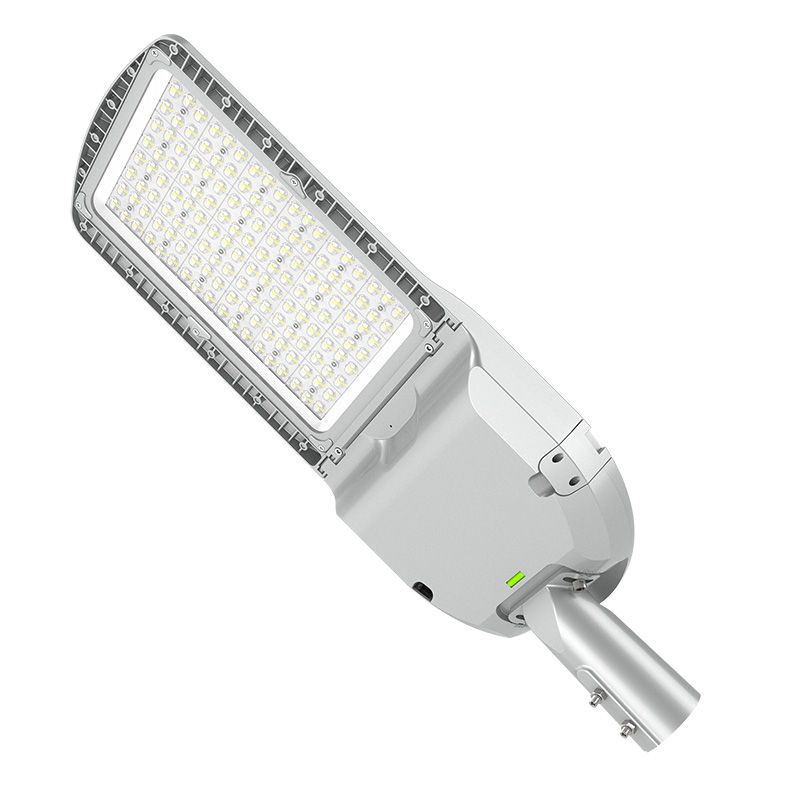

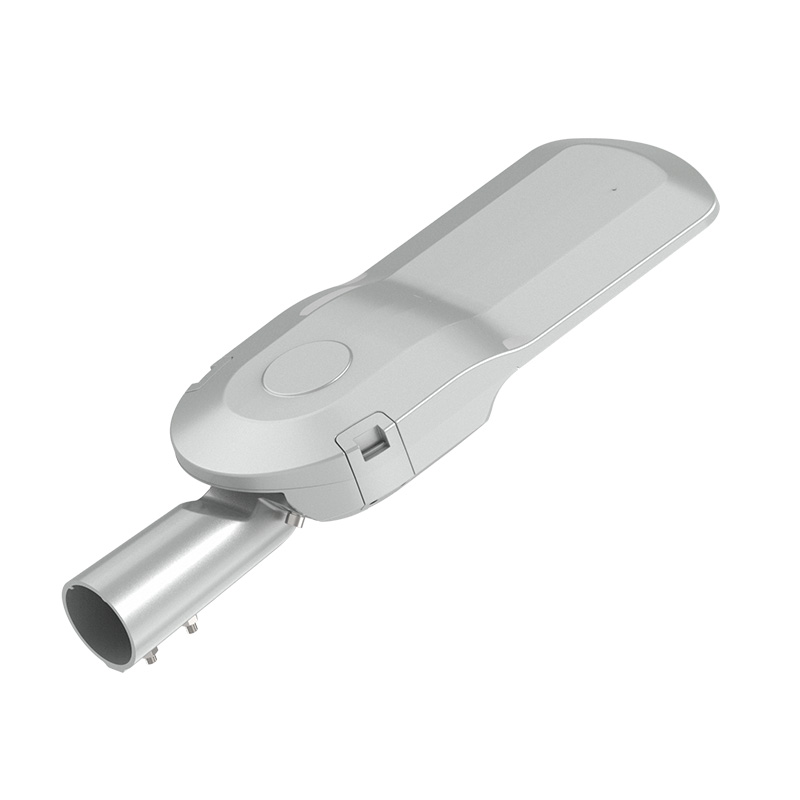

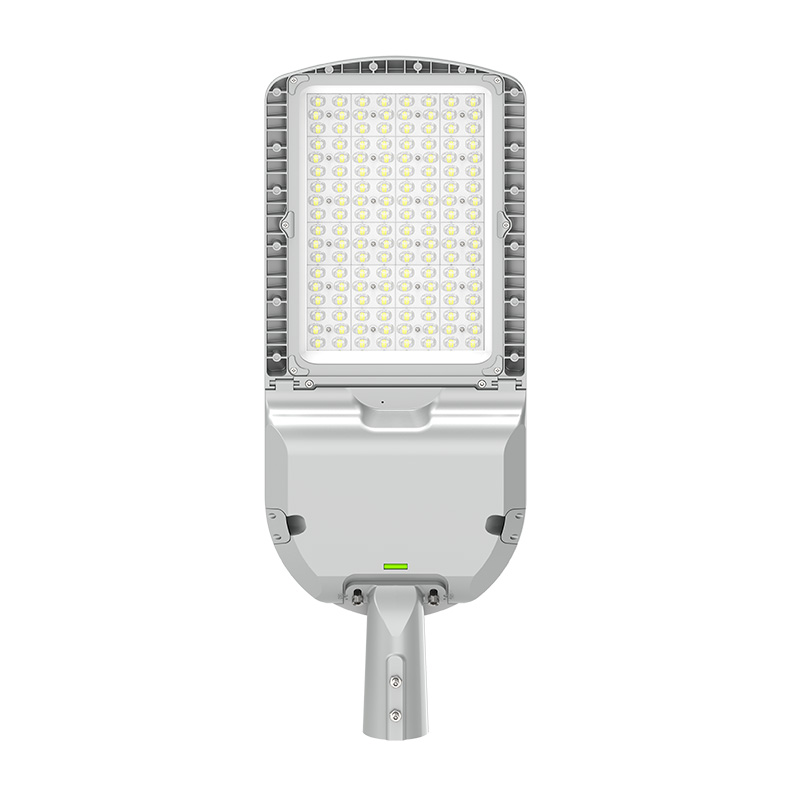

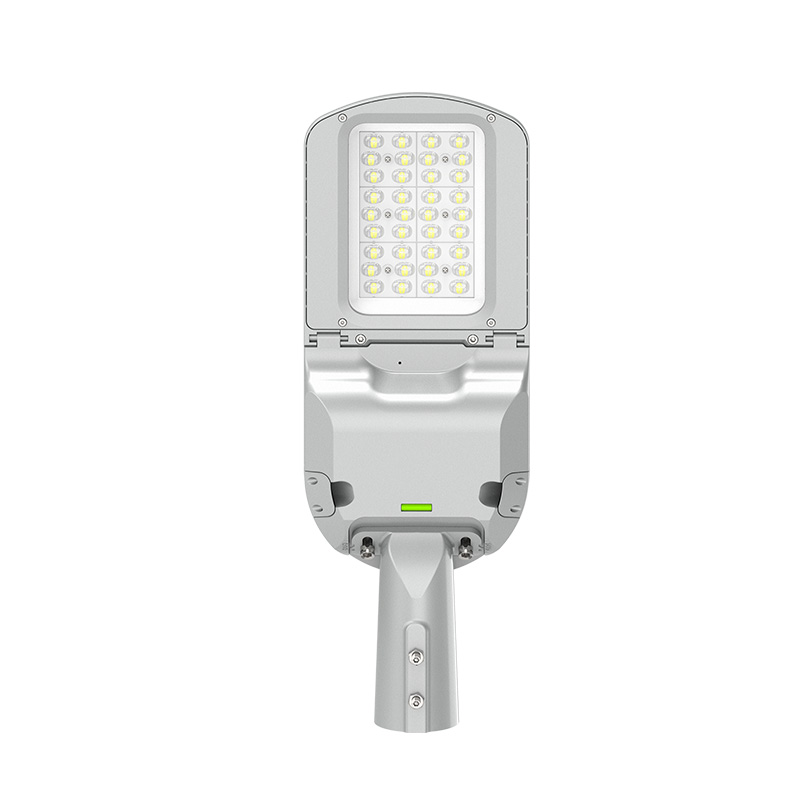

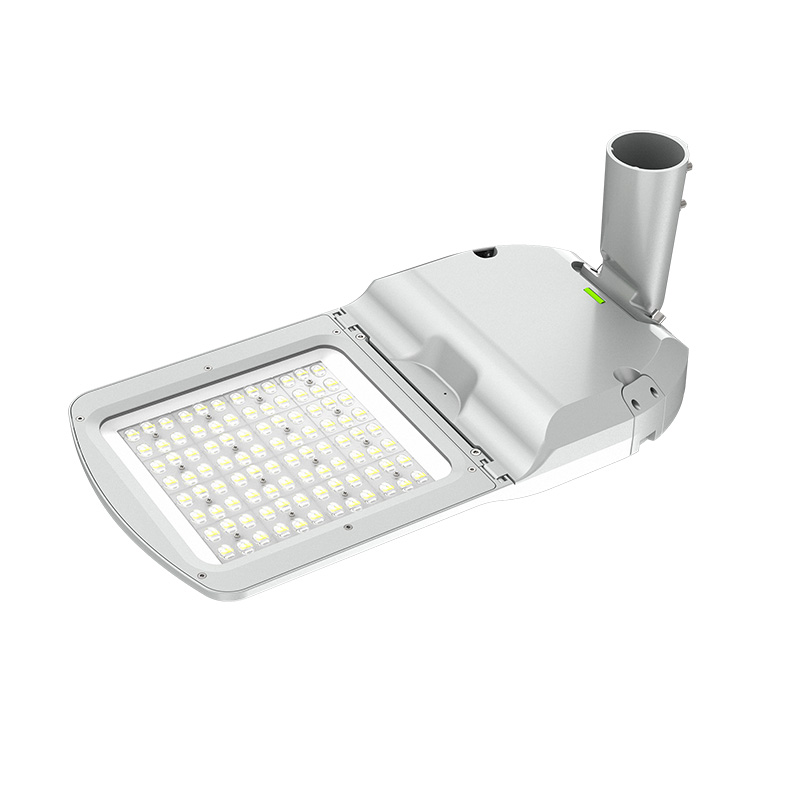

TUBU's Tool-Free Install LED Street Lights are designed to provide superior performance, durability and ease of installation. Patented private model, one-piece die-cast aluminum structure. It has an IP66 waterproof rating, ensuring it can withstand the harshest weather conditions. Tempered glass panels and glue-free fixings ensure a safe and durable structure.

Three light effects are available - 130 lm/w, 150 lm/w, and 170 lm/w - making it easy to customize the light output to meet your specific needs. Equipped with a range of professional anti-glare lenses, including options of 60°, 90°, 120°, T2M, T3M, and T4M, it ensures efficient light distribution and minimizes glare.

The street light is equipped with a 10KV surge protector to enhance surge protection and ensure the service life of the product. The lighting can also be fully controlled with options such as 0-10V dimming, time of day control, light sensor control, and even IoT control for optimal energy efficiency. In order to prevent overheating and ensure the best performance, the street light adopts a flat honeycomb design lamp body radiator, which provides excellent heat dissipation. This helps prolong the life of street lights and maintain their performance.

Features:

  • IP66
  • Patent private mold, integrated die-casting AL
  • High efficiency, 130-170lm/w available
  • Professional glare-free lens, 60°/90°/120°/T2M/T3M/T4M
  • 10KV surgery protector
  • 0-10V dimming/time control/light sensor/ IOT control available
  • Flat honeycomb design, good heat dissipation
  • Gradienter design: easy for horizontal installation
  • Snap-on type installation, tool-free disassembly
  • Tempered glass panel, no glue fixed
Tech Specs:
Item No.TB-S7-25WTB-S7-50WTB-S7-60WTB-S7-80WTB-S7-100WTB-S7-120WTB-S7-150W
Lamp Size568*200*109mm568*200*109mm568*200*109mm613*240*109mm613*240*109mm613*240*109mm683*260*109mm
VoltageAC100V-240V 50/60HZ
Power25W50W60W80W100W120W150W
LED TypeLumileds 3030/5050
8-in-onelens48PCS48PCS48PCS72PCS72PCS72PCS96PCS
Luminous Flux4500±10%8700±10%10200±10%14000±10%17500±10%20400±10%26250±10%
CCT3000K/4000K/5000K
Beam angle60°/90°/120°/T2M/T3M/T4M
8-in-onelens5000-6000K
Color Rendering Index(CRI)RA>70
Power Supply Efficiency>88%
LED Luminous Efficiency130-170lm/w
Power Factor(PF)>0.95
Total Hamonic Distortion≤15%
IP RankIP66
NEet Weight4.0KG4.0KG4.0KG4.92KG4.92KG4.92KG5.86KG
CertificateCE, CB, RoHS
