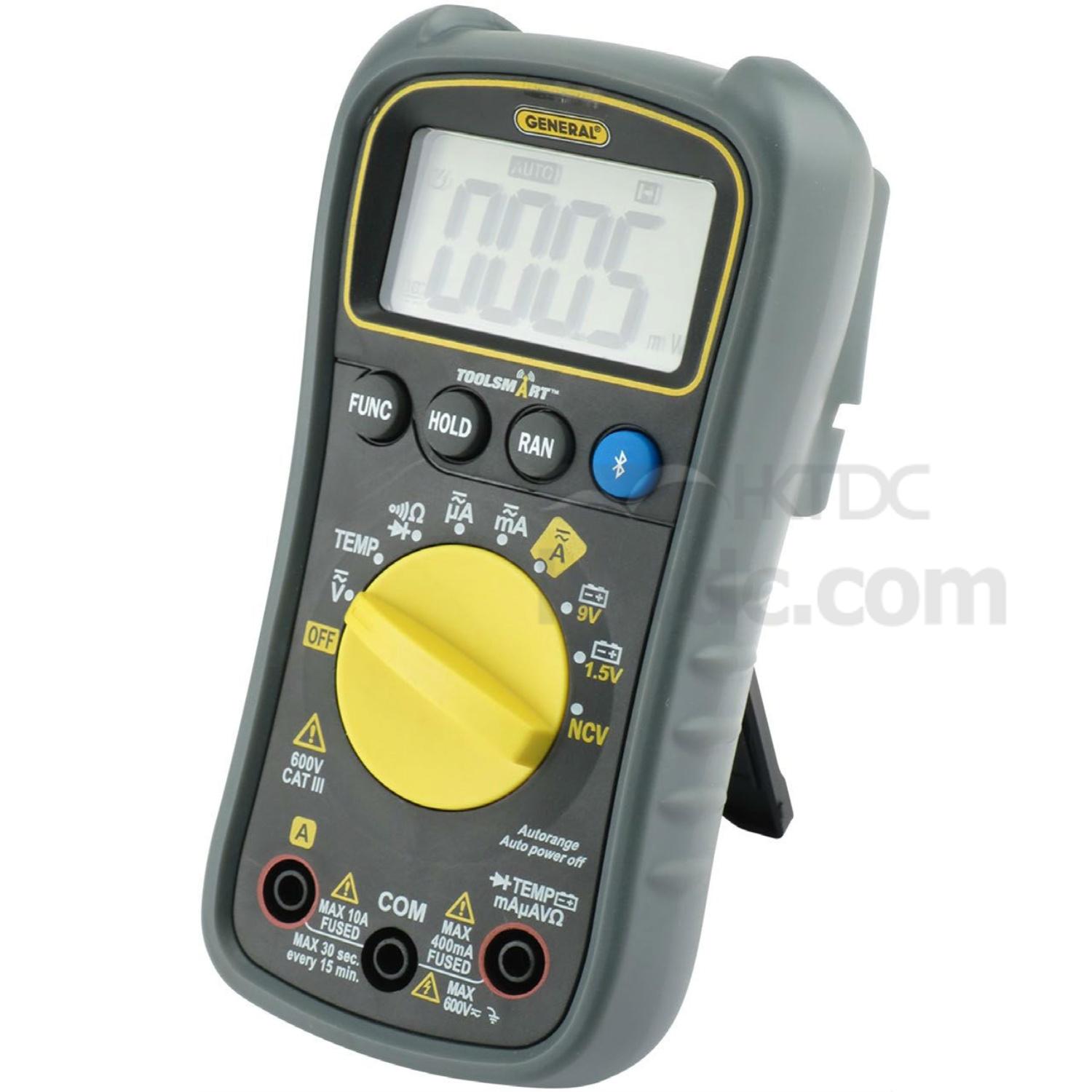

Tool Smart Digital Multimeter
Model No.:
TS04
Brand:
General
Size:
148 x 74 x 50mm (5.8 x 2.9 x 2.0 in.)
Minimum Order Quantity:
100
Measuring Range:
0~600V
Operating Temperature:
0~40℃
Description
Contact Supplier
Description
Features:
• Turn the dial to easily read AC/DC voltage, AC/DC current, resistance, temperature, and more…
• Conveniently use your phone as a second screen for easier visibility in dark environments and to simplify two person jobs
• Quickly save your readings to the ToolSmart™ app on your phone
• Organize your findings by project to increase your productivity
• Integrated Non-contact voltage (NCV) detector
• ETL certified safe for CAT III 600V use
Specifications:
• AC/DC Voltage Range: 0 to 600V
• AC Voltage Accuracy/Resolution: ±1%/1mV
• DC Voltage Accuracy/Resolution: ±0.5%/0.1mV
• AC/DC Current Range/Accuracy/Resolution: 0 to 10A/±1.2%/0.1μA
• Resistance Range/Accuracy/Resolution: 0 to 40MΩ/±0.8%/0.1Ω
• Temperature Range/Accuracy: -4º to 1832ºF (-20º to 1000ºC)/±2.0%
• Safety Rating: CAT III 600V
• Sampling Time: 3X/sec
• Display: 3-3/4 digits, w/maximum count of 4000
• Turn the dial to easily read AC/DC voltage, AC/DC current, resistance, temperature, and more…
• Conveniently use your phone as a second screen for easier visibility in dark environments and to simplify two person jobs
• Quickly save your readings to the ToolSmart™ app on your phone
• Organize your findings by project to increase your productivity
• Integrated Non-contact voltage (NCV) detector
• ETL certified safe for CAT III 600V use
Specifications:
• AC/DC Voltage Range: 0 to 600V
• AC Voltage Accuracy/Resolution: ±1%/1mV
• DC Voltage Accuracy/Resolution: ±0.5%/0.1mV
• AC/DC Current Range/Accuracy/Resolution: 0 to 10A/±1.2%/0.1μA
• Resistance Range/Accuracy/Resolution: 0 to 40MΩ/±0.8%/0.1Ω
• Temperature Range/Accuracy: -4º to 1832ºF (-20º to 1000ºC)/±2.0%
• Safety Rating: CAT III 600V
• Sampling Time: 3X/sec
• Display: 3-3/4 digits, w/maximum count of 4000
