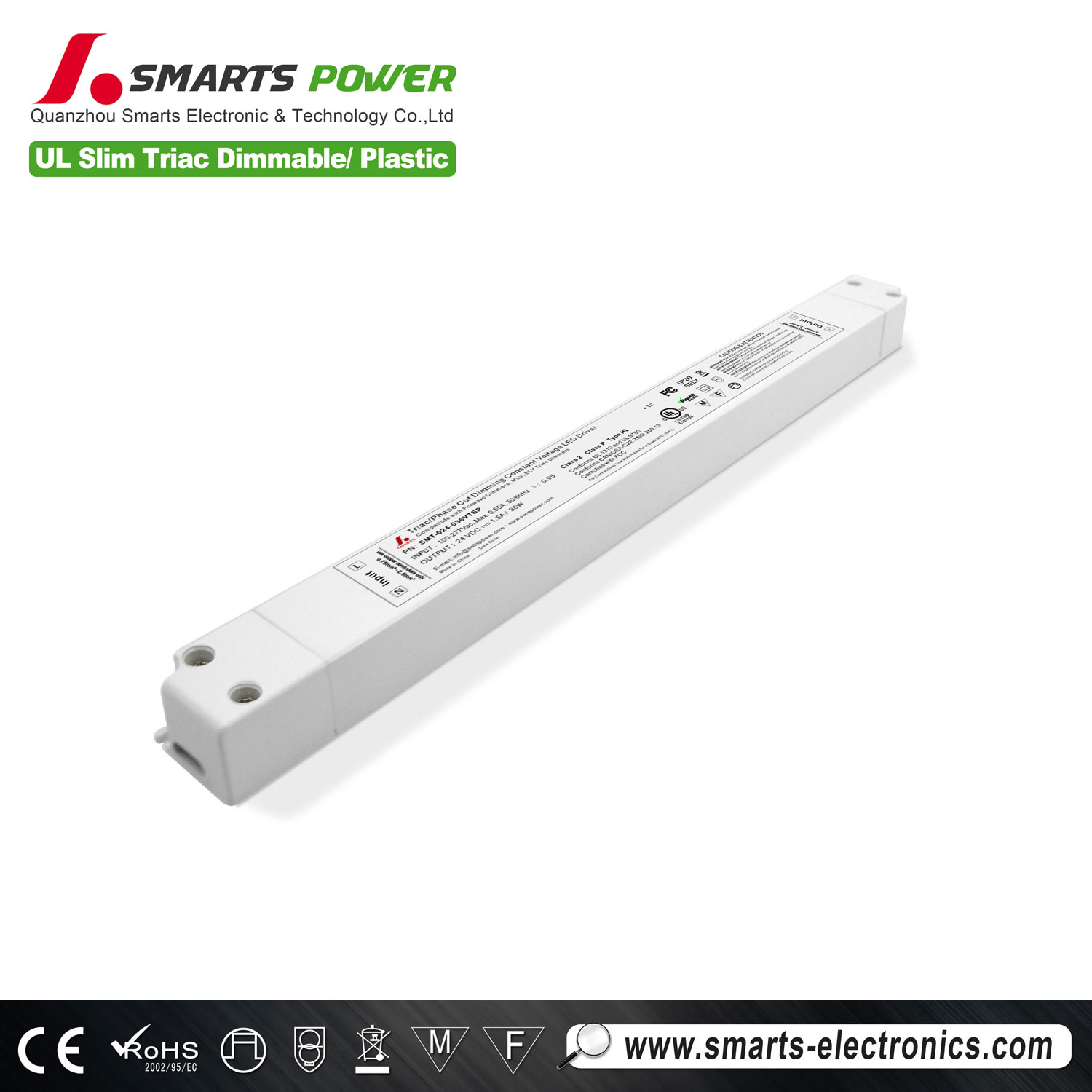

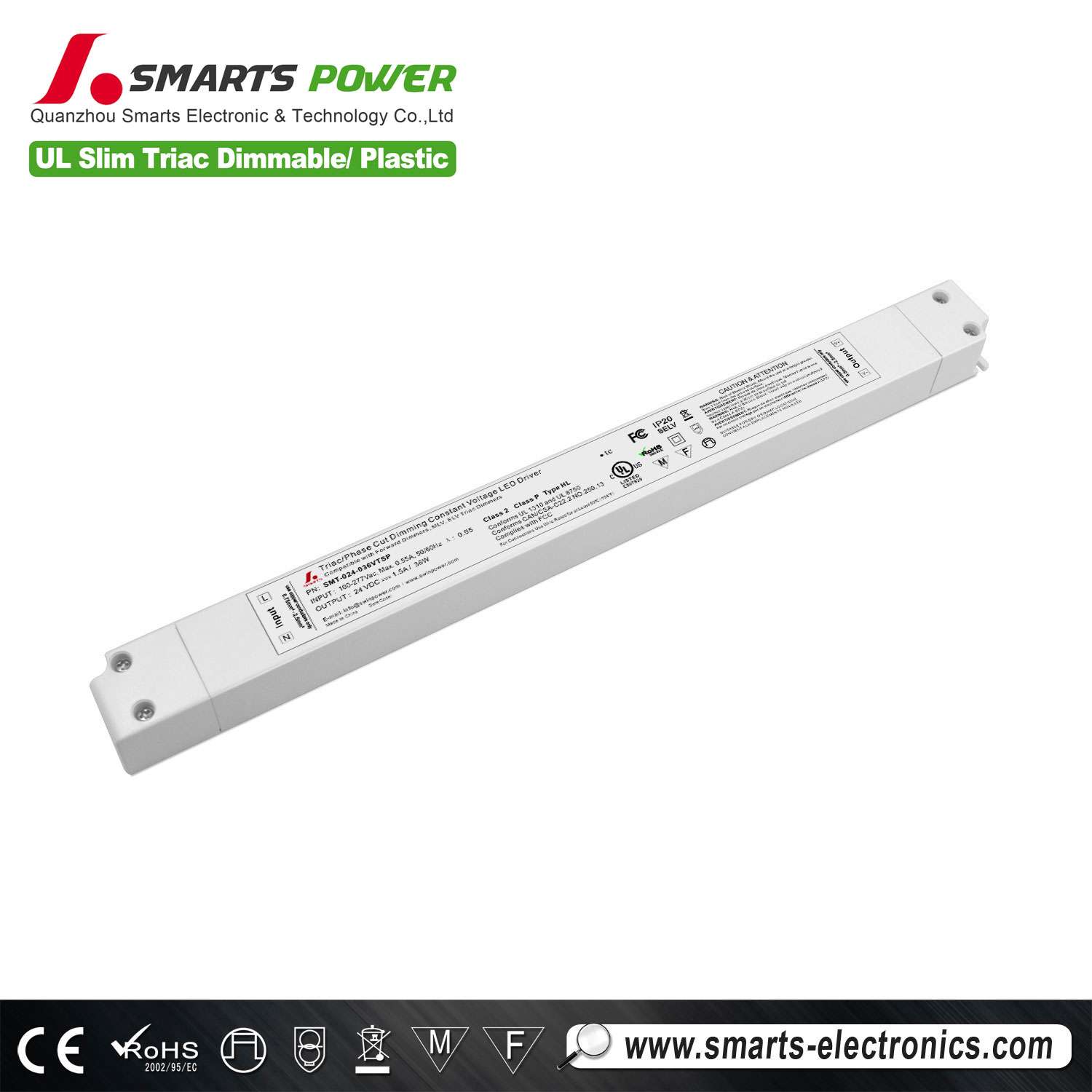

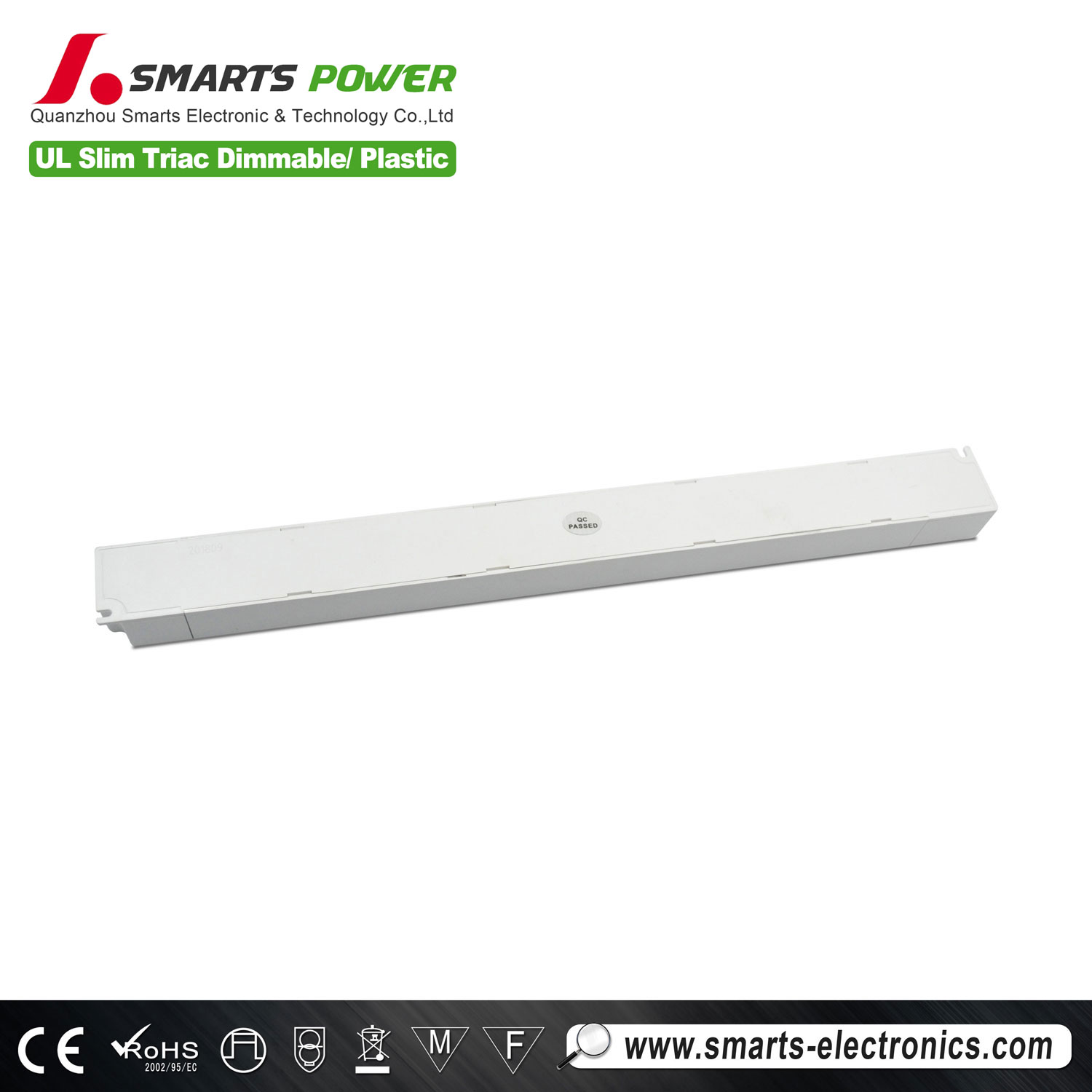

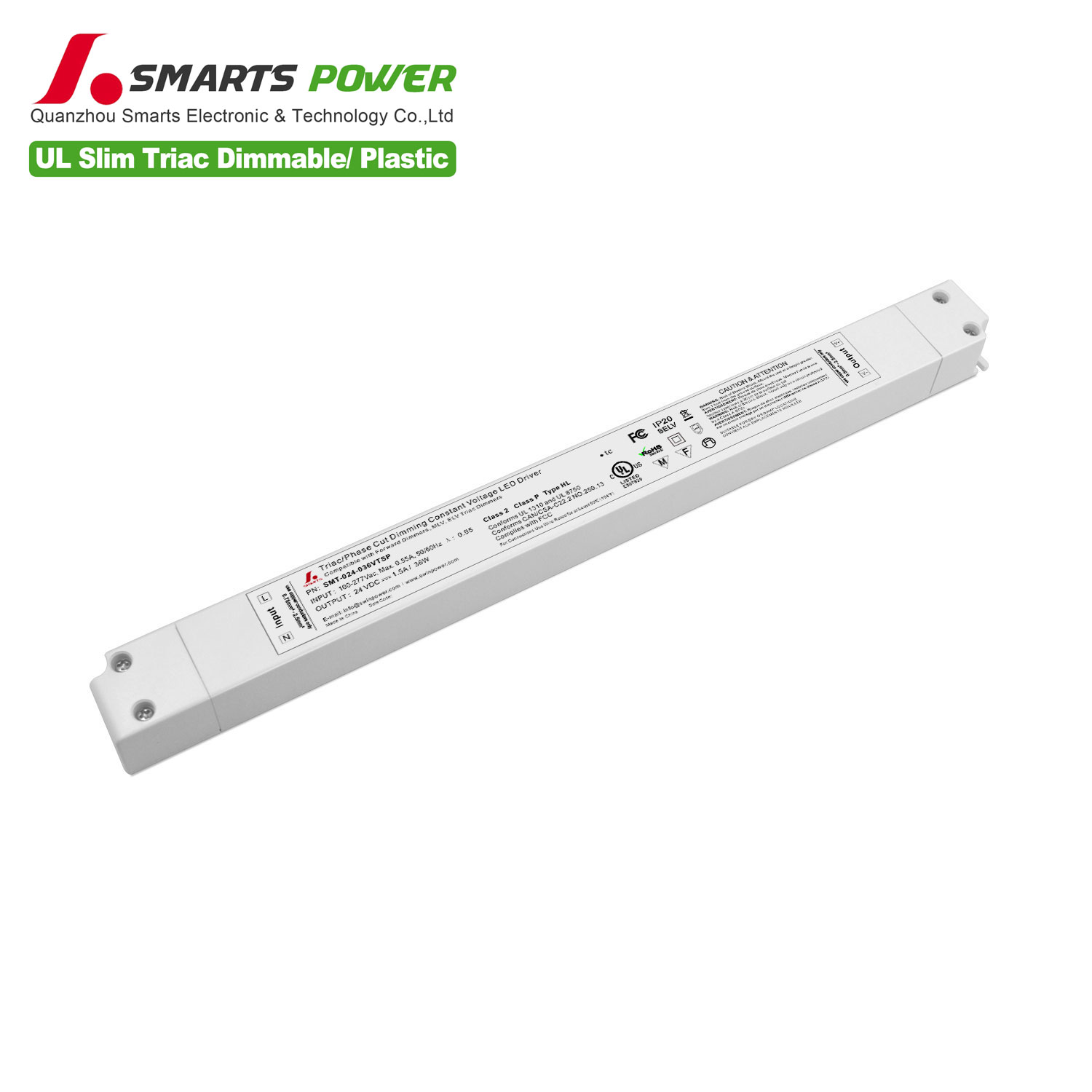

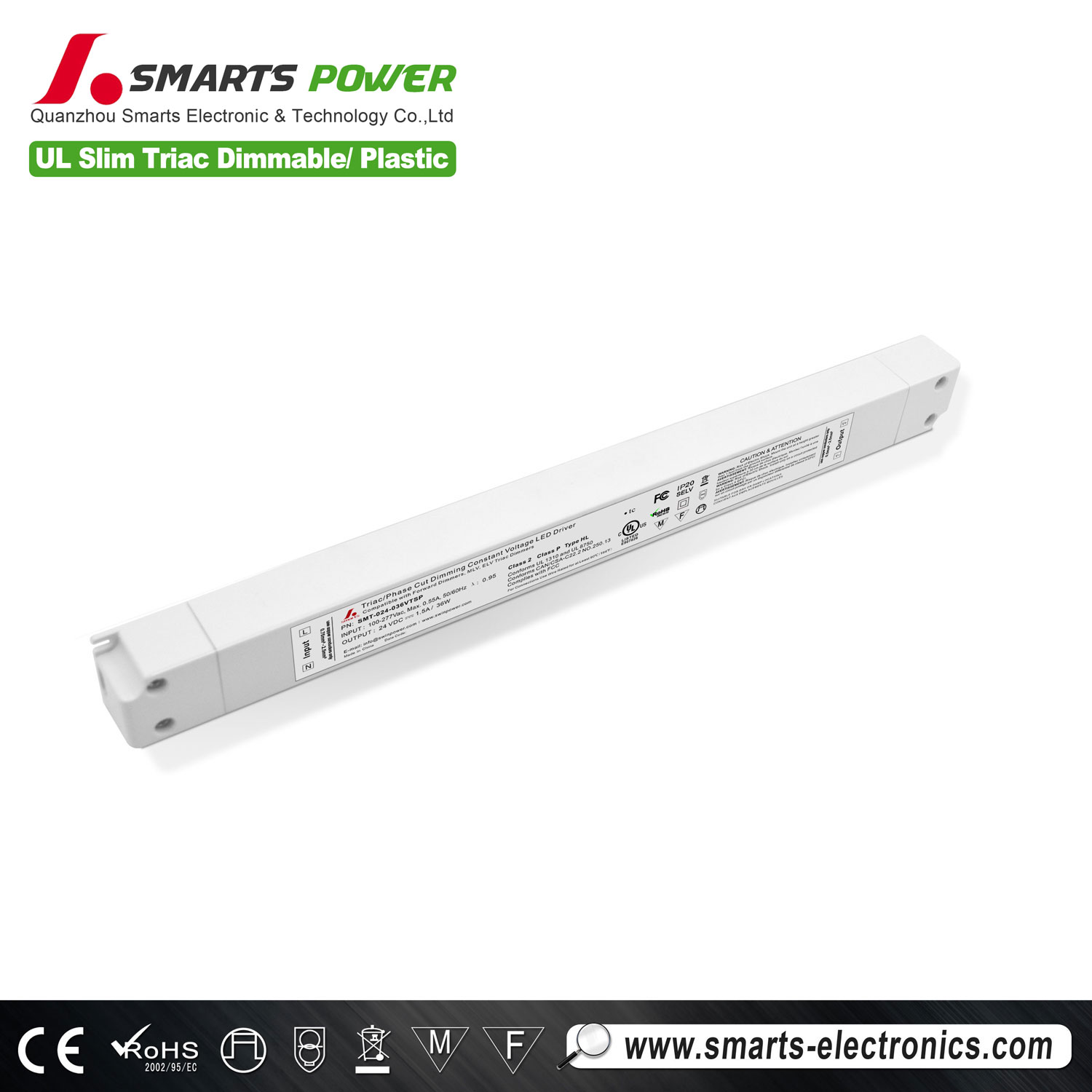

Triac Dimmable Constant Voltage LED Strip Driver
Production Lead Time:
7 day(s)
Weight:
0.35 kg
Model No.:
SMT-024-036VTSP
Brand:
SMARTS
Colour:
White
Size:
260 x 32 x 20mm (L x W x H)
Port:
Xiamen
Type of Payment:
PayPal, Western Union, Bank Transfer, Private Account, Alibaba Trade Assurance
Minimum Order Quantity:
1
Power:
Low Power
Fitting:
LED Driver
Strip light:
Flexible, Mini, Linkable, Multi-Colour, Heavy Loading
Certification:
RoHS , UL
Warranty:
7 year(s)
Output Voltage(V):
24DC
Input Voltage(V):
100-277AC
Input Signal:
Single Input
Output Signal:
Single Output
Description
Contact Supplier
Description
100-277 Vac triac dimmable 36 watt constant voltage led strip driver
Features
Features
- Output constant voltage type
- Input voltage range 100-277VAC
- Class 2, Class P, Type HL approval
- Built-in PFC function / Efficiency > 82% / PF> 0.99
- Dimming range: 0~100% / load: 5~100%
- Protections:short circuit/over voltage/over heat
- IP20 design for indoor dry or damp environment installations
- Cooling by free air convection
- Work with leading edge and trailing edge triac dimmers available
- PWM output, does not change the color index
- Full protection aluminum housing, for dry, damp, wet location
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 7 years warranty
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
- Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
- Please try to use dimmers with power at least 1.5 times as the output power of the driver.
