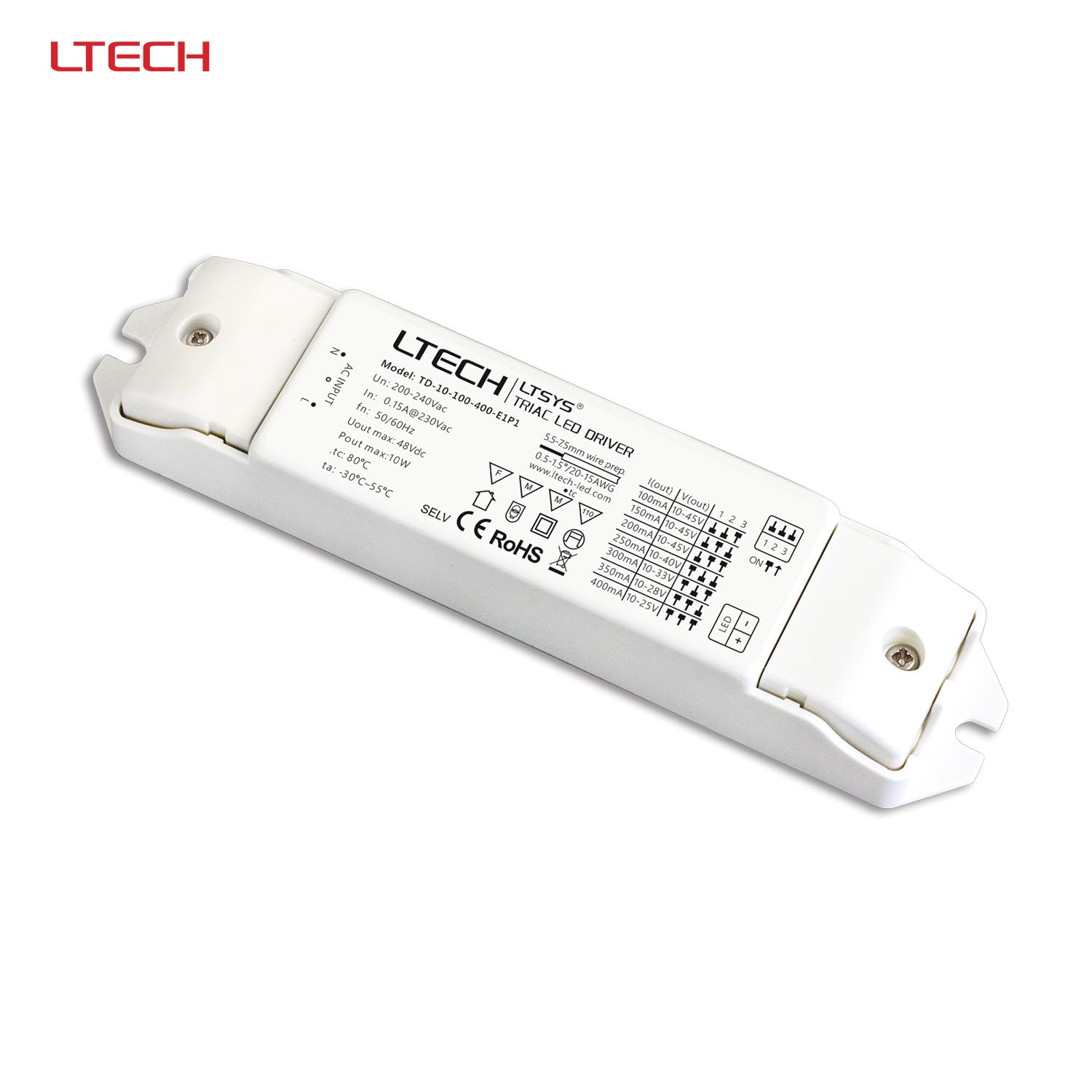

Triac Intelligent LED Dimming Driver
Model No.:
TD-10-100-400-E1P1
Brand:
LTECH
Certification:
CE, EMC, FCC, LVD, SAA
Warranty:
3 Years
Output Voltage(V):
10-45
Input Voltage(V):
200-240
Input Signal:
Triac
Output Signal:
PWM
Description
Contact Supplier
Description
- Dimming interface: Triac/ELV
- Apply leading edge/trailing edge
- Triac dimmers and dimming system
- Built-in high performance MCU
- Dimming curve can be customized
- Dimming Range:0--100%
- LED start at 0.1% possible
- Multi-current & wide voltage, suitable for different power LED
- Short circuit/over-heat/over load protection
- Class 2 power supply, full protective plastic housing
- Compliant with Safety Extra Low Voltage standard
- Efficiency: 82%
- Input Voltage: 200-240VAC
- Output Voltage: 10-45VDC
- Constant current output: 10mA-400mA
- Output Power: 1W-10W
- Working temperature: -30--55 degree centigrade
- Dimension: 135x30x20mm(LxWxH)
- Package size: 140x34x23mm(LxWxH)
- Weight(G.W) 90g
