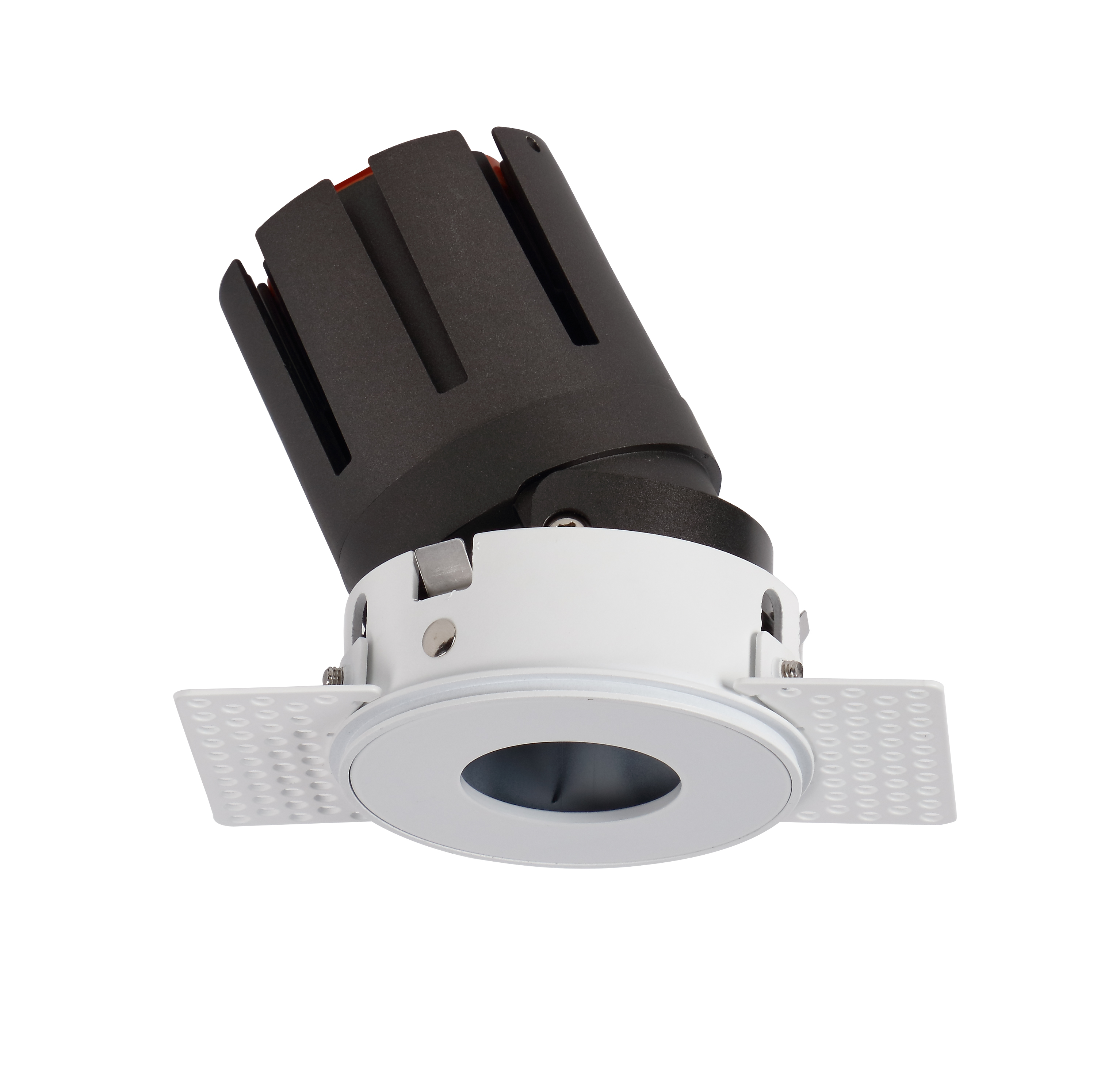

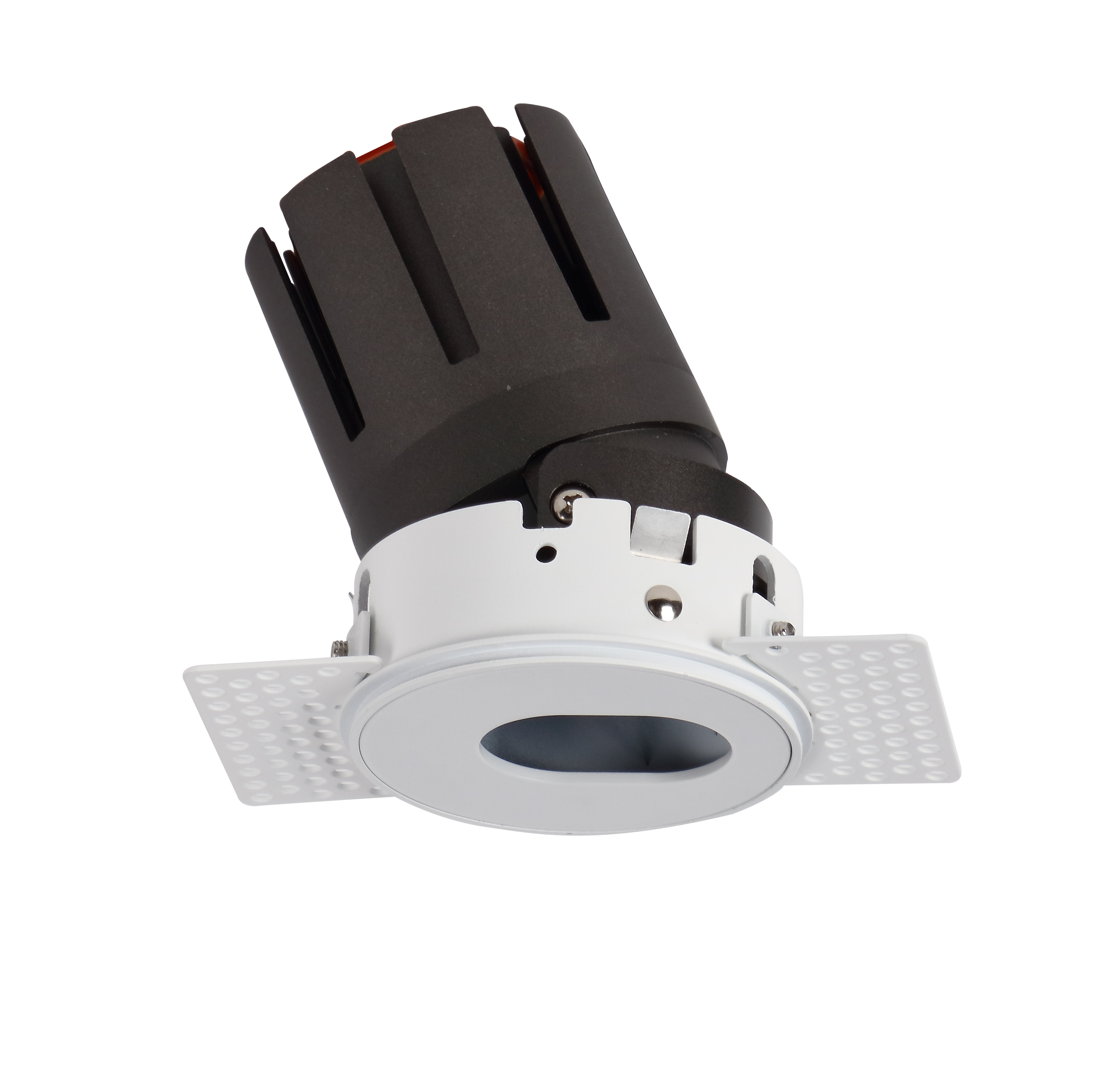

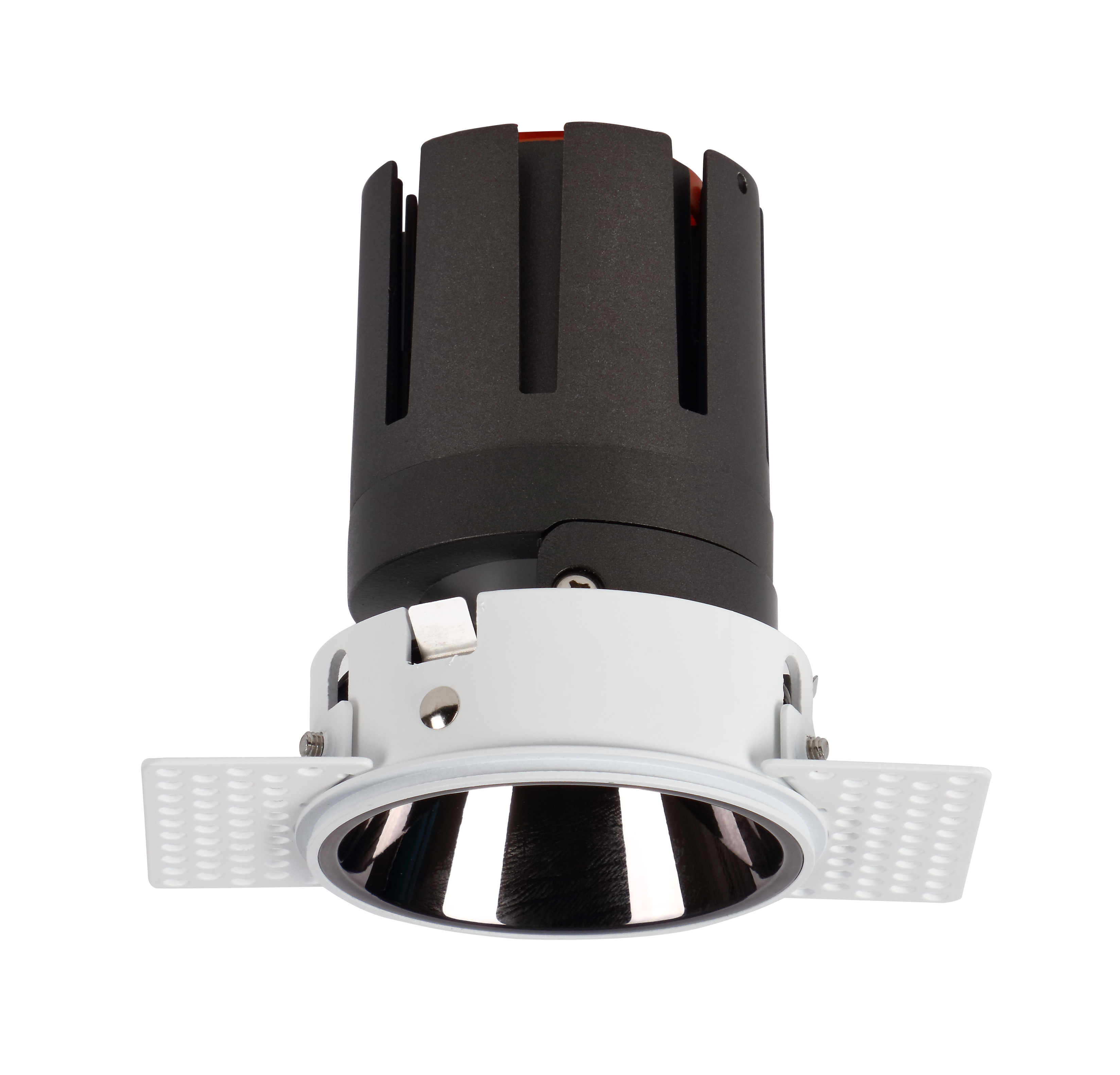

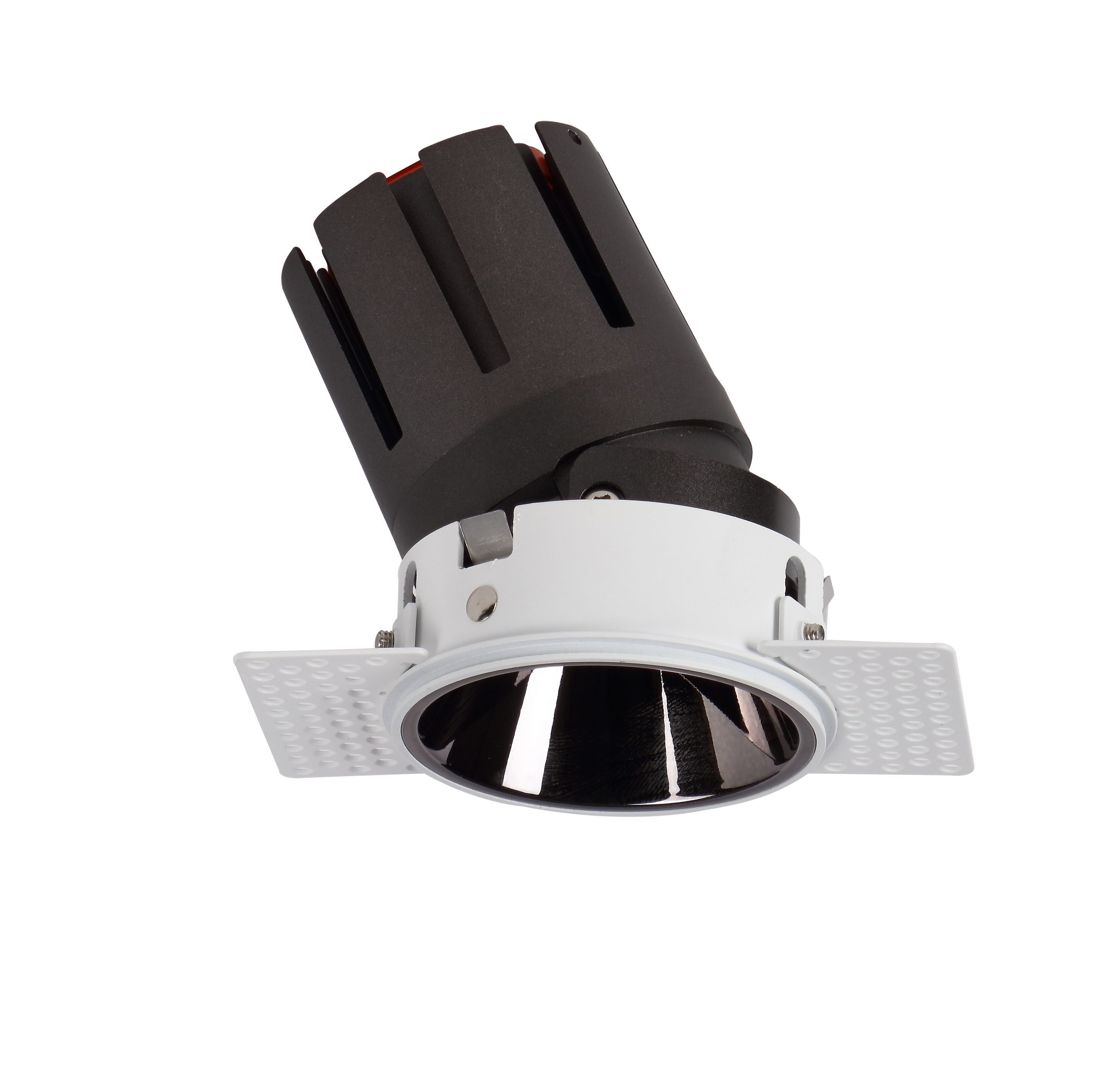

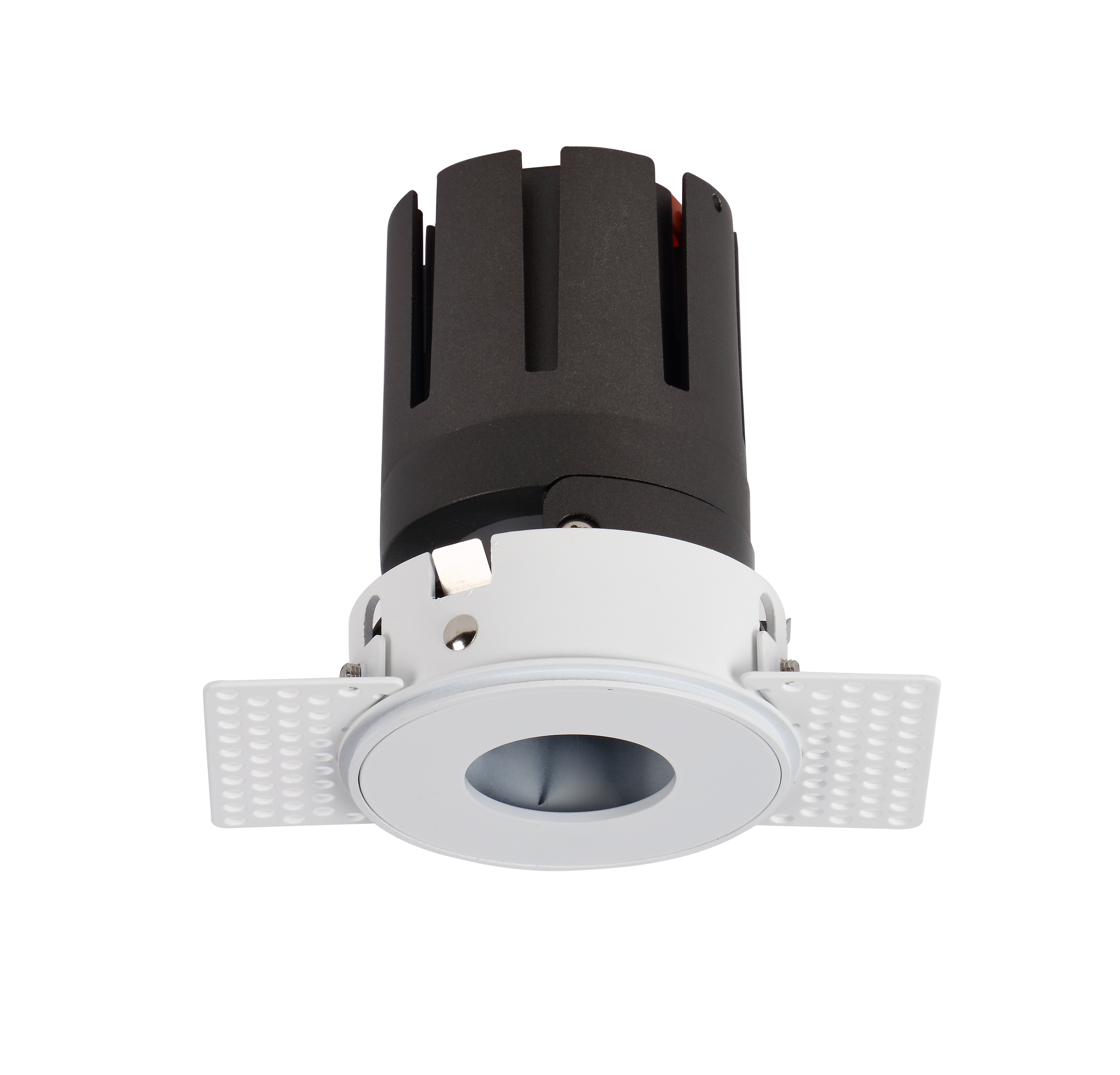

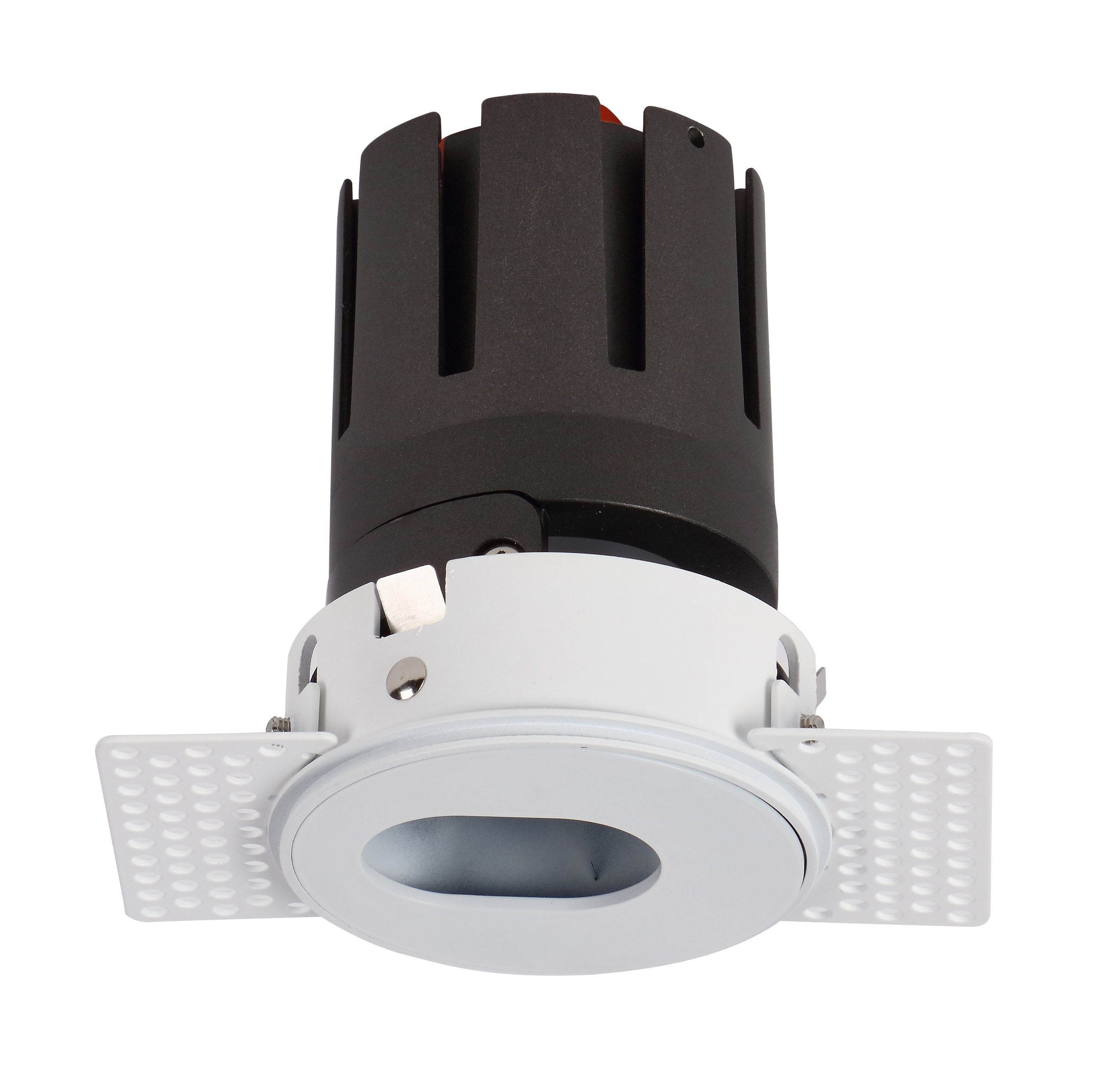

Trimless led downlight 20w 100mm cutout anti-glare UGR<19
US $11.40 - US $18.05
US $12.00 - US $19.00
Production Lead Time:
7-15 day(s)
Shipping Method:
air/sea
Brand:
KWT
Customised:
Yes
Material:
Aluminum
Feature:
Patent design
Including Bulbs:
Yes
Light Source:
LED
Is Dimmable:
Yes
Model No.:
TR10020GB
Lighting Style:
Modern
Pattern:
Dimmable
Size:
D82*H99mm
Weight:
0.62kg
Dimmable :
DALI/1-10V/ Traic dimmable
Description
Contact Supplier
Description
DALI / 1-10V/Triac dimmable led down light 7w 10w 12w 20w :
TR10020GB originally researched and developed by KWT.
COB CITIZEN chip, various beam angle 15°, 25°, 35° ,50°for option brilliant quality,
more than 50,000 hours life span
113mm diameter round face cover, use international top
anti-glare design with various free replacement accessories, non-
flflicker driver, triac dimmable and 1-10V dimmable to fifit different dimming
system, 5 years warranty
Details:
| Nominal wattage | 20W |
| Input | 100-240V/220-240V 50/60Hz |
| Output | 33VDC 600mA |
| Color temperature | 2700K/3000K/4000K |
| Color rendering index | >90 |
| Beam angle | 15°/25°/35°/50° |
| 2700k Luminous flflux | 15° 1473lm/25° 1680lm/35° 1711lm/50° 1517lm |
| 3000k Luminous flflux | 15° 1628lm/25° 1793lm/35° 1830lm/50° 1605lm |
| 4000k Luminous flflux | 15° 1985lm/25° 2195lm/35° 2191lm/50° 1942lm |
| Product color | White |
| Dimming | No Dim/Triac Dim/1-10V Dim |
High quality citizen cob led, CRI>90, SDCM<3
Anti-glare design with various free replacement accessories
Universally adjustable, 0-30° in vertical, and 360° in horizontal
structure, easier to assemble, install and
disassemble, no damage to the ceiling flfloor
Family structure appearance design to meet with the
uniform aesthetic requirement
Long life,>50,000 hours, 5 years warranty
Packing Details:
| Product model | TR10020GB | |
| Packaging unit | Folding carton box | Shipping carton box |
| Packaging Qty | 1pcs | 18pcs |
Dimensions | 115×165×140mm | 370×350×460mm |
| Volume | 2.65 dm³ | 59.57dm3 |
| Gross weight | 0.62kg | 11.16k |
Installation:
1.Open the hole in the ceiling
2.Connect the power lead with the terminal block of the led
driver (Picture two)
3.As shown in the following fifigure, the lamps mounted in
the mounting hole, and ensure string (Picture three)
