Trinocular Microscope for Gemology
Production Lead Time:
14 day(s)
Model No.:
STEMI 305 trino
Brand:
CARL ZEISS
Colour:
White
Port:
New Delhi
Type of Payment:
T/T
Minimum Order Quantity:
1
Types:
Gemmological Instruments
Weight:
25 kilogram
Customised:
Yes
Description
Contact Supplier
Description

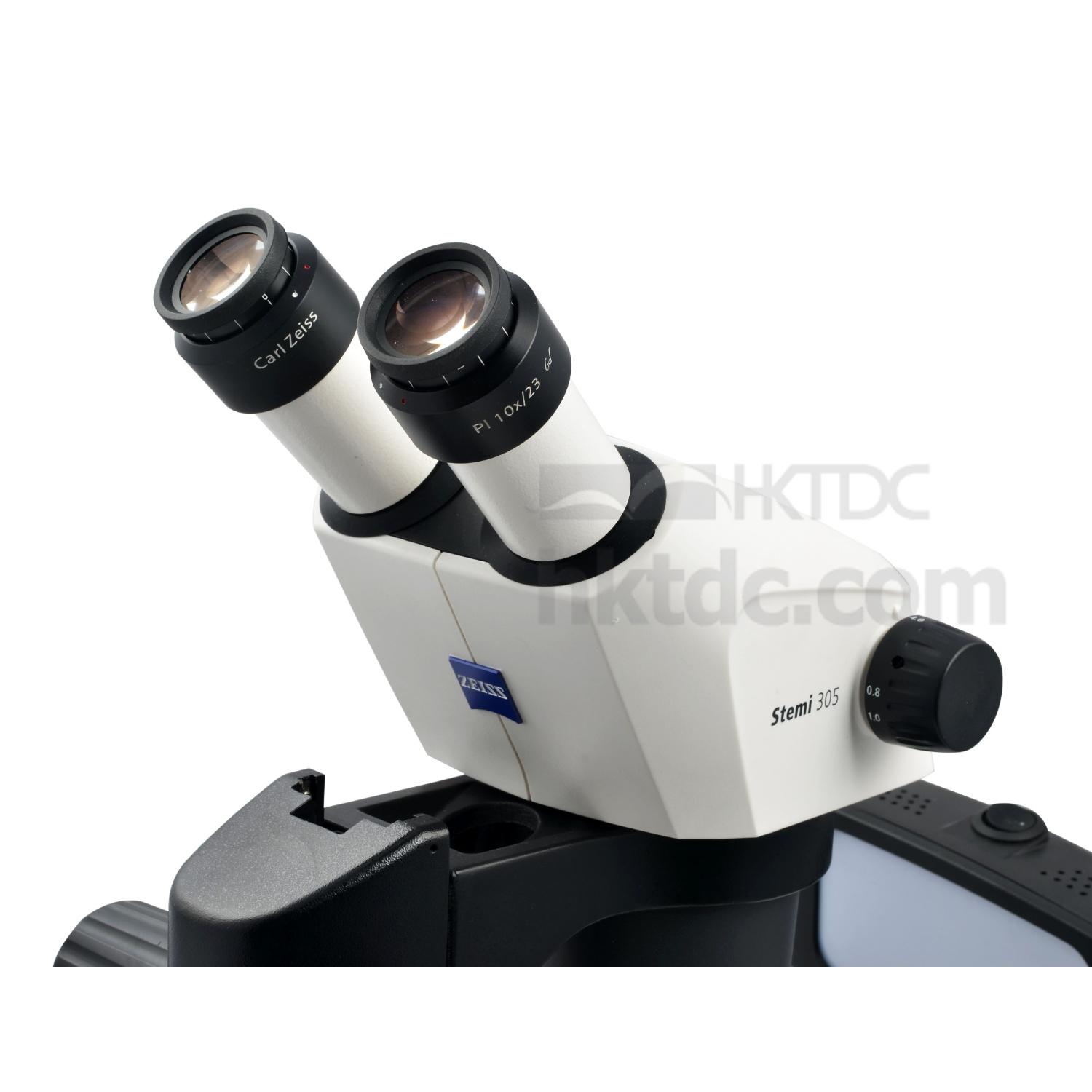

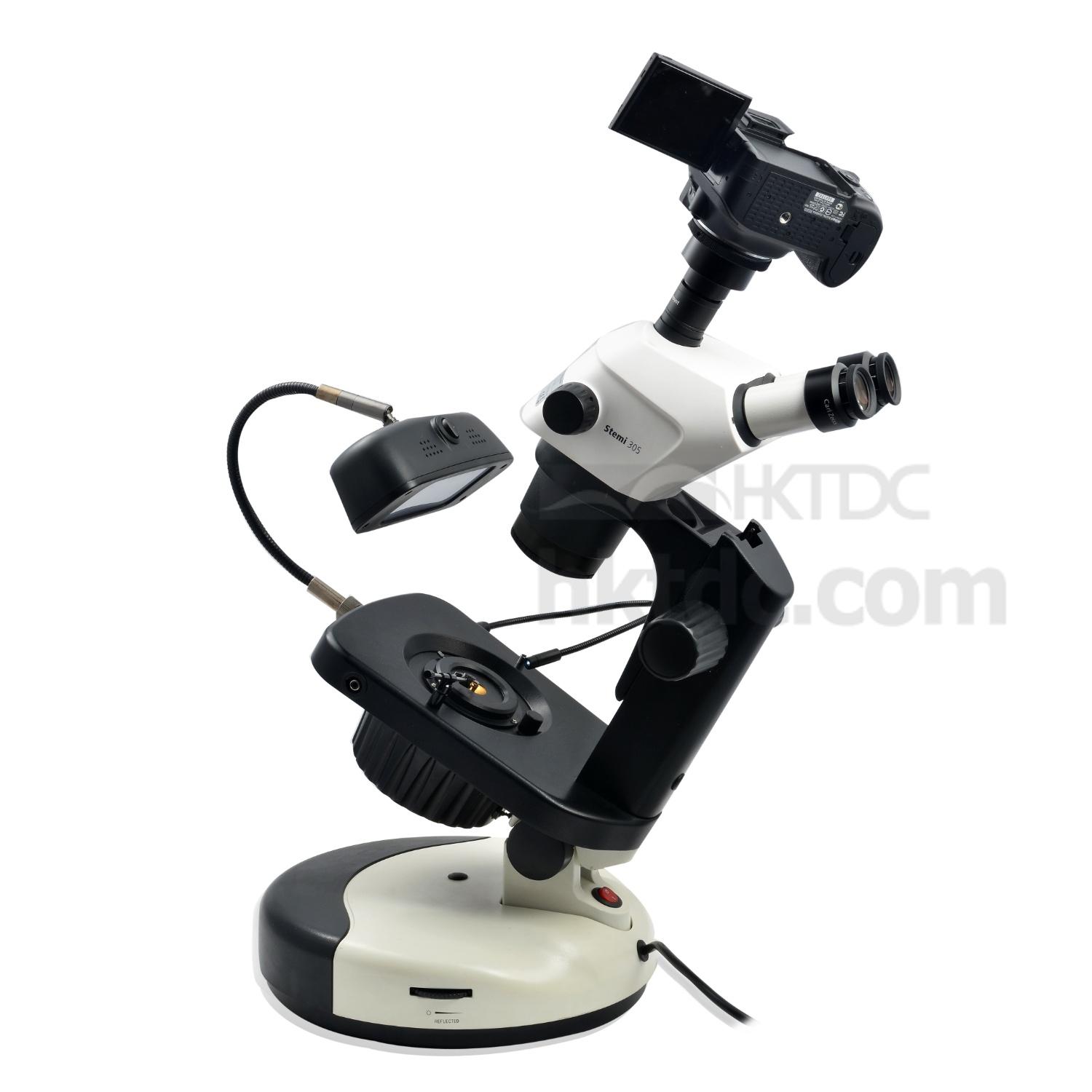

Carl Zeiss Stemi 305 Trinocular Microscope For Gemology
This ZEISS trinocular optical system comes with 10x eyepieces for 8x - 40x magnification and a wide viewing field for objects up to 23mm. Outstanding Optics Design:
Salient Features:
This ZEISS trinocular optical system comes with 10x eyepieces for 8x - 40x magnification and a wide viewing field for objects up to 23mm. Outstanding Optics Design:
Salient Features:
- Apochromatic corrected ZOOM optics of ZEISS.
- Sharp, distortion-free 3D image over the whole visual field.
- Mechanical corrected ZOOM curve for largest ZOOM range 5 : 1.
- Sharp 3D image in each ZOOM position.
- Distortion-free 10x eyepieces with wide field of view 23 mm at 8x.
- Individual diopter correction at each eyepiece.
- Eyepiece adjustment 55-75mm.
- Working distance 110mm (3,6").
- Specifications of the BASE:
- Bright Field, dark field (7W Halogen) and 7W fluorescent illumination
- Iris Diaphragm: 2mm-41mm
- Working Distance: 110 mm
- 0-325 degrees rotatable base
- Inclinable upto 38 degrees for better comfort and view
- Voltage: 100V to 240V
