    Ttian LED High Mast Light
    Share this page
    US $120.00 - US $700.00
    Production Lead Time:
    15-20 day(s)
    Shipping Method:
    Express/Air/Train/Sea shipment on request
    Power:
    250W-1250W
    Lumen Efficiency:
    140lm/w(160lm/w on request)
    CCT:
    3000/4000/5000/5700/6500K
    CRI:
    Ra>80(Ra>90 optional)
    Chip Brand:
    Lumileds/Osram
    Beam Angle θ/2:
    10°/15°/25°/45°/60°/90°/65*25°
    Light Decay Rate:
    Less than 3% in 6,000Hours
    Lifespan:
    ≥50,000Hrs
    Input Voltage:
    100-240VAC 50/60Hz
    Power Factor:
    PF>0.95
    THD:
    <15%
    Driver Brand:
    Meanwell/Sosen
    Material:
    Die-cast Aluminum Housing+Polycarbonate Lens+Tempered Glass Cover(on request)
    Degree of Protection:
    IP66 & IK08
    Finish:
    Black
    Installation:
    Mounted
    Working Temperature:
    -30℃~+50℃
    Storage Temperature:
    -40℃~+70℃
    Certificate:
    CE, CB, RoHS
    Warranty:
    5 years
    Optional Functions:
    0-10V/PWM/DALI/DMX Available on Request
    Description
    Certification & Document
    Contact Supplier
    Description

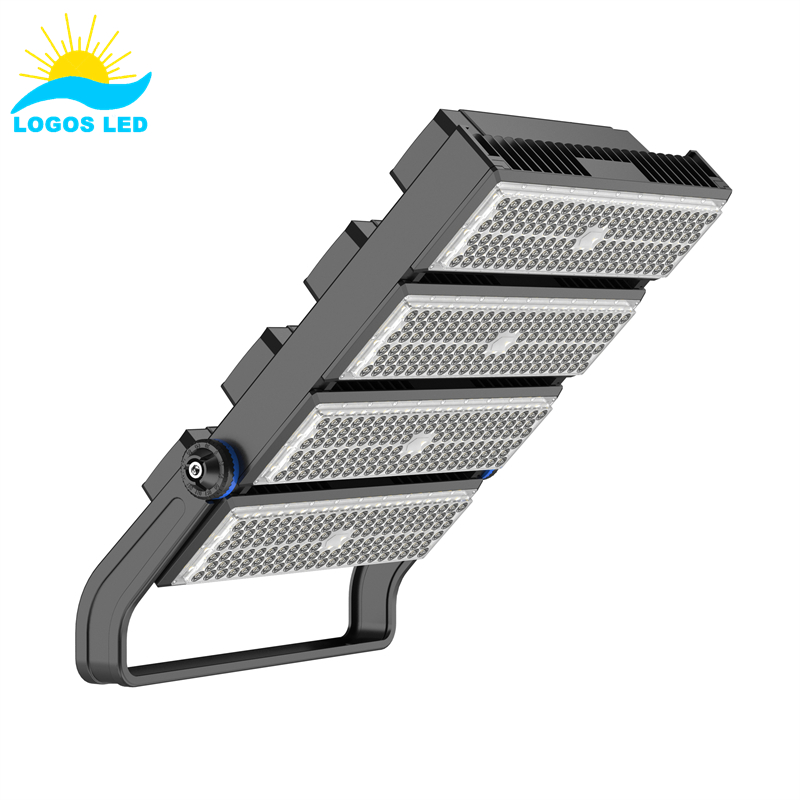

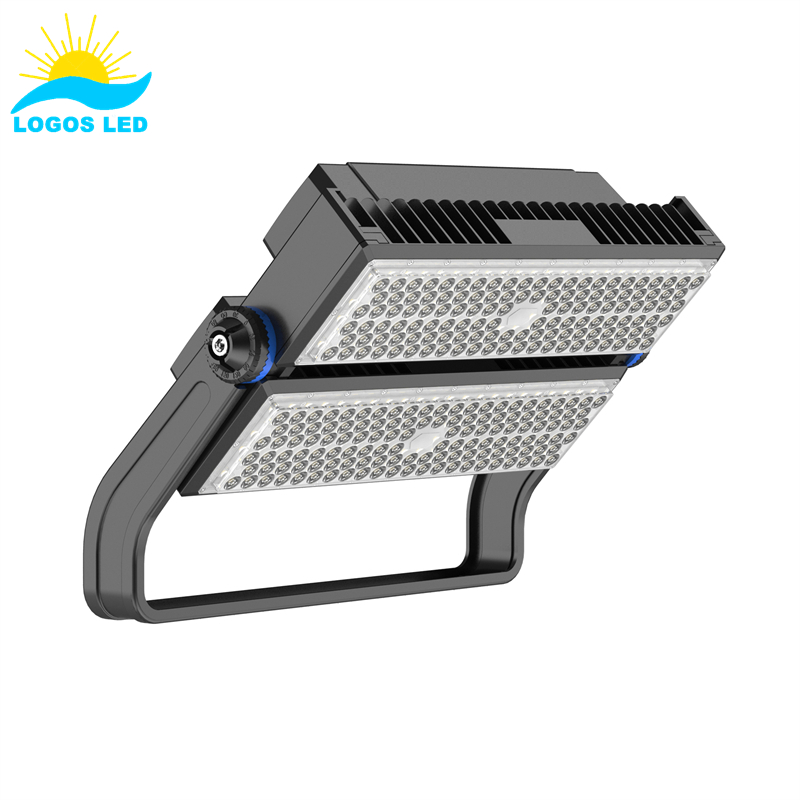

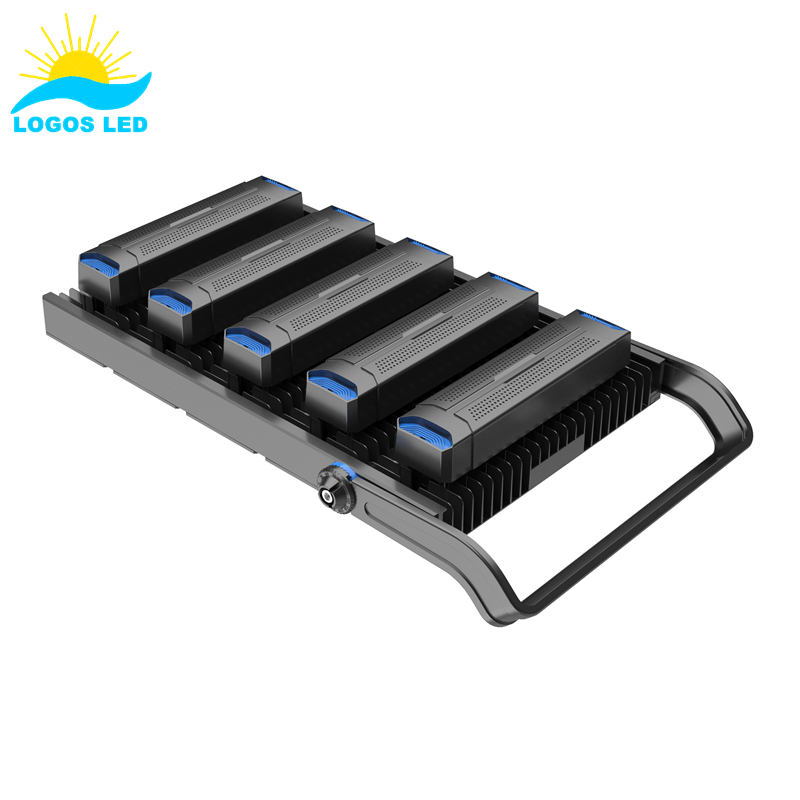

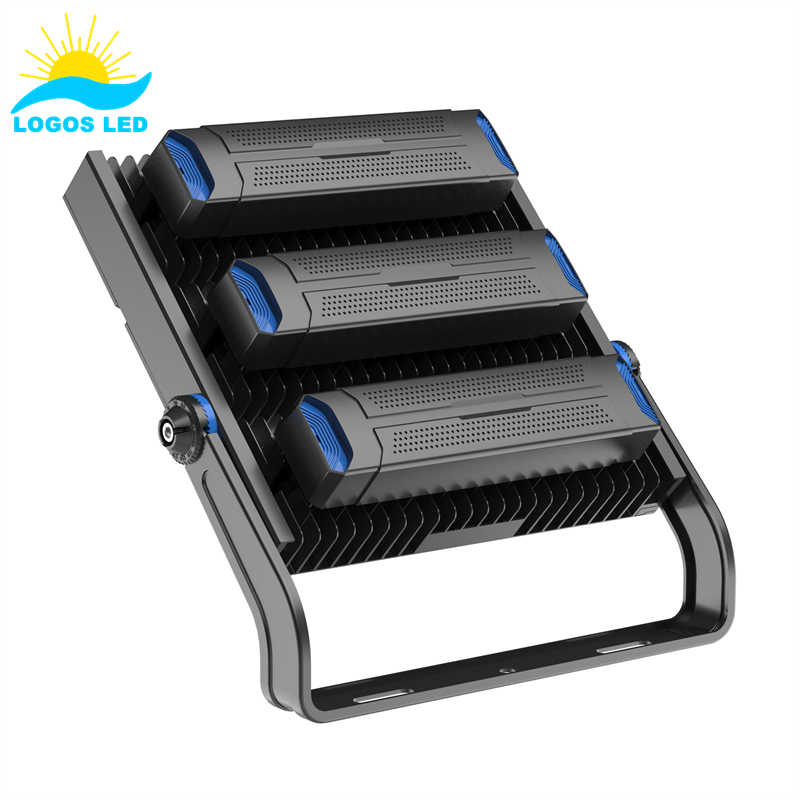

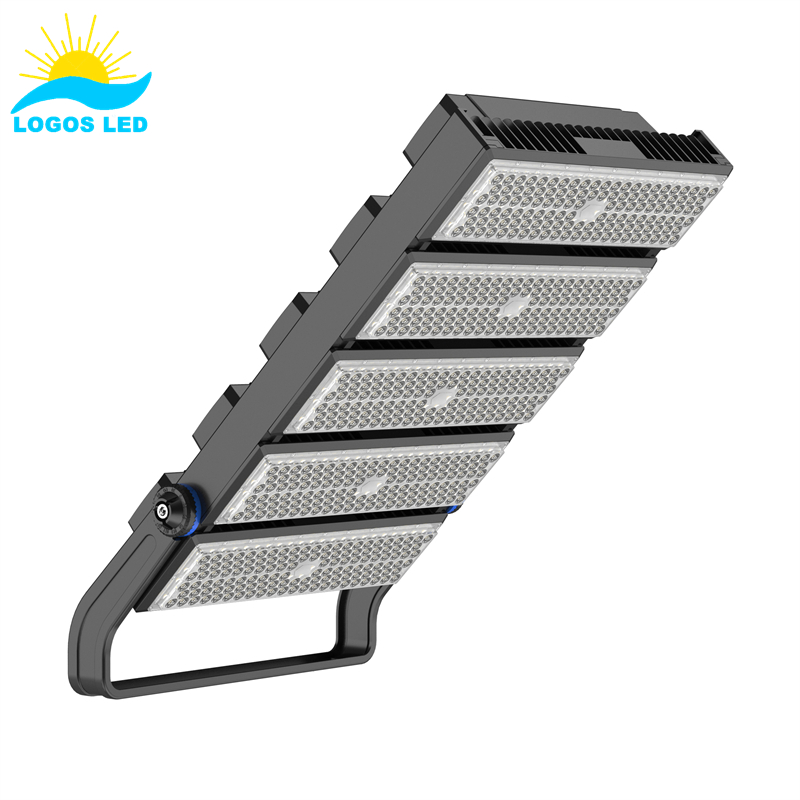

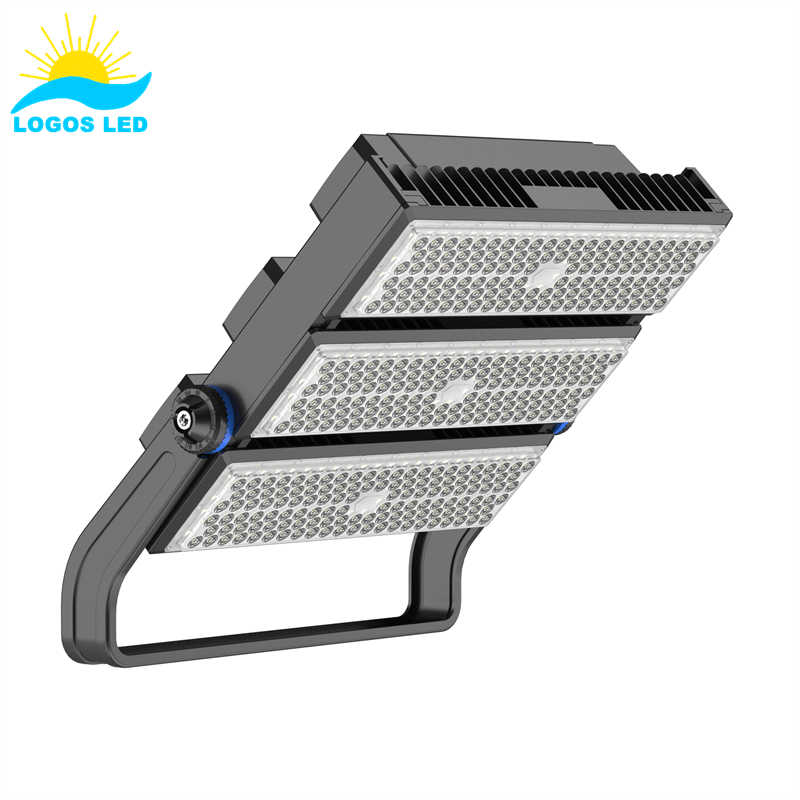

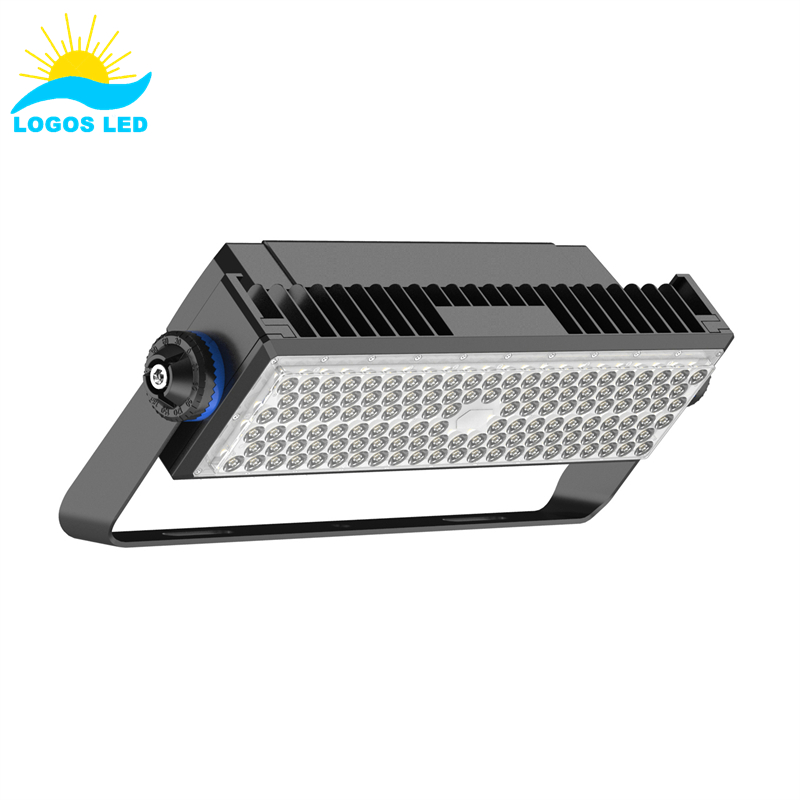

    The Titan LED High Mast Light is an advanced lighting solution designed to replace traditional halogen lamps in stadiums, sports fields,wharf, and large outdoor areas. It offers superior illumination, energy efficiency, and durability. With its high-quality LED technology, precise optics, and robust construction, the Titan LED high mast light provides optimal lighting performance. Designed with anti-corrision painting and additional Hot-Dip Galvanizing(HDG) bracket, it is suitable for harsh sea environments, ensures improved visibility, reduced energy consumption, and a longer lifespan compared to traditional lamps.

    Features

    - Die-cast Aluminum heat sinking, high thermal conductivity enables rapid heat dissipation to the outside, excellent thermal management & compact structure;

    - Separate modular design, 300W each modular integrated with driver;

    - Packed with reputed brand top quality LEDs and power supply to ensure the product reliability and life expectancy, 5 years warranty;

    - IP66 structural waterproof design; Double surge protection: driver & extra 10KV SPD;

    - Anti UV optical lens, IK08 and light transmittance > 94%, professional light distribution with different beam angles for various applications;

    - Optional tempered glass cover, apply in harsh conditions;

    - Spill shield to reduce light pollution.


    Certification & Document
    Certificate Name
    Issued By
    Certificate Type
    Valid Date
    LogosLED CE-LVD Cert for LED High Mast Light
    Issued By
    LCS
    Certificate Type
    CE
    Valid Date
    14 May 2024
    -
    (N/A)
    LogosLED RoHS Cert for LED High Mast Light
    Issued By
    LCS
    Certificate Type
    RoHS
    Valid Date
    29 Apr 2024
    -
    (N/A)
    LogosLED CB Cert LED High Mast Light
    Issued By
    TUV
    Certificate Type
    CB
    Valid Date
    08 May 2024
    -
    (N/A)
    LogosLED CE-EMC Cert for LED High Mast Light
    Issued By
    LCS
    Certificate Type
    EMC
    Valid Date
    28 Apr 2024
    -
    (N/A)
