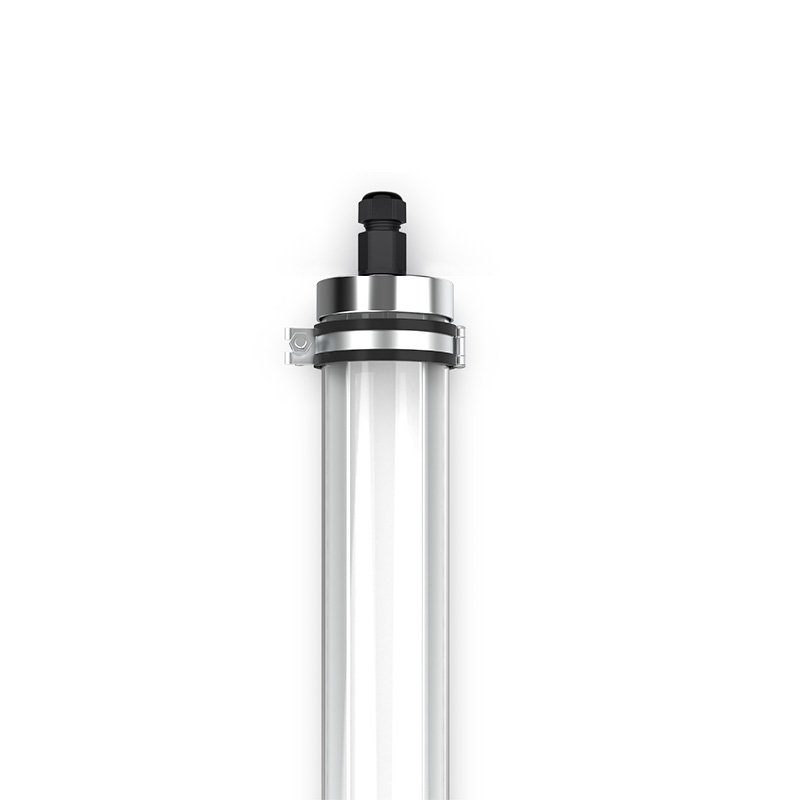

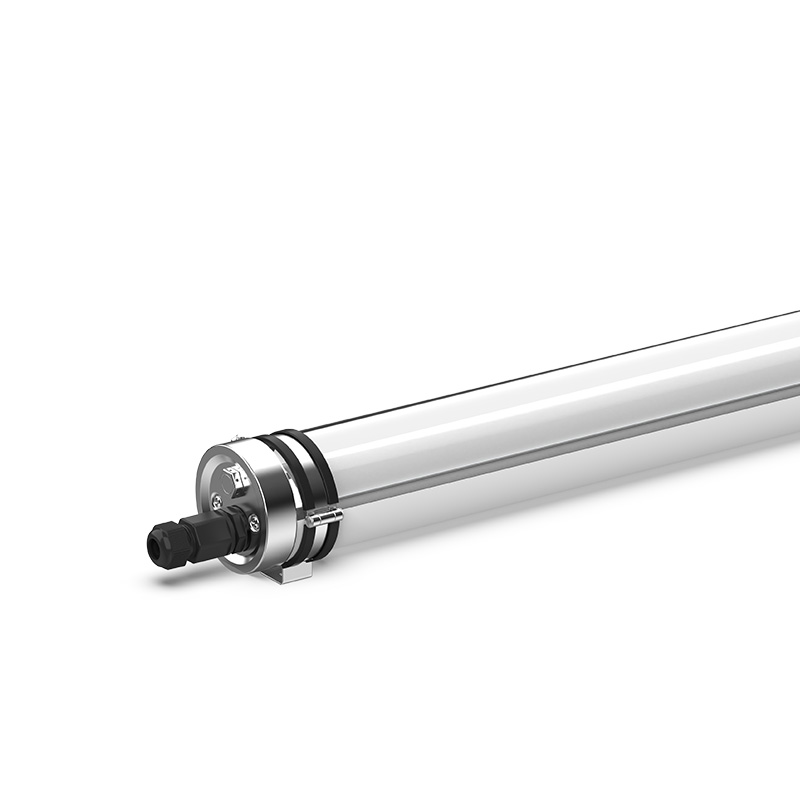

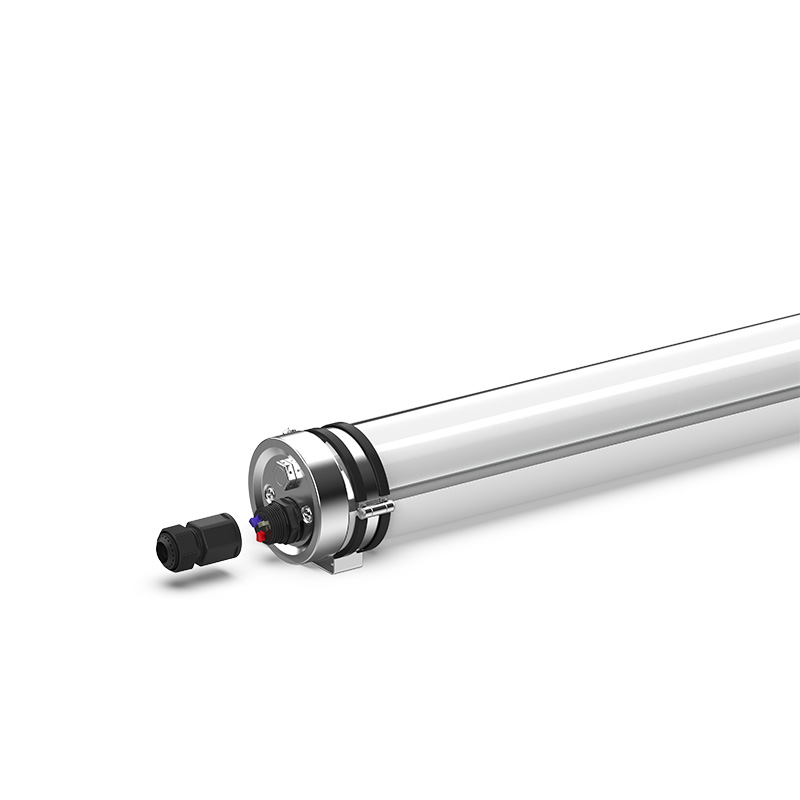

    Tube Style LED Tri-proof Light
    Share this page
    US $24.60 - US $218.50
    US $25.89 - US $230.00
    Production Lead Time:
    20-25 day(s)
    Shipping Method:
    EXW
    Brand:
    TUBU
    Customised:
    Yes
    Is Dimmable:
    Yes
    Wide beam angle:
    120°
    Certificate:
    CE, RoHS Certified
    Description
    Contact Supplier
    Description

    TUB's tube type LED Tri-Proof Lights offer exceptional durability and performance. With IP67 and IP69K ratings, it is highly waterproof and dustproof, making it suitable for various indoor and outdoor applications. The light features a solid PMMA IK08/PC IK10 construction that is impact resistant and durable. It can withstand water pressures up to 100bar (1450psi) and temperatures up to 80°C. The wide beam angle of 120° provides ample lighting coverage, while its A+ energy efficiency rating ensures low power consumption.

    The entire luminaire (including LEDs, driver, and housing) is also warranted for 5 years. It is also CE and RoHS certified and complies with international quality and safety standards.

    Features:
    • IP67 & IP69K
    • PMMA IK08/PC IK10
    • Against water pressure of 100bar(1450psi) and temperature of 80℃
    • System efficiency up to 130lm/W • High CRI> 80
    • Environmentally friendly, no mercury, No UV, No IR
    • Wide beam angle of 120° • Energy Efficiency Grade: A+
    • Quick Start instant 100% luminous flux
    • 5 Year Warranty on complete fixture. (LEDs, Driver, & Housing)
    • Certificate: CE, RoHS Certified
    • Surface Mount or Suspended
    Tech Specs:
    Product CodeTBL92F-20W-TTBL94F-40W-TTBL95F-50W-TTBL95F-60W-T
    Power20W40W50W60W
    Input Voltage200-240VAC/100-277VAC (50/60HZ)
    Input Current0.09A@220VAC0.19A@220VAC0.23A@220VAC0.28A@220VAC
    Power Factor0.90@220VAC
    Dimming Option0-10V/Dali
    Color Temperature3000K/4000K/5000K/6000K
    CRI>80Luminous Flux2600Lm±5%5200Lm±5%6500Lm±5%7800Lm±5%
    Efficiency130Lm/W±5%
    LED BrandLumileds/Hongli
    Beam Angle120°
    Operation Temperature-20℃~+40℃
    Storage Temperature-20℃~+60℃
    Life SpanTa 40℃ L70>54000Hours
    IP ClassIP67 & IP69K
    IK ClassPMMA IK08 & PC IK10
    CertificateCE, RoHs, CB, IK10, IP69K, ENEC, RCM, DLG ( Ammonia-resistance)
    Lamp Body MaterialMilky PC/PMMA Housing & 304/316 Stainless Steel End Caps
    Product Size ( mm )75*55275*115275*145275*1452
    Packing Size ( mm )730*260*2601330*260*1801630*260*1801630*260*180
    Quantity / Carton9pcs6pcs6pcs6pcs
    Gross Weight ( kg ) ± 0.312152323
    InstallationSurface Mount & Suspension Mount
