Tubular ECO IP65 LED Tri-Proof Light
US $22.51 - US $198.55
US $23.69 - US $209.00
Production Lead Time:
20-25 day(s)
Shipping Method:
EXW
Brand:
TUBU
Customised:
Yes
Light Source:
LED
Description
Contact Supplier
Description

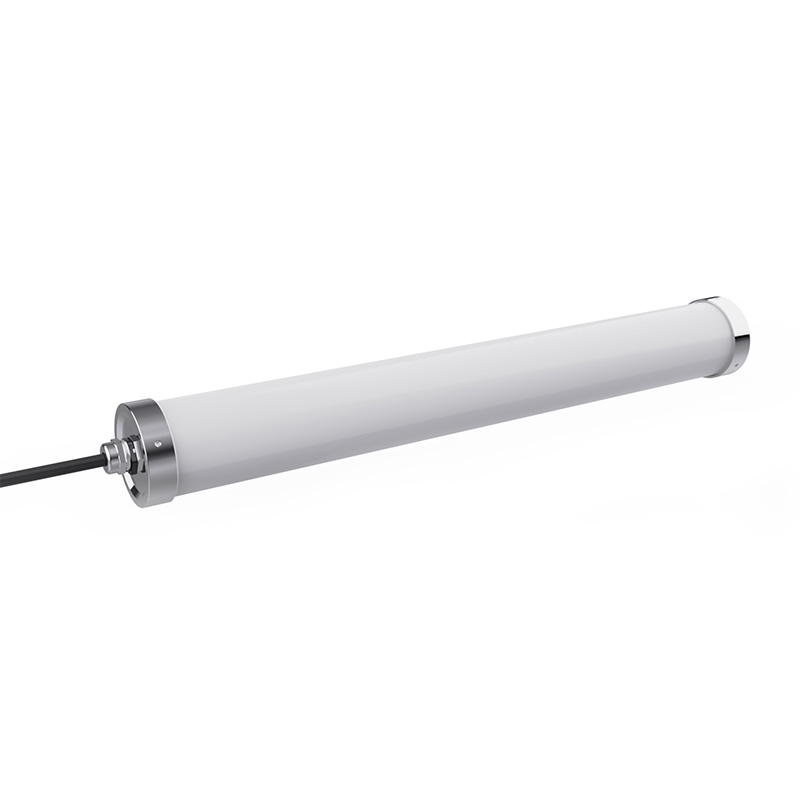

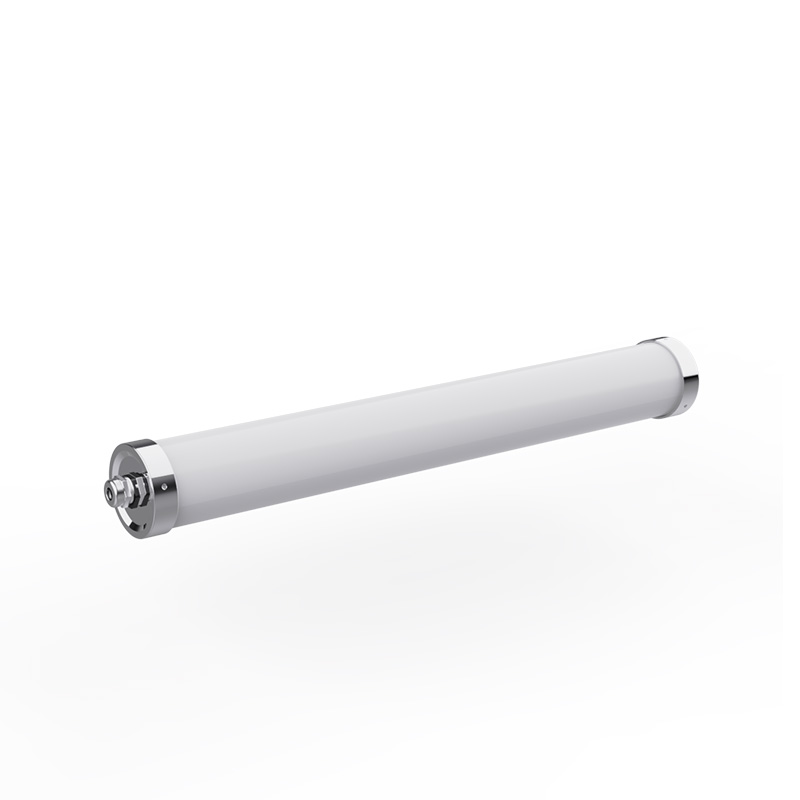

The TUBU Tubular ECO IP65 LED Tri-proof Light for quick installation is a linear LED product that offers high efficiency, reaching up to 170 lm/W. It is available in wattages of 20W, 40W, and 60W, making it suitable for a wide range of applications. Additionally, it provides flexible installation options, allowing you to choose between surface mount or suspension mount.
This Tubular ECO IP65 LED Tri-proof Light is designed with a PC cover that has passed IK10 impact testing, and there is also an option to choose PMMA IK08. For added convenience, you have the choice of including emergency battery backup and a 3-step dimming sensor function.
Features:
• IP65
• PMMA IK08/PC IK10

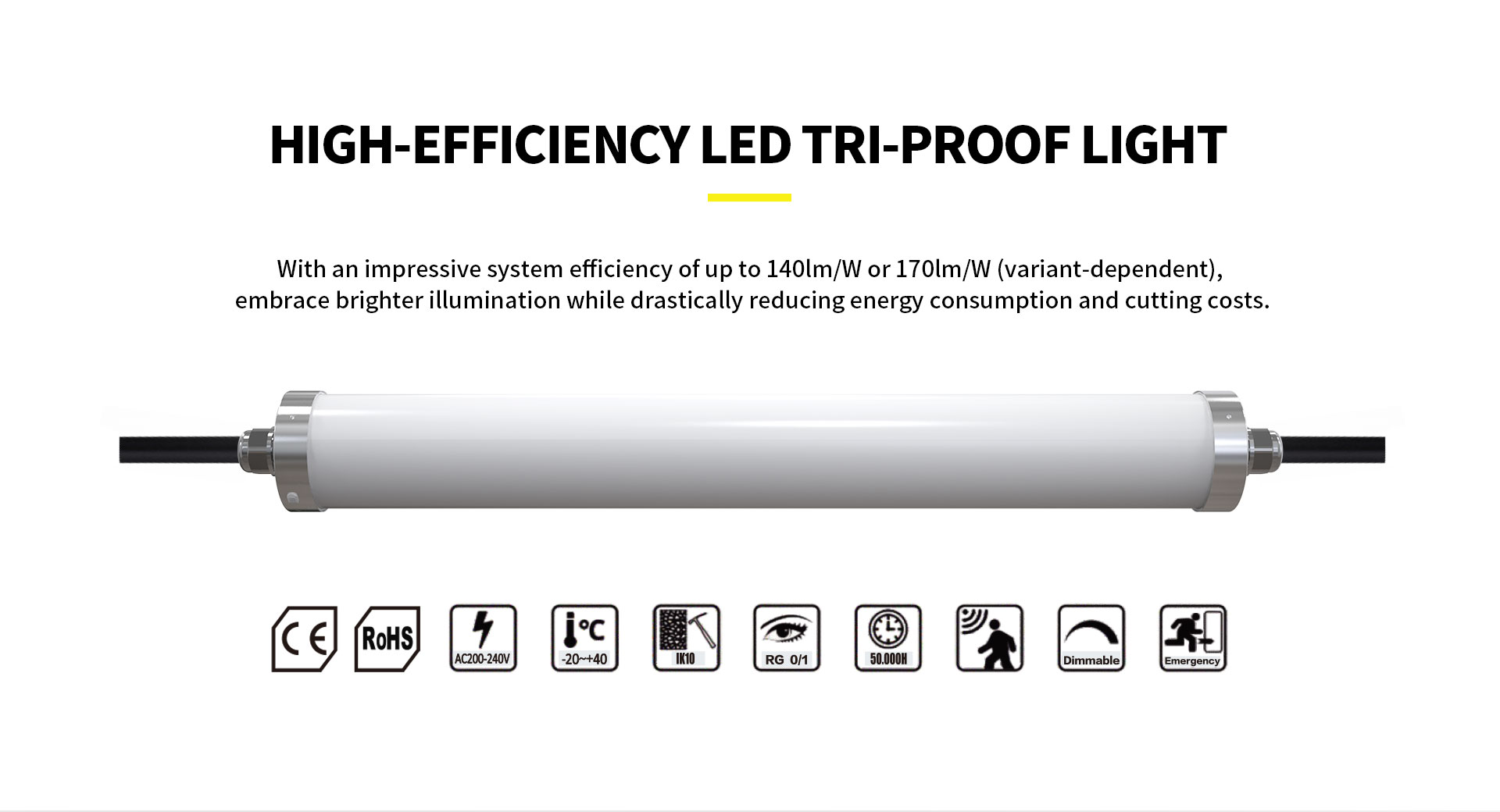

• System efficiency up to 170lm/W
• High CRI＞80
• Environmentally friendly, no mercury, No UV, No IR
• Wide beam angle of 120°
• Energy Efficiency Grade: A+
• Quick Start instant 100% luminous flux
• 5 Year Warranty on complete fixture. (LEDs, Driver&Housing)
• Certificate: CE, RoHS Certified
• Surface Mount or Suspension Mount
Tech Specs:
| Product Code | TBL182F-20W | TBL184F-40W | TBL185F-60W | |
| Power | 20W | 40W | 60W | |
| Wattage Adjustable | 13/16/20W | 25/30/35/40W | 40/50/60W | |
| Input Voltage | 200-240VAC/100-277VAC (50/60HZ) | |||
| Input Current | 0.09A@220VAC | 0.19A@220VAC | 0.28A@220VAC | |
| PF | 0.90@220VAC | |||
| Dimming Option | 0-10V/Dali | |||
| CCT | 3000K/4000K/5000K/6000K | |||
| RA>80 | Luminous Flux | 2800Lm±5% | 5600Lm±5% | 8400Lm±5% |
| Efficiency | 140Lm/W±5% | |||
| RA>80 | Luminous Flux | 3400Lm±5% | 6800Lm±5% | 10200Lm±5% |
| Efficiency | 140/170Lm/W±5% | |||
| LED Brand | Lumileds/Hongli 2835 | |||
| Beam Angle | 120° | |||
| Operation Temp | -20℃~+40℃ | |||
| Storage Temp | -20℃~+60℃ | |||
| Life Span | Ta 40℃ L70>54000Hours | |||
| IP Class | IP65 | |||
| IK Class | PMMA IK08/PC IK10 | |||
| Certificate | CE, RoHs | |||
| Material | PC/PMMA Housing & 304/316 Stainless Steel End Caps | |||
| Product Size ( mm ) | 75*552 | 75*1152 | 75*105*1452 | |
| Packing Size ( mm ) | 730*260*260 | 1330*260*180 | 1630*260*180 | |
| Quantity / Carton | 9pcs | 6pcs | 6pcs | |
| Gross Weight ( kg ) ± 0.3 | 12 | 15 | 23 | |
| Installation | Surface Mount & Suspension Mount | |||
