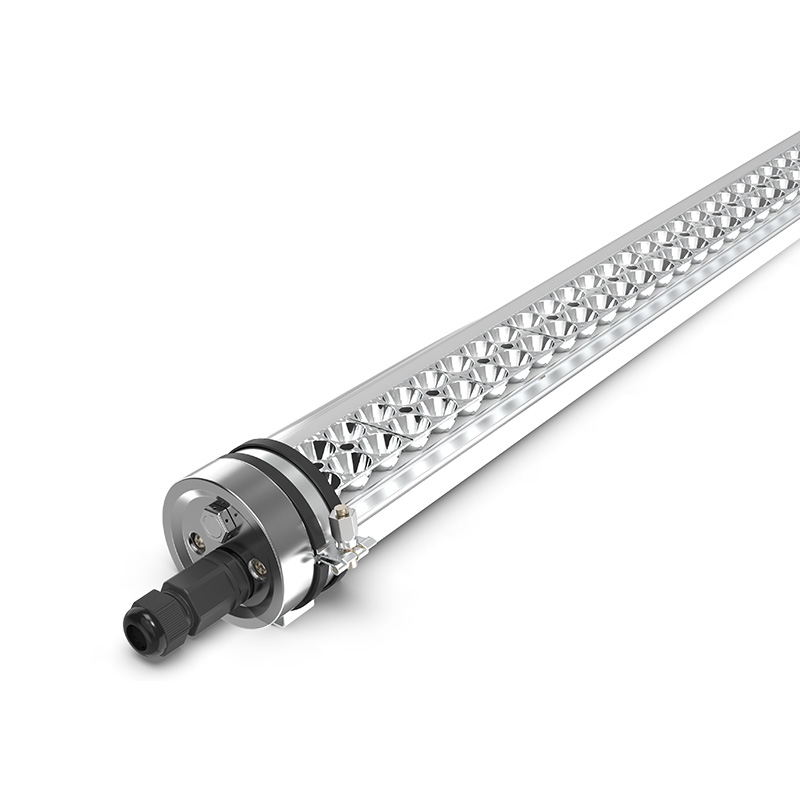

Tubular UGR<19 Low Glare LED Tri-Proof Light
US $24.88 - US $209.95
US $26.19 - US $221.00
Production Lead Time:
20-25 day(s)
Shipping Method:
EXW
Brand:
TUBU
Customised:
Yes
CCT:
3000K/4000K/5000K/6000K
Description
Contact Supplier
Description
TUBU Tubular ugr<19 Low glare LED Light is a highly durable and waterproof lighting solution. With its IP69 rating and milky white PC, which makes it resistant to 100bar water pressure and temperatures up to 80°C, it is ideal for a variety of ambient lighting applications. The system efficiency is as high as 150lm/W, and the high CRI exceeds 80, providing bright and accurate lighting. This multifunctional light can be used in schools, housing facilities, sports facilities, shopping centers, urban lighting, etc.
Our UGR＜19 Tri-proof light has received multiple professional certifications, including CE, ROHS, IP69K, IK10, ENEC, RCM, and CB.
Features:
• UGR＜19 Low glare(with clear cover&reflectors)
• PMMA Clear IK06/PC Clear IK10
• IP67&IP69K
• Against water pressure of 100bar(1450psi) and temperature of 80℃
• System efficiency up to 130lm/W
• High CRI＞80
• 304/316 stainless steel end caps, breather, mounting bracket
• BOKE isolated driver, flicker-free, ENEC/TUV/SAA/CE/C-tick certified
• Wide beam angle 40°/60°/90°
• CE, RoHS, Ip69K, IK10, ENEC, RCM, CB certificates
• 5 Year Warranty on complete fixture. (LED, Driver,&Housing)
• Standard material for end caps, breather, and surface mounting bracket is 304 stainless steel 316 material is available as an option
Tech Specs:
| Product Code | TBL194F-20W-DXG | TBL194F-40W-DXG | TBL194F-50W-DXG | TBL194F-60W-DXG | |
| Power | 20W | 40W | 50W | 60W | |
| Wattage Adjustable | 200-240VAC/100-277VAC(50/60HZ) | ||||
| Input Voltage | 0.09A@220VAC | 0.19A@220VAC | 0.23A@220VAC | 0.28A@220VAC | |
| Input Current | 0.90A@220VAC | ||||
| Dimming Option | 0-10V/Dail | ||||
| CCT | 3000K/4000K/5000K/6000K | ||||
| RA>80 | Luminous Flux | 2600Lm/W±5% | 5200Lm/W±5% | 6500Lm/W±5% | 7800Lm/W±5% |
| Efficiency | 130Lm/W±5% | ||||
| LED Brand | Lumileds/Hongli 3030 | ||||
| Beam Angle | 40°/60° UGR＜19°/90° UGR＜22 | ||||
| Operation Temp | -20℃~+40℃ | ||||
| Storage Temp | -20℃~+60℃ | ||||
| Life Span | Ta 40℃ L70＞54000Hours | ||||
| Operation Temp | IP67&IP69K | ||||
| IP Class | PMMA IK08/PC IK10 | ||||
| IK Class | CE,RoHs, CB, IP69K, RCM, ENEC | ||||
| Certificate | Milky PC/PMMA Housing&304/316 Stainless Stell End Caps | ||||
| Product Size ( mm ) | 75*552 | 75*1152 | 75*105*1452 | 75*105*1452 | |
| Packing Size ( mm ) | 730*260*260 | 1330*260*180 | 1630*260*180 | 1630*260*180 | |
| Quantity / Carton | 9pcs | 6pcs | 6pcs | 6PCS | |
| Gross Weight ( kg ) ± 0.3 | 12 | 15 | 23 | 23 | |
| Installation mode | Surface Mount & Suspension Mount | ||||
