Turn Probes (SUPICAL)
Production Lead Time:
90 day(s)
Brand:
NITTO SEIKO
Description
Contact Supplier
Description
Plunger turns with soft touch,
helps reducing re-typing count.

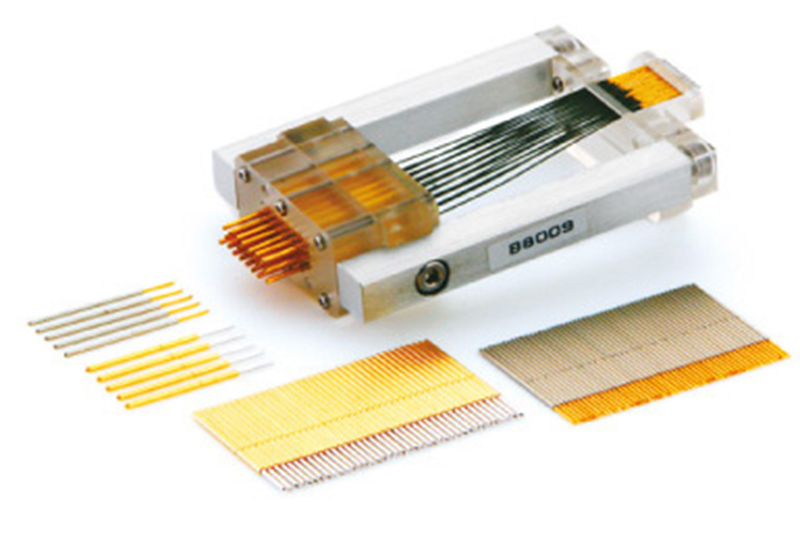

“SUPICAL”is the generic name of Turn Probes. When a probe is lightly pressed against to the print board, a plunger of the probe concurrently rotates by 90 degree at 2/3 stroke. The function of plunger-rotating provides an unerring contact comparing to the conventional straight probes. The retry rate of print board test is reduced, which can improve the reliability of the test. 5 types of “SUPICAL” are availabe by differences of pitch or materials. Receptacles matching to each type are also available. The products are conformable to the environmental laws and regulations. Please use with confidence.
Specification
Permissibe current
3A
2A (SDY1700C1)Turn angle
90° (2/3 Stroke)
45° (SDY1700C1)Shape
Triangle
Material / Surface treatment
Plunger
SKH or SK
Ni+Au platingSpring
SWP
Ni+Au platingBarrel
C7150 Nickel / Barrel
C5191 Phosphorus bronze / Ni+Au plating

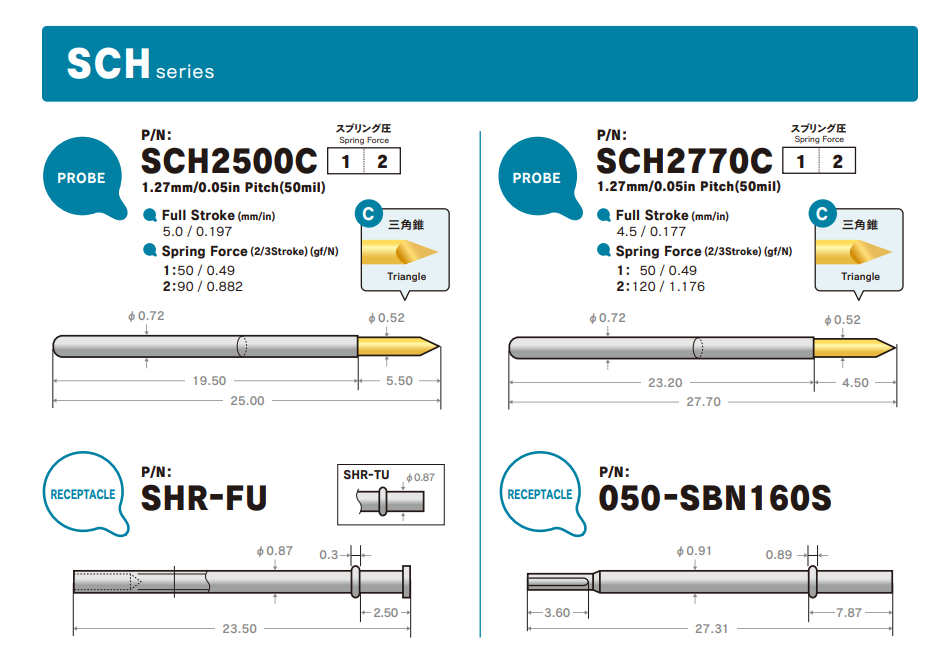

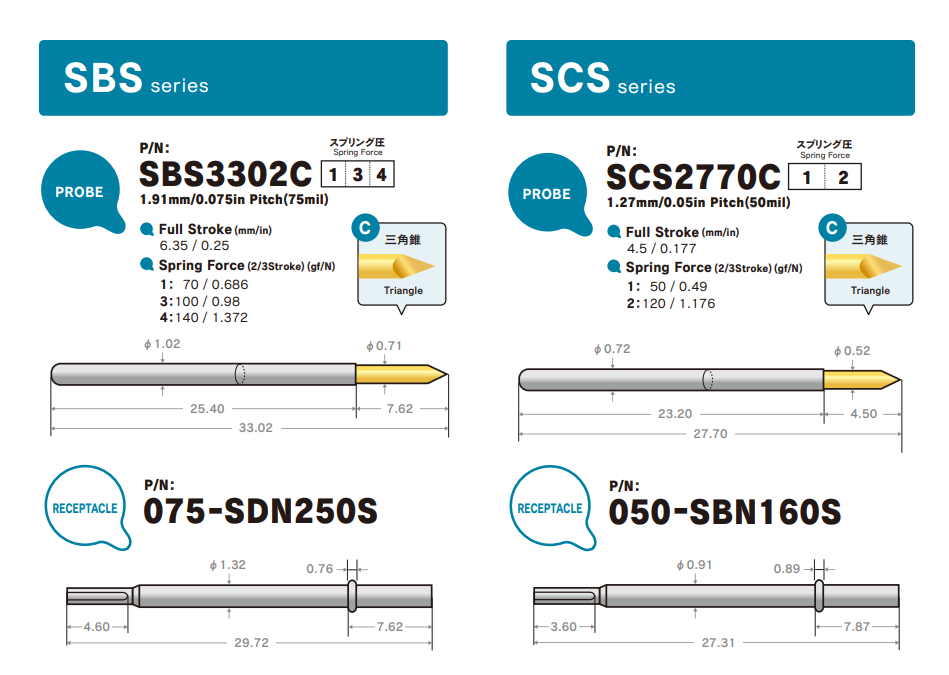

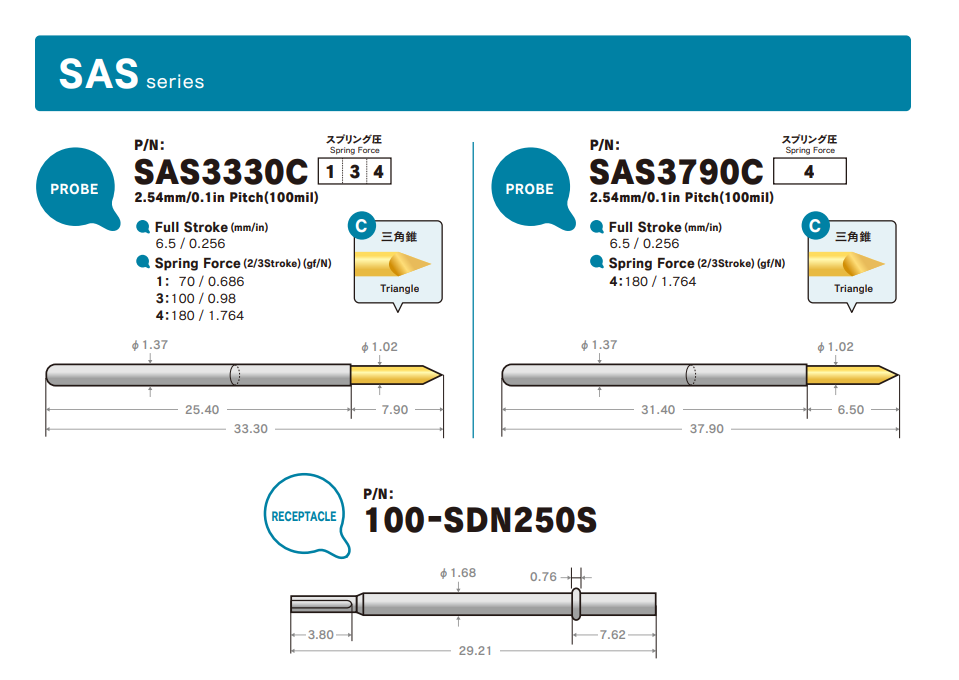

| Name of product | Spring pressure | Shape of tip | Outline(mm) | Material | Stroke | Total length(mm) | |
| Primary specific gravity | 2/3Stroke | ||||||
| SCH2500C1 | 20gf | 50gf | Triangle | φ0.72 | SKH | 5.00 | 25.00 |
| SCH2500C2 | 30gf | 90gf | Triangle | φ0.72 | SKH | 5.00 | 25.00 |
| SCH2770C1 | 20gf | 50gf | Triangle | φ0.72 | SKH | 4.50 | 27.70 |
| SCH2770C2 | 50gf | 120gf | Triangle | φ0.72 | SKH | 4.50 | 27.70 |
| SAS3330C1 | 30gf | 70gf | Triangle | φ1.37 | SK | 6.50 | 33.30 |
| SAS3330C3 | 35gf | 100gf | Triangle | φ1.37 | SK | 6.50 | 33.30 |
| SAS3330C4 | 30gf | 180gf | Triangle | φ1.37 | SK | 6.50 | 33.30 |
| SAS3790C4 | 60gf | 180gf | Triangle | φ1.37 | SK | 6.50 | 37.90 |
| SBS3302C1 | 20gf | 70gf | Triangle | φ1.02 | SK | 6.35 | 33.02 |
| SBS3302C3 | 40gf | 100gf | Triangle | φ1.02 | SK | 6.35 | 33.02 |
| SBS3302C4 | 10gf | 140gf | Triangle | φ1.02 | SK | 6.35 | 33.02 |
| SCS2770C1 | 20gf | 50gf | Triangle | φ0.72 | SK | 4.50 | 27.70 |
| SCS2770C2 | 50gf | 120gf | Triangle | φ0.72 | SK | 4.50 | 27.70 |
| SDY1700C1 | (17gf) | 40gf | Triangle | φ0.48 | SK | 2.00 | 17.00 |
