Twilight Switch with Lux & Time Adjustment

Production Lead Time:

45 day(s)

Model No.:

CDS-24K

Colour:

Grey

Port:

Hong Kong

Type of Payment:

T/T before shipment

Minimum Order Quantity:

1,000 piece(s)

Description

Contact Supplier

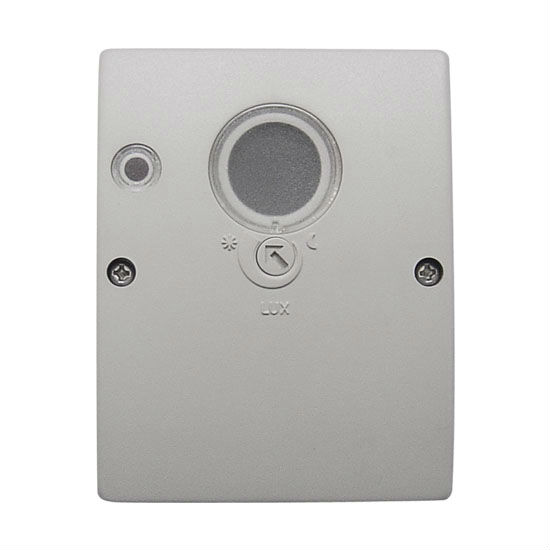

It is a daylight/photocell sensor for lighting automation control, ideally for outdoor use.
Rated voltage: 220-240VAC 50Hz
Load: Max. 10A (cosΦ=1)
Incandescent lamp: 2000W max.
Halogen lamp: 1000W max.
Fluorescent lamp: 500VA max. (uncompensated)
LED lamp: 200W max.
Lux: adjustable from about 5Lux to ∞
Time: adjustable from 1 to 8 hours or“ Dusk to dawn“
Switch ON/OFF delay: approx. 60 sec.
Switch status indication: Red LED
Operating temperature: -25℃ to + 45℃
Environmental protection: IP44/Class II
Safety approval: CE
Dimensions: 95mm (L) x 74mm (W) x 50mm (H)
