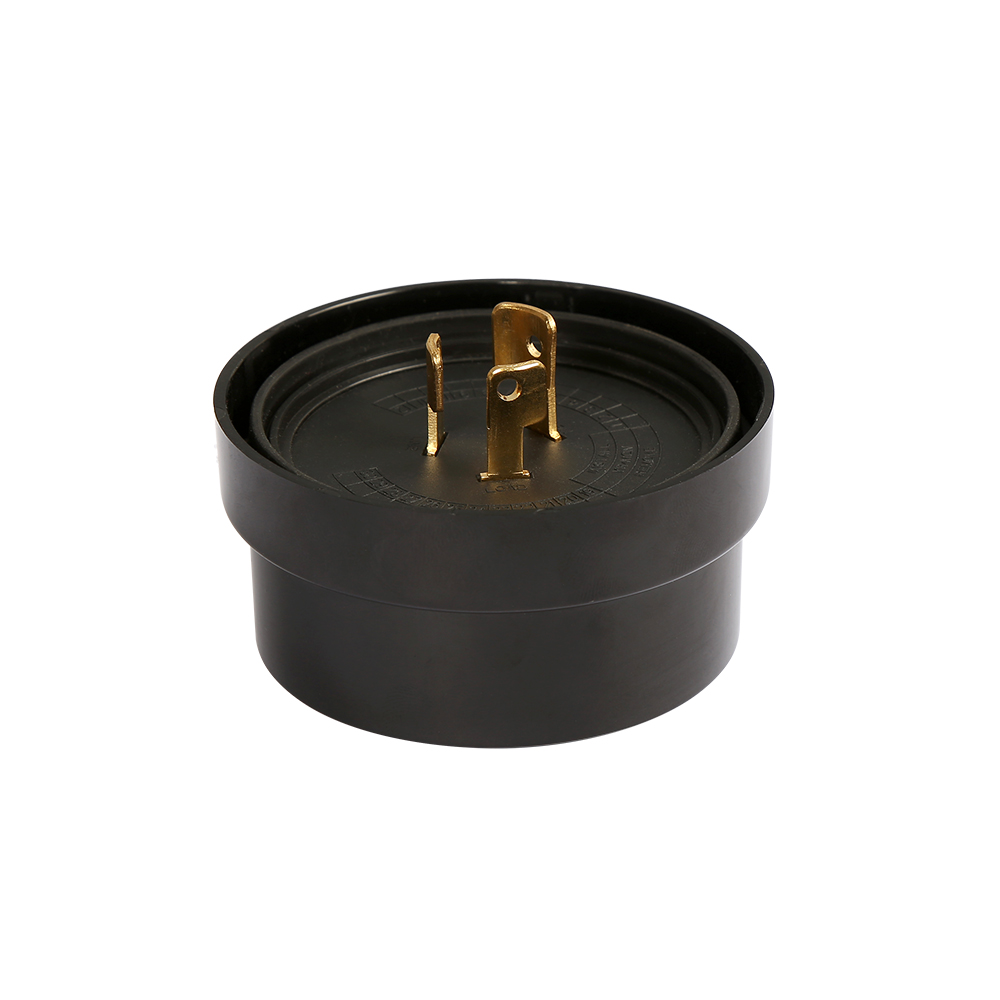

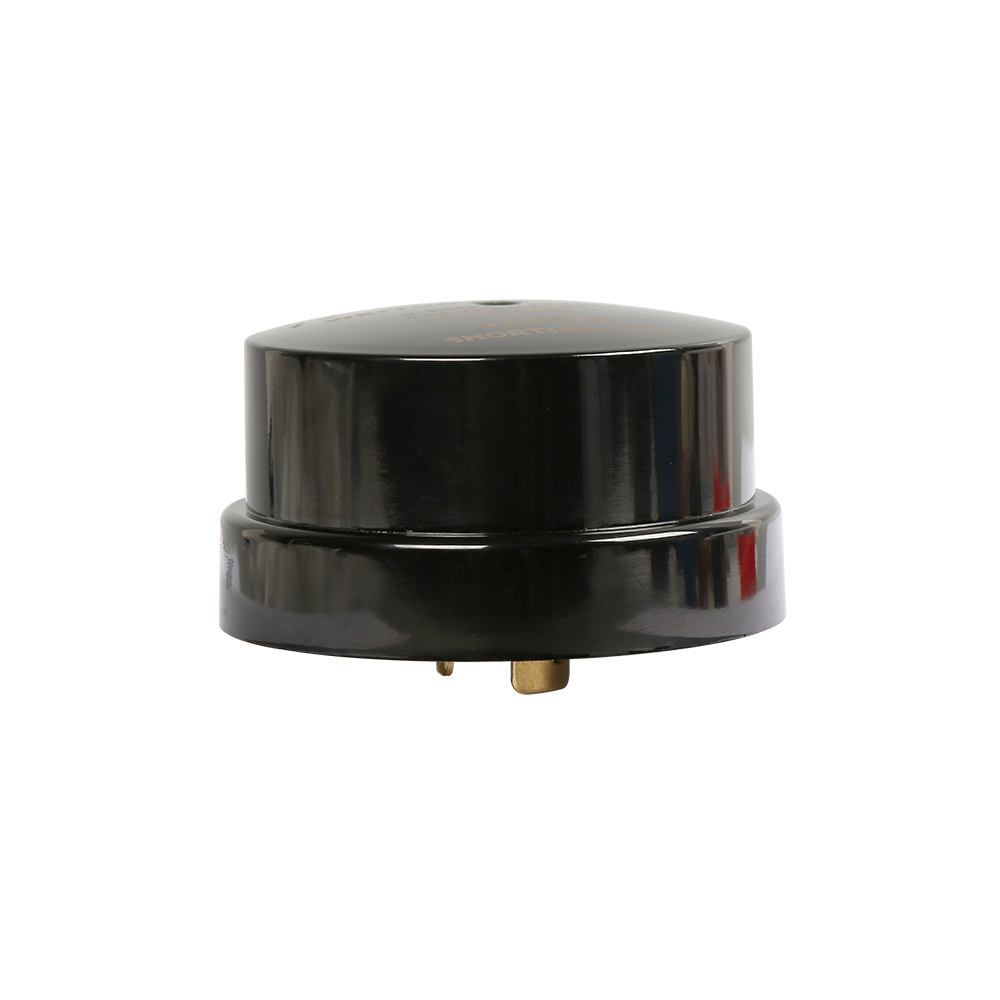

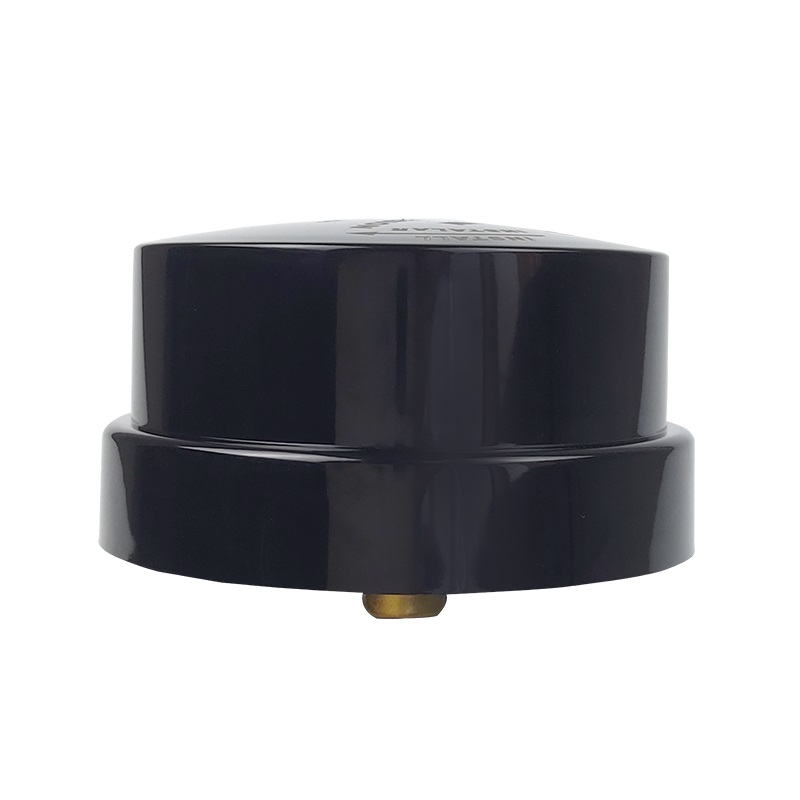

Twist-Lock Open Circuit Cap
US $0.80 - US $2.30
Production Lead Time:
3-10 day(s)
Shipping Method:
By sea ,air,Express
Application:
street light, outdoor light
Brand:
OPTIMUM
Model No.:
OPT6SC
Description
Contact Supplier
Description
- The shorting cap keeps lights ON at all times unless turned off from a remote location.
- Protective Covers used on lighting fixtures with Locking-type receptacles when it is not desired to have lighting controlled by photocontrol.
- Conforms to ANSI136.10mounting standard.
- The shorting cap provide a convenient and economical method to close or open the primary circuit with a NEMA locking type receptacle
Specification :
Model | OPT6SC |
Standard | ANSI C136.10 & UL773 |
Certificate | CE CB |
Rated Voltage | 0-48V |
Rated Load | 15A |
Ambient Temperature | -40℃ -70℃ |
Cover | Anti-UV Impact Resistance Polycarbonate (PC) |
Base | High Temperature Resistance Polybutylene Terephthalate (PBT) |
Ingress Protection | IP65 (Optional IP66/IP67) |
