Two Way Radio
Production Lead Time:
3 day(s)
Model No.:
N81
Brand:
TeLT
Colour:
Black
Size:
115×54×33mm
Port:
Xiamen, Shenzhen, Guangzhou
Type of Payment:
L/C,T/T,Western Union,PayPal
Minimum Order Quantity:
1 piece(s)
Description
Contact Supplier
Description

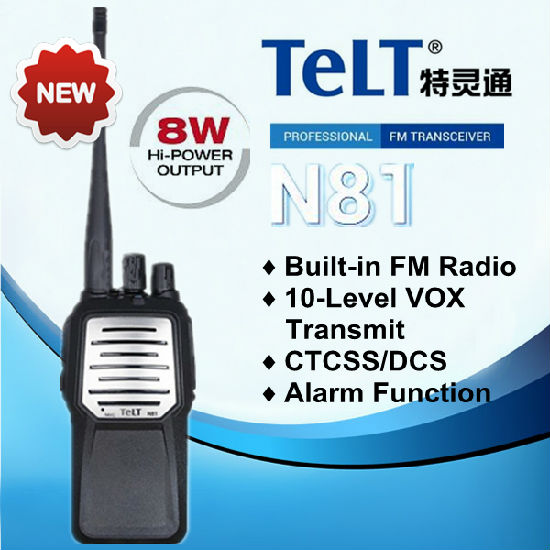

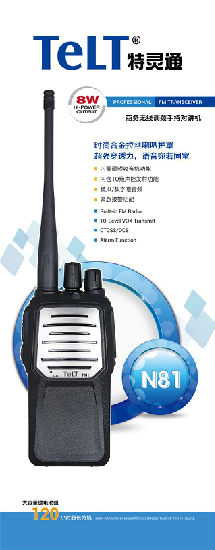

Displayed here is a two way radio.
General:
General:
- Frequency Range: VHF 137-174MHz;UHF 350-390MHz 400-470MHz.
- Channel No.: 16 channels.
- Channel Step: 5KHz / 6.25KHz.
- Frequency Stability: 2.5ppm.
- Operating Temperature: -20℃ to +55℃.
- Working Voltage: 7.4V DC.
- Dimension(H×L×W): 115×54×33mm.
- Weight: 220g.
- Distances: 3-25km.
- Transmitter:
- Output Power: 5W / 8W.
- Max.Freq.Deviation: ＜±5KHz.
- Antenna Impedance: 50Ω.
- Transmitting Current: ≤ 1300 mA.
- Modulation Distortion: < 5% （300KHz–3KHz）.
- Modulated Mode: FM(F3E).
- Residual wave Radiation: ≤-65dB.
- Receiver:
- Sensitivity: 0.20μV (12dB SINAD ).
- First IF of Receiver: 38.850MHz.
- Second IF of Receiver: 450KHz.
- Squelch Sensitivity: 0.16μV.
- Audio Power Output: ≤ 1W.
- Standby: 20mA.
- Features:
- Built in FM radio.
- 10 level VOC transmit.
- CTCSS/DCS.
- Alarm function.
- Long-lasting battery.
