Two-way UAV Wireless Video Data RC Control Link module long-range bidirectional transceiver Transmitter-Receiver Vcan1681
US $630.00 - US $3510.00
US $700.00 - US $3900.00
Production Lead Time:
10 day(s)
Shipping Method:
DHL UPS FedEx
Brand:
iVcan
Model No.:
Vcan1681
Transmission Distance:
7~150km according to the PA
Customised:
Yes
Size:
58x64mm
Weight:
32 gram
Description
Contact Supplier
Description

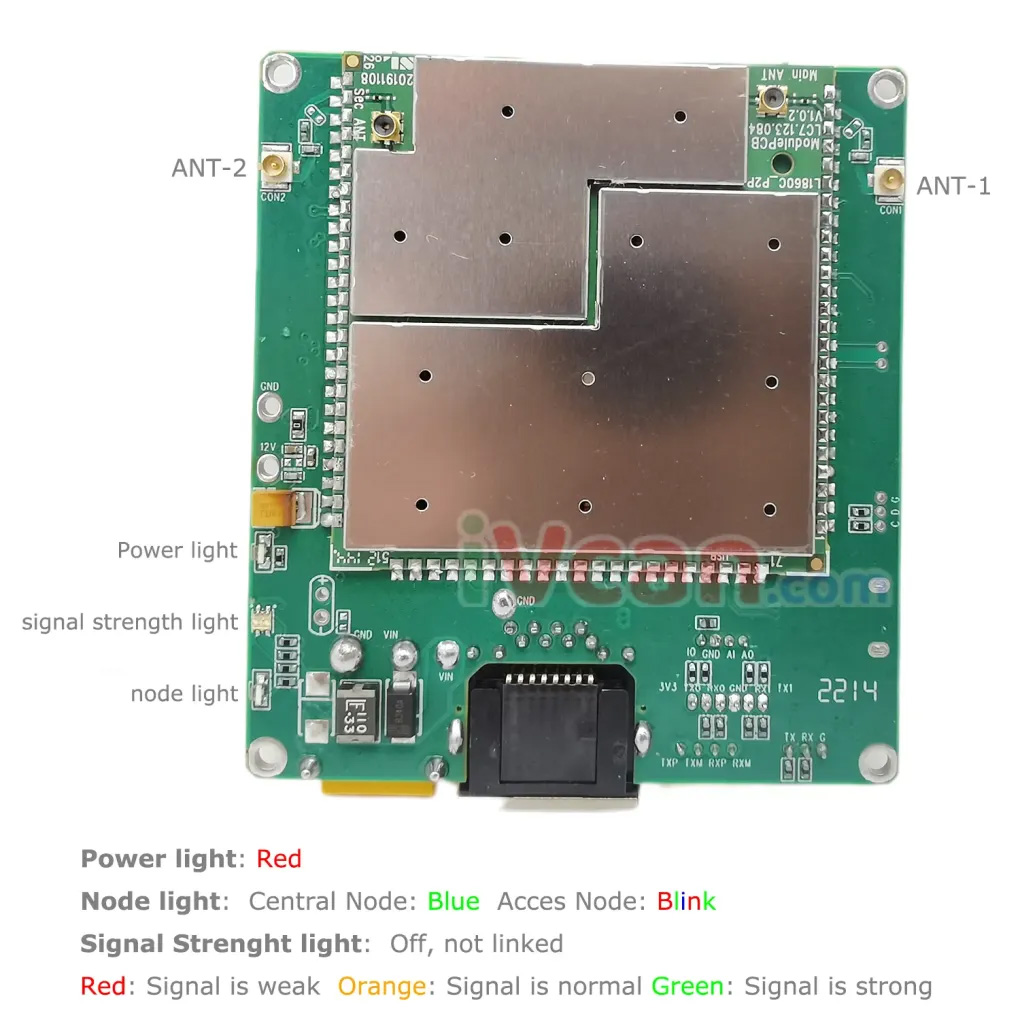

Two-way wireless transmission digital data video link module DLB
Feature
- TDD OFDM two-way wireless video data RC control link module board
- Band 800Mhz / 1.4G / 2.4G: 806~826HMz, 1428~1448MHz, 2402~2482MHz
- Support FHSS FHSS Frequency-hopping spread spectrum automatic frequency hopping
- Bandwidth: 3MHz, 5MHz, 10MHz, 20MHz, selectable
- Max 30Mbps@20MHz bandwidth
- RF transmission power: 25±2 dBm
- Constellation: QPSK, 16QAM, 64QAM, self-adaption
- Sensitivity: -106dBm(2.4GHz 1Mbps), -108dBm(1.4GHz 1Mbps), -108dBm(800MHz 1Mbps)
- Supports transparent IP Data transmission(2 IP network ports)
- Supports serial data transmission(3 X RS232 UART or TTL)
- Supports audio input and output with codec on board
- Without installing an external Power Amplifier, Support upto 17km LOS (UAV-to-ground) and 2km LOS (ground-to-ground)
- Web UI or serial uart for management
- AES128 encryption and decryption
- Uplink and downlink stream control
- Networking type communication: point-to-point, one point-to-many points, many points-to-one point, IP mesh networking (optional)
- Power consumption: <4.5W
- Dimensions: 58*64*13mm
- Weight:32g
- Working Temp. -20℃ ~ +65℃
- Storage Temp. -40℃ ~ +80℃
- Dual antenna transmit and receive, MIMO mode of operation
- Modulation method: QPSK/QAM16/QAM64 automatic adaptation
- Maximum transmission power: 25±2dBm
- Support wireless link encryption and decryption
- Up to 16 access nodes can be connected to one central node.
Sensitivity
| Frequency Band | 2.4GHz(1Mbps) | 1.4GHz(1Mbps) | 800MHz(1mbps) |
| 20Mhz Bandwidth | -99dBm | / | / |
| 10Mhz Bandwidth | -102dBm | -103dBm | -103dBm |
| 5Mhz Bandwidth | -104dBm | -106dBm | -106dBm |
| 3Mhz Bandwidth | -106dBm | -108dBm | -108dBm |
