UGR<19 M LED Panel Series

US $10.00 - US $40.00

Production Lead Time:

30 day(s)

Shipping Method:

by sea

Model No.:

DWUGR606036M

Input Voltage:

AC200-240V, 50/60HZ

Power:

36W

LED Source:

SMD4014

Color Temp:

3000K/4000K/5700K

CRI:

Ra>80

Power Factor:

>0.9

IP Rate:

IP40

Optional:

0-10V dimming, Dali dimming, or Traic dimming

MOQ:

300PCS

Certificate:

CE, RoHS, CB,SAA

Warranty Time:

5 Years

Payment Terms:

T/T

Supply Ability:

7000pcs per month

Description

Contact Supplier

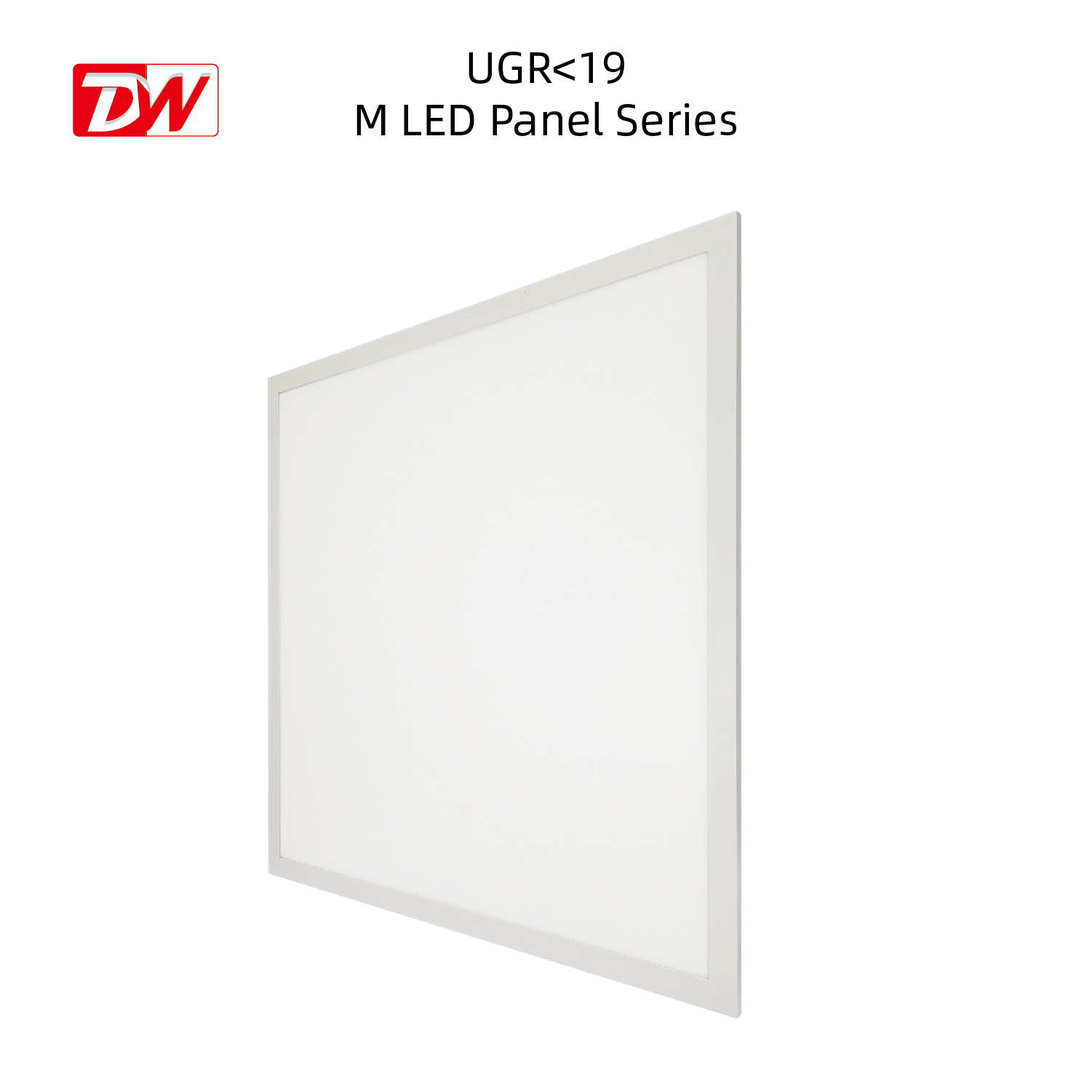

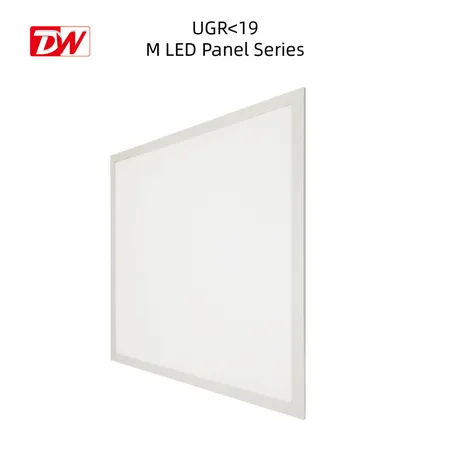

UGR<19 M LED Panel Series

Thanks for choosing UGR<19 M Series Panel Series light provide a soft, bright luminance that is gentle on the eyes and ideal for both domestic and commercial environments. Thanks to the use of an edge-lighting design, the output is uniform across the panel without any dark or weak spots, and the super-low profile provides a nice clean ceiling line.

◈ FEATURES

UGR<19, special used in school, ofﬁce;

Best price and quality balance panels;

PS LGP;

High efﬁciency:100lm/W, 120lm/W;

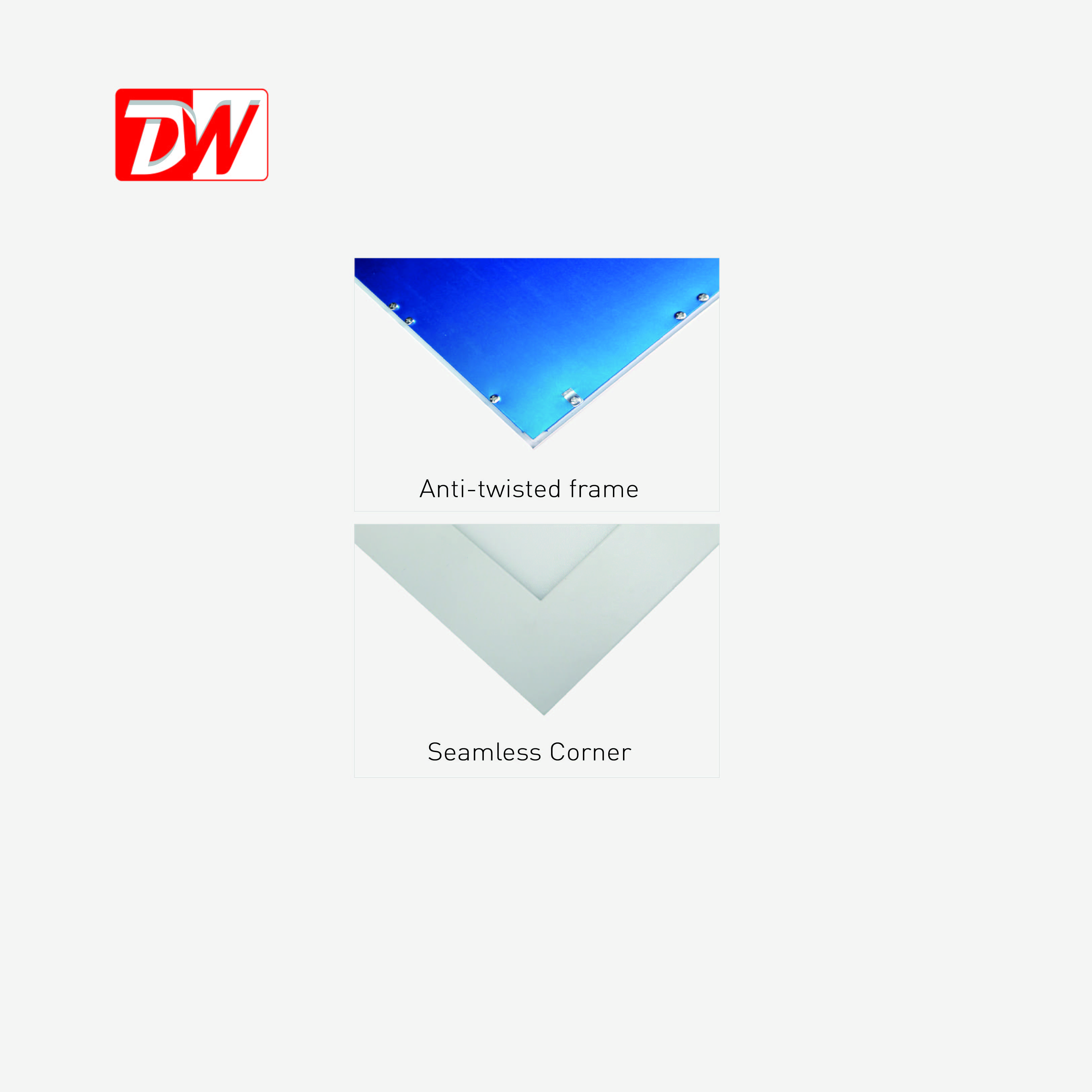

Anti-twisted frame with seamless corner;

Uniform light distribution;

◈ ADVANTAGE

TUV Listed CE, CB, and RoHS, SAA,ISO9001;

Best price and quality balance panels；

Anti-twisted frame with seamless corner;

Uniform light distribution;

3 years warranty time .

◈ SPECIFICATION

M Series LED Panel Light
Photometric Parameters
NO.	Project	Parameter
1	LED	High luminous ﬂux SMD LED Samsung/Osram
2	Luminous Efﬁciency	100 Lm/W ,120lm/W
3	CCT	3000K-5700K (warm white, natural white, cool white)
4	CRI	≥80
5	Beam Angle	120°
6	UGR	UGR<19
7	LED Lifespan	≥50000 Hours
Electrical Parameters
8	driver input voltage	AC220-240V /50-60Hz
9	OutputVoltage	DC30-40V
10	Power Supply Efﬁciency	≥88%
11	Power Factor	≥0.9
12	Protection Class	Class II
General Parameters
13	Rating IP	IP40
14	Material	Aluminum + PMMA
15	Frame Finishing	White

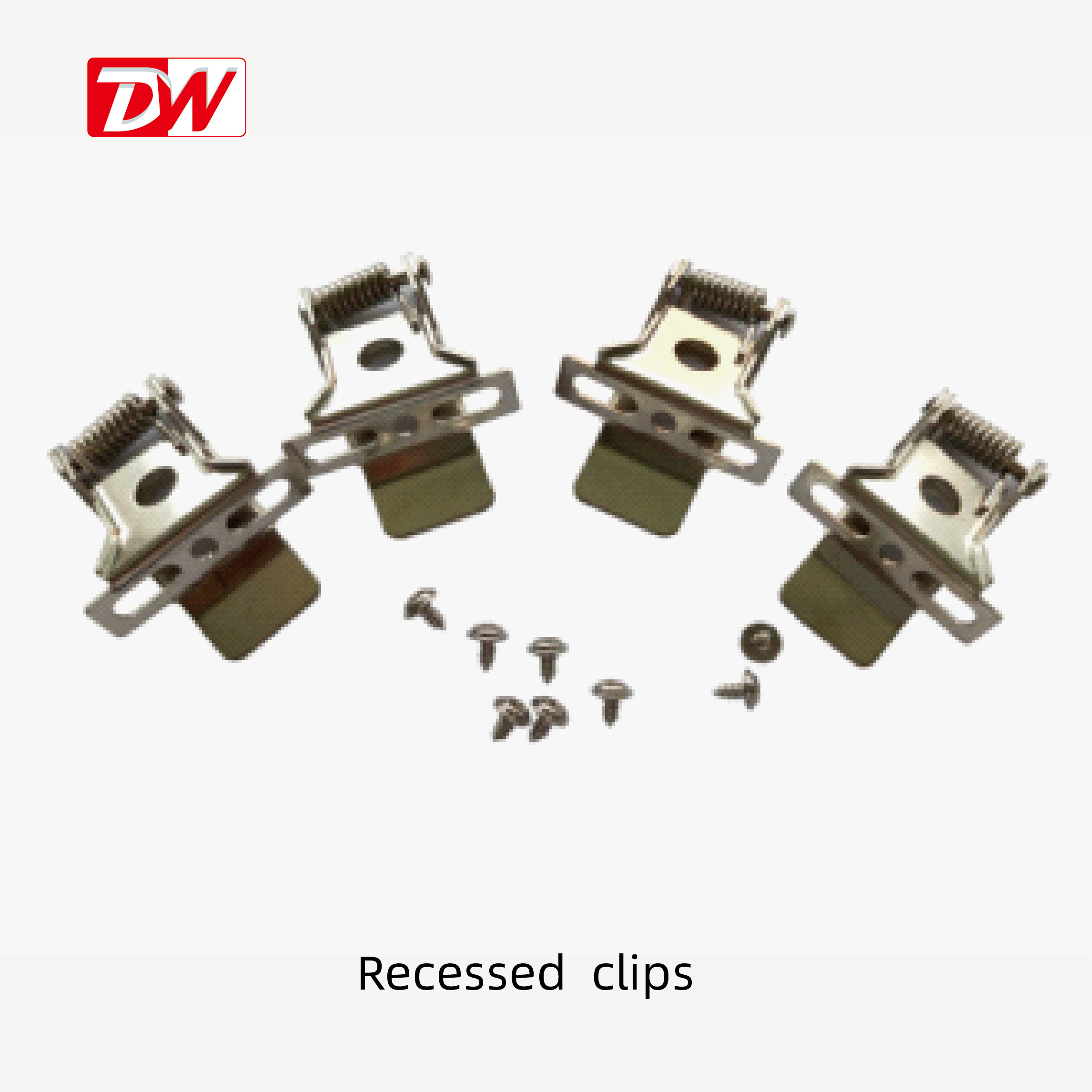

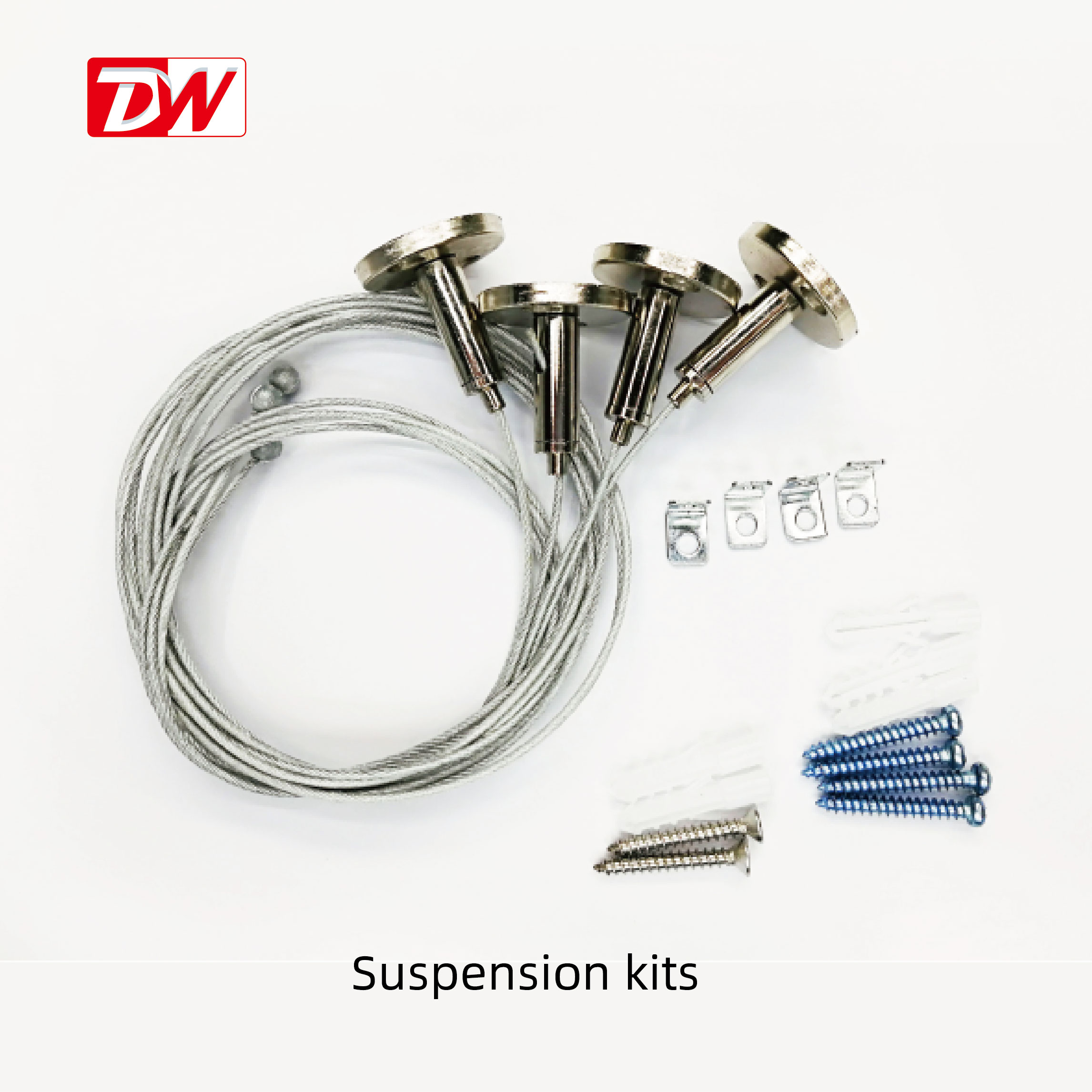

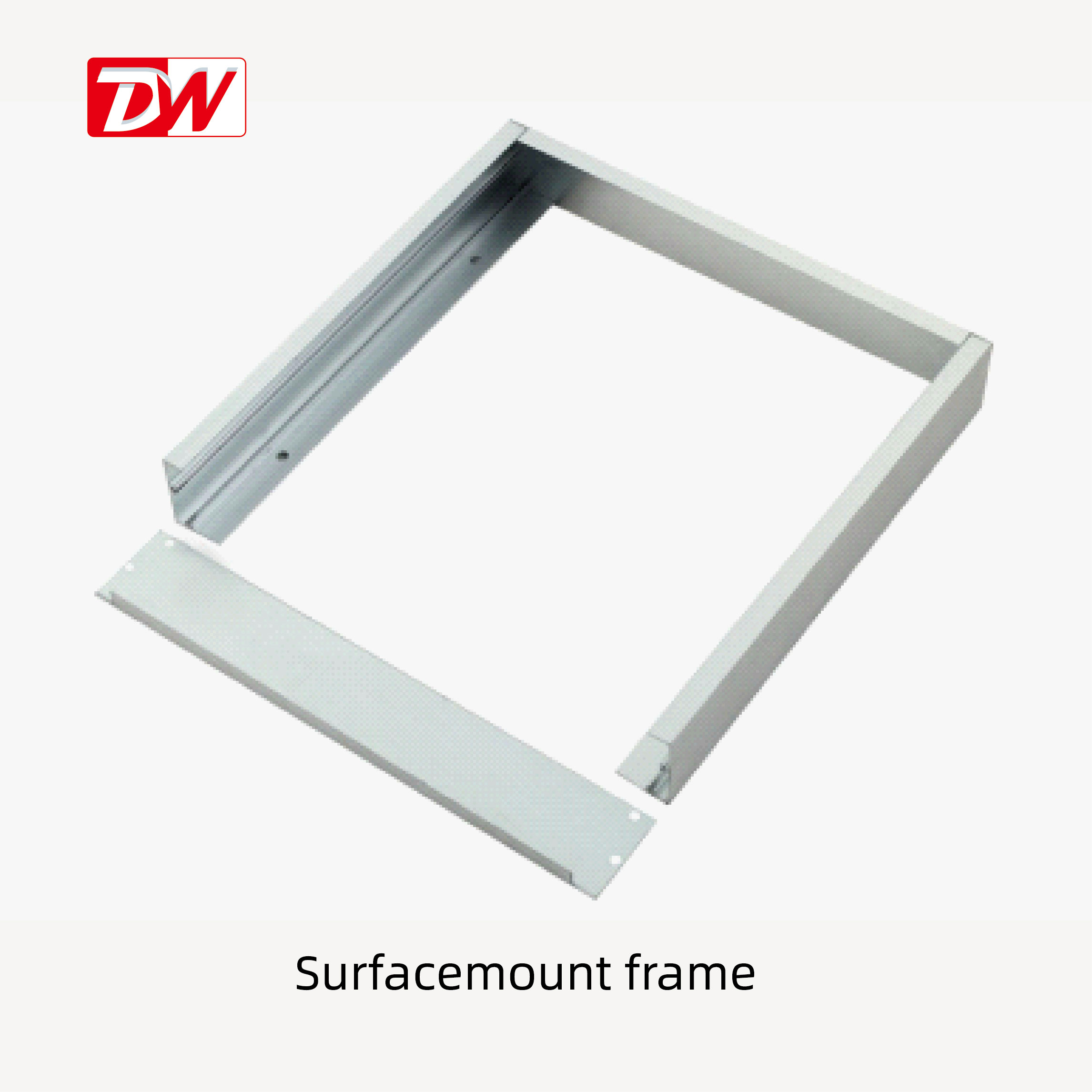

16	Installation	Recessed/Pendant
17	Working Temperature	-20～+45℃
18	Storing Temperature	-40～+60℃
19	Working Humidity	15%~90%RH

◈ SIZE

Efficiency	Model No.	Wattage	Luminous Flux	CRI	UGR	Dimension
100lm/W	DWUGRP606036M	36W	3600lm	80Ra	<19	595x595x10.5mm
	DWUGRP3012036M	36W	3600lm	80Ra	<19	295x1195x10.5mm
	DWUGRP626236M	36W	3600lm	80Ra	<19	620x620x10.5mm
