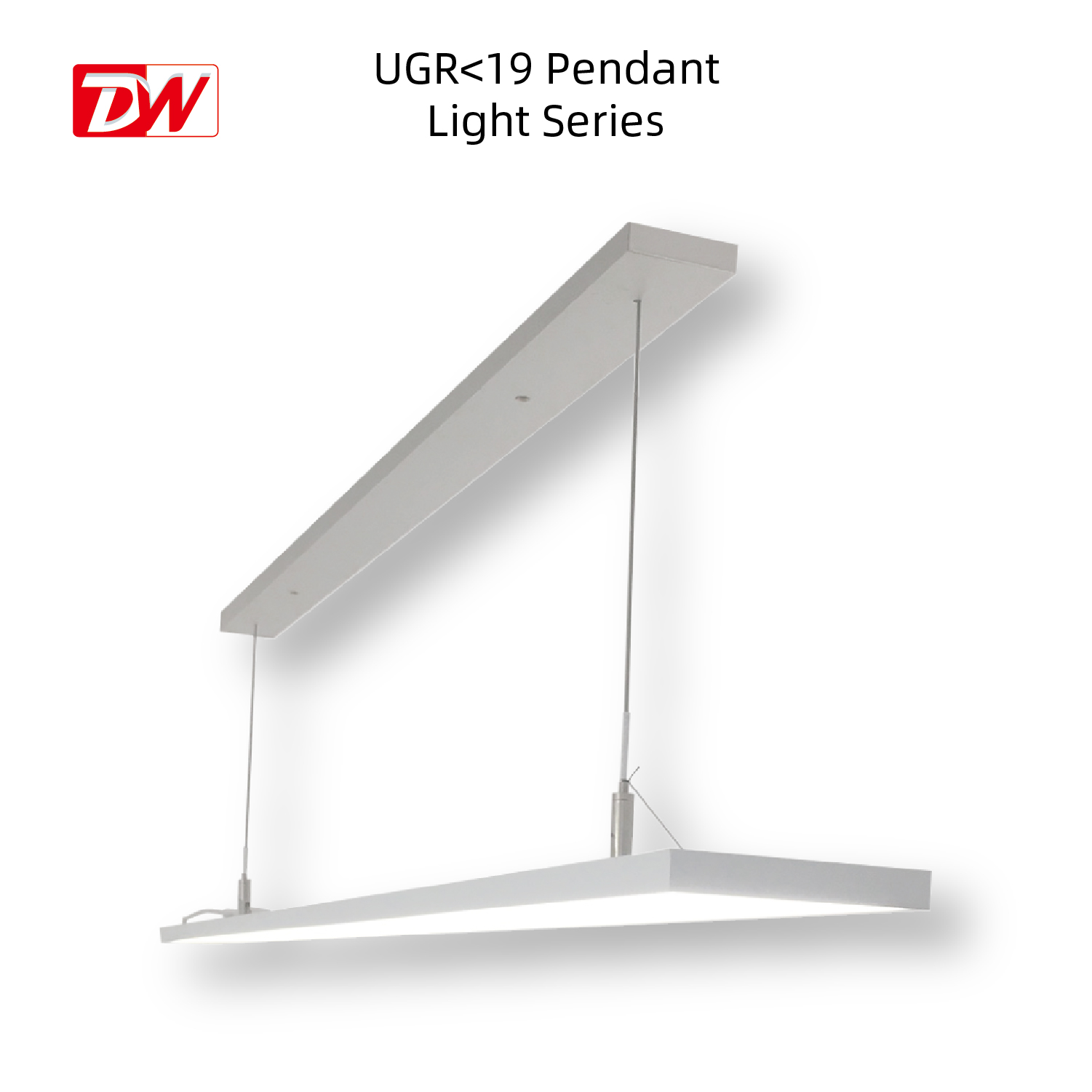

UGR<19 Pendant Light Series

UGR<19 Pendant Light Series provide a soft, bright luminance that is gentle on the eyes and ideal for both domestic and commercial environments. Thanks to the use of an edge-lighting design, the output is uniform across the panel without any dark or weak spots, and the super-low profile provides a nice clean ceiling line.

◈  FEATURES

Simple design, special used in the office and library;

Soft light output, UGR<19;

Driver built in the ceiling box;

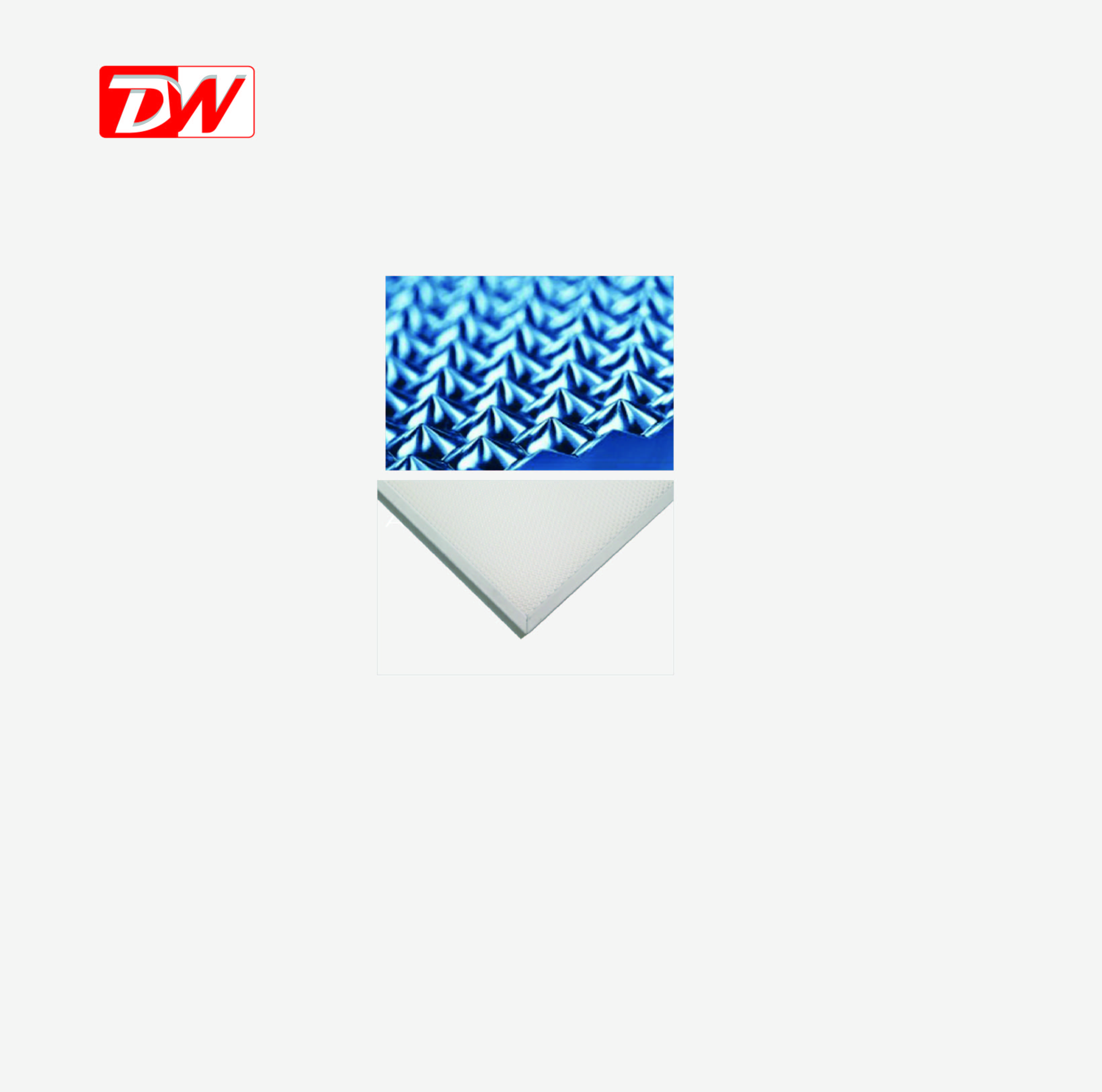

PMMA LGP, anti yellowing;

◈  ADVANTAGE

•


• TUV Listed CE, CB, and RoHS, SAA,ISO9001;

• Simple design,special used in the office and library;

• Soft light output, UGR<19;

• Driver built in the ceiling box;

• PMMA LGP, anti yellowing.

•


• ◈  SPECIFICATION




  UGR<19 Pendant Panel Light
  Photometric Parameters
  NO.	Project	Parameter
  1	Size	145*1195*14mm;
  2	LED	High luminous flux SMD LED Samsung/Osram
  3	Luminous Efficiency	100 lm/W
  4	CCT	3000K-5700K (warm white, natural white, cool white)
  5	CRI	≥80
  6	Beam Angle	120°
  7	LED Lifespan	≥50000 Hours
  Electrical Parameters
  8	Driver Input Voltage	AC220-240V /50-60Hz
  9	OutputVoltage	DC30-40V
  10	Power Supply Efficiency	≥88%
  11	Power Factor	≥0.9
  12	Protection Class	Class II
  General Parameters
  13	Rating IP	IP40
  14	Material	Aluminum + PMMA
  15	Frame Finishing	White
  16	Installation	Recessed/Pendant
  17	Working Temperature	-20～+45℃
  18	Storing Temperature	-40～+60℃
  19	Working Humidity	15%~90%RH

  ◈  SIZE

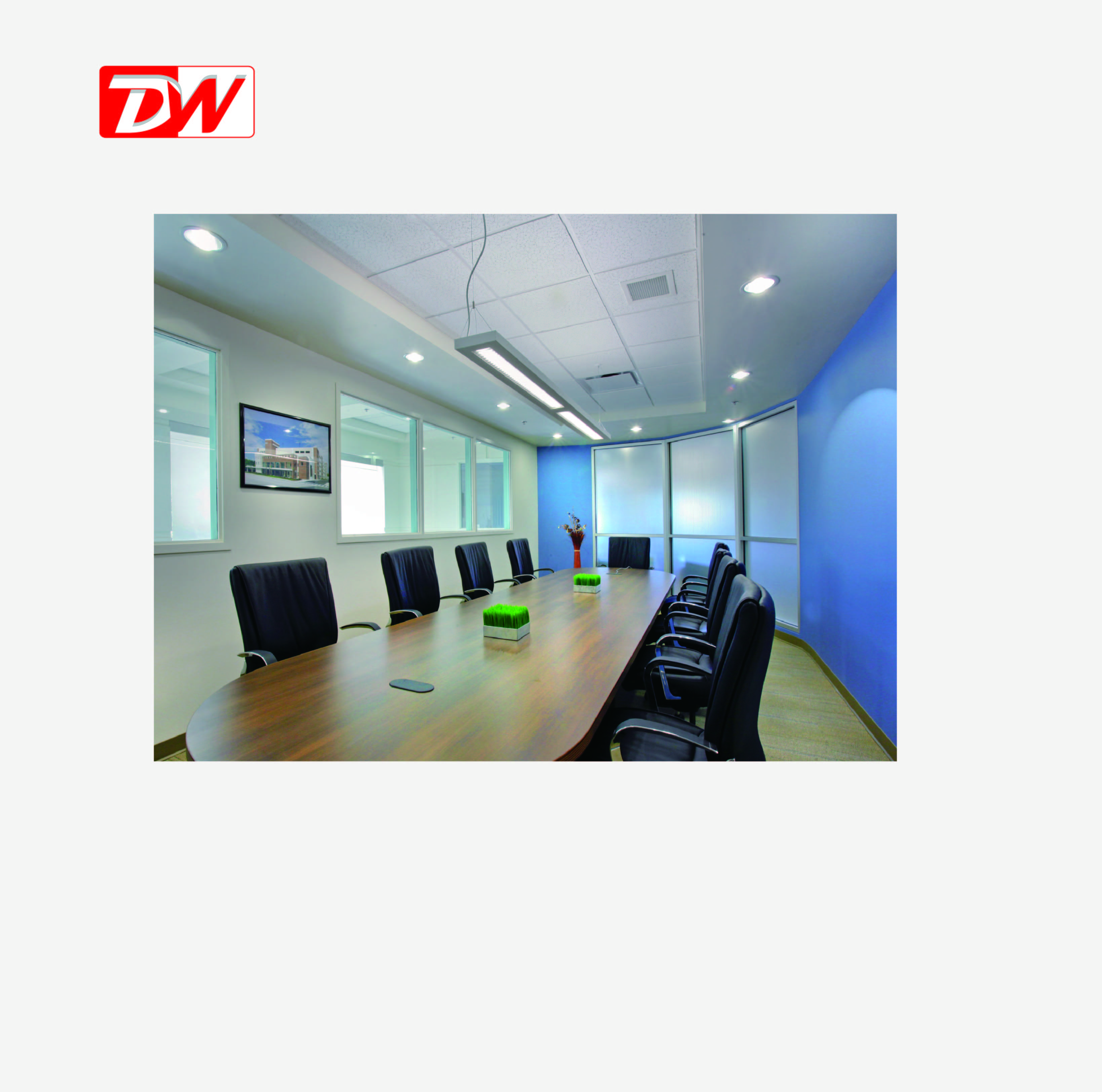

◈  APPLICATION

♦ Showrooms

♦ Boardrooms, offices, corridors

♦ Retail outlets

♦ Hospitals

♦ Hotels, motels
