UGR<19 Pro Panel Series
US $10.00 - US $40.00
Production Lead Time:
30 day(s)
Shipping Method:
BY SEA
Model No.:
UGR<19 Pro Panel Series
Input Voltage:
AC200-240V, 50/60HZ
Power:
36W
LED Source:
SMD2835
Color Temp:
3000K/4000K/5700K
CRI:
Ra>80
Power Factor:
>0.9
IP Rate:
IP40
Optional:
0-10V dimming, Dali dimming, or Traic dimming
MOQ:
300PCS
Certificate:
CE, RoHS, CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
Description
Contact Supplier
Description

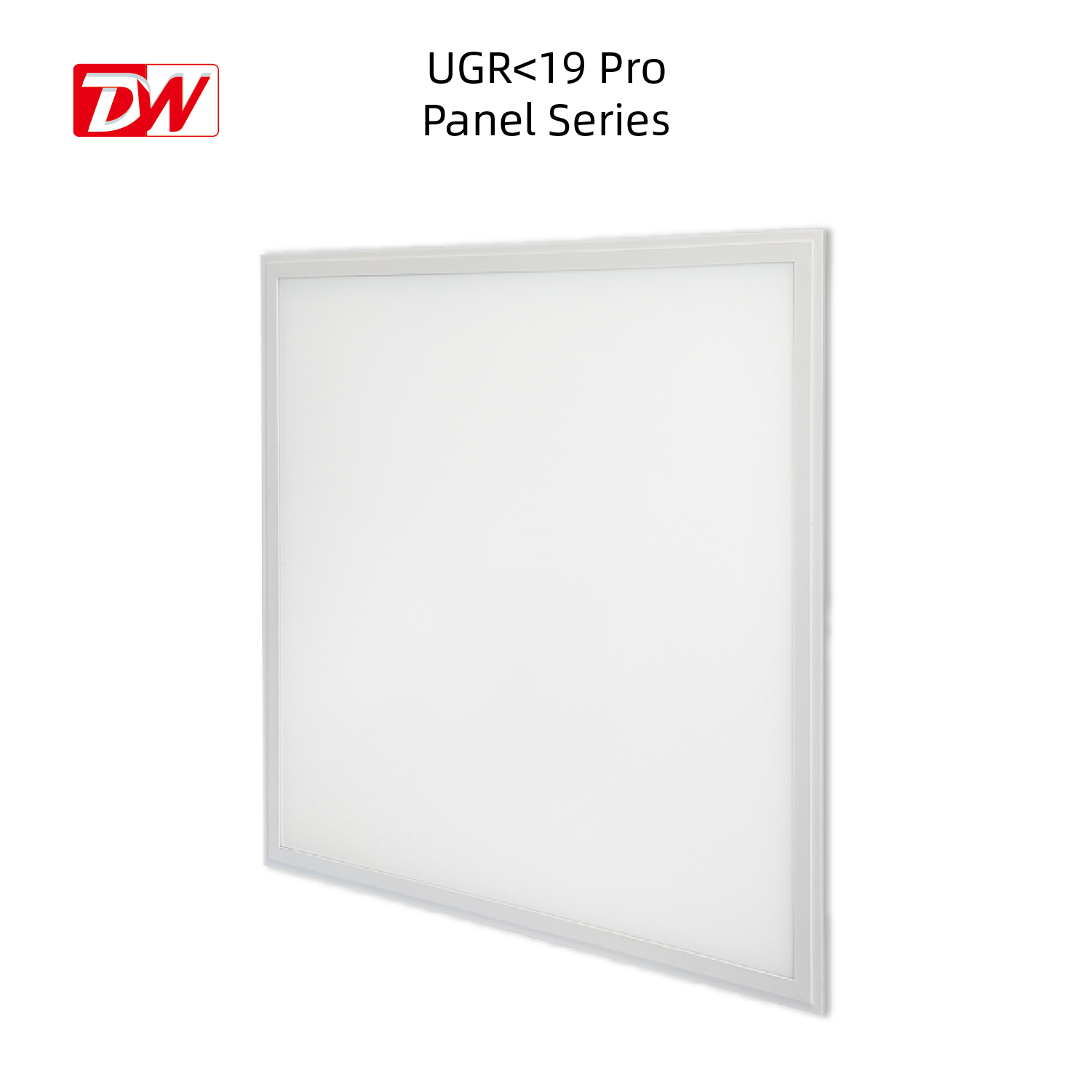

UGR<19 Pro Panel Series
Thanks for choosing UGR<19 100lm/W Pro Panel Series. Our Slim LED Panel is designed to replace conventional Grid Panel Light with fluorescent tube fifixtures. This light combines innovative optical and mechanical design features to achieve a soft and uniform light distribution.
◈ FEATURES
• UGR<19, Special used in school, office.
• Designed for professional markel;
• PMMA LGP, no worry no yellowing,
• High efficiency,120lm/W, 100lm/W;

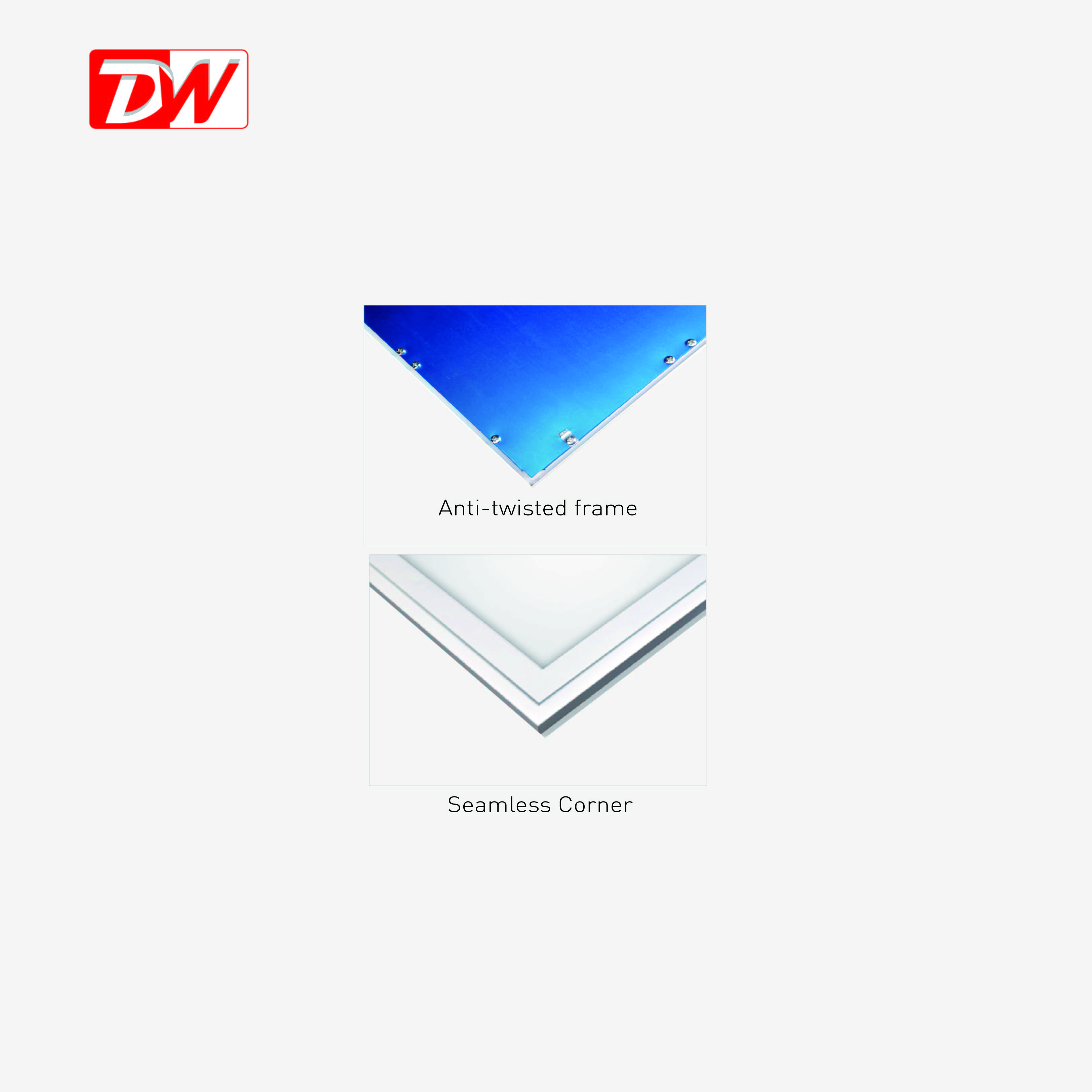

• Anti-twisted frame with seamless corner,
• Uniform light distribution to offer real pure and clean light to end users;
• RA90 and one binning samsung,LED optional.
◈ ADVANTAGE
TUV Listed CE, CB, and RoHS, SAA,ISO9001;
Designed for professional market;
PMMA LGP, no worry on yellowing;
Uniform light distribution to offer pure and clean light to end users;
RA90 and one binning samsung LED optional.
◈ SPECIFICATION
Pro LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100Lm/W |
3 | CCT | 3000K-5700K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 90° |
6 | UGR | <19 |
7 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
8 | driver input voltage | AC220-240V /50-60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
General Parameters | ||
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Recessed/Pendant |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |
◈ SIZE
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
120lm/W | DWP606036B | 36W | 4320lm | 80Ra | SMD2835 | 595x595x10.5mm |
DWP626236B | 36W | 4320lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012036B | 36W | 4320lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
100lm/W | DWP606036 | 36W | 3600lm | 80Ra | SMD2835 | 595x595x10.5mm |
DWP626236 | 36W | 3600lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012036 | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
DWP60603648 | 48W | 4800lm | 80Ra | SMD2835 | 595x595x10.5mm | |
DWP62623648 | 48W | 4800lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012048 | 48W | 4800lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
DWP6012060 | 60W | 6000lm | 80Ra | SMD2835 | 595x1195x12mm |

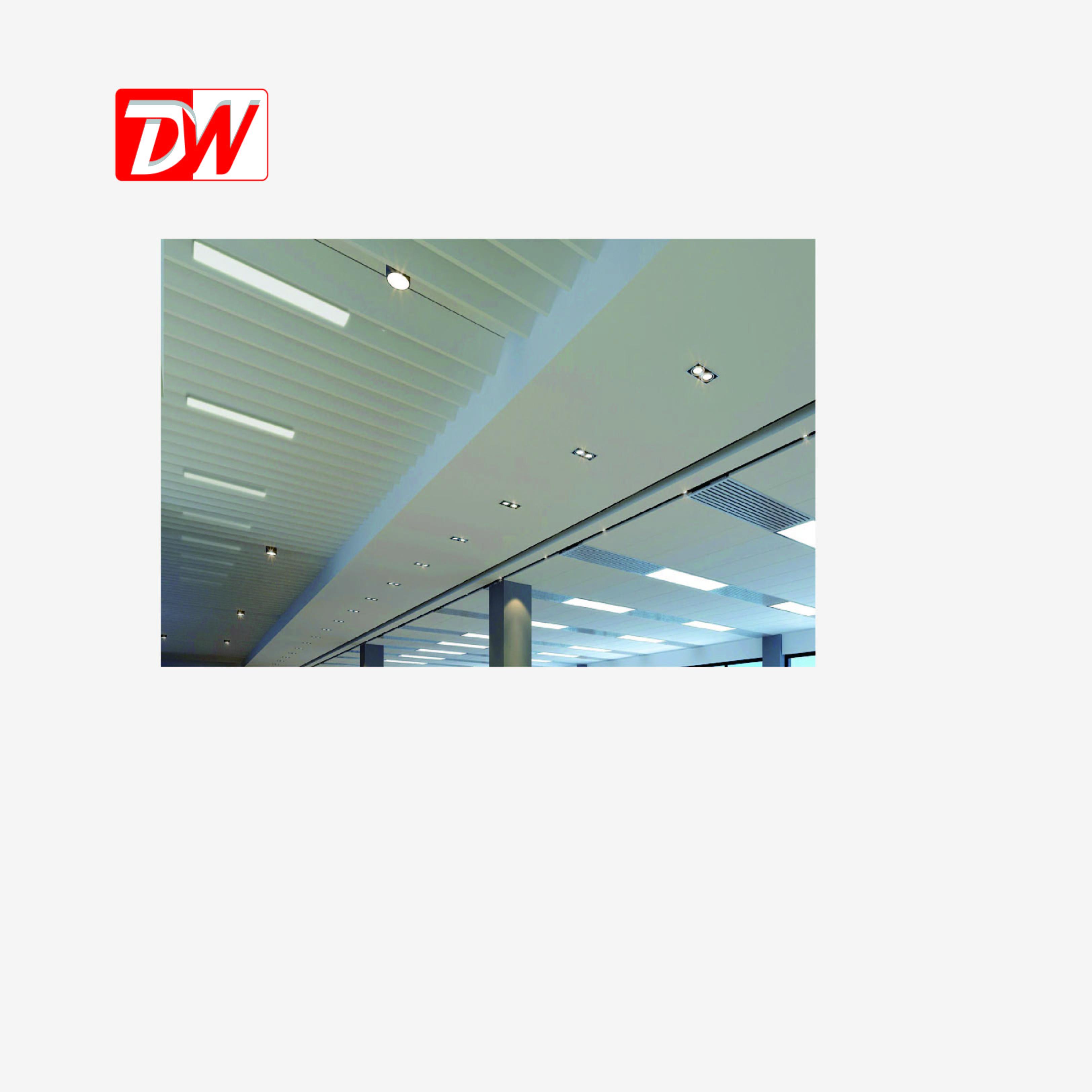

◈ APPLICATION
♦ Commercial office
♦ Retail/Shopping Mail Hotels
♦ Conference&Meeting Rooms
♦ Hotels&Supermarkeets
