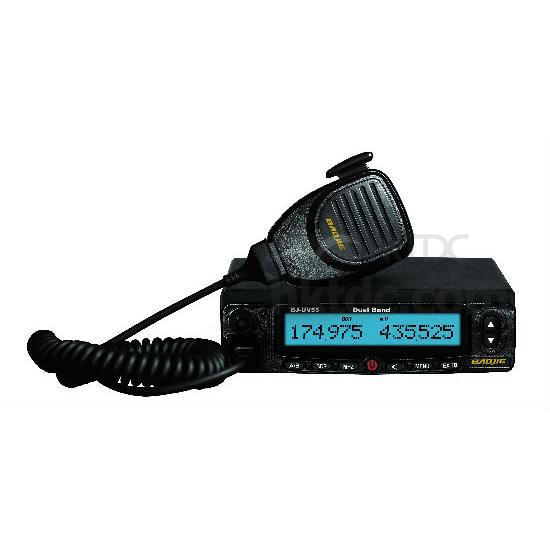

UHF VHF Dualband Mobile Radio BJ-UV55 CE&FCC Certified
Share this page
Model No.:
BJ-UV55
Brand:
Baojie
Colour:
Black
Size:
160 x 43 x 137mm
Type of Payment:
Paypal, Western Union, T/T
Minimum Order Quantity:
1
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
   TRANSMITER
  • RF output powerVHF 45W/UHF 35W
  • Spurious and harmonics70dB
  • ModulationWide: 16K0F3E    Narrow: 11K0F3E
  • FM Modulation NoiseWide: 45dB     Narrow: 40dB
  • Audio distortionLess than 3%
  • Frequency Stability± 2.5ppm

    Receiver
  1. Sensitivity(12dB SINAD)Wide: 0.18uV    Narrow: 0.22 uV
  2. SelectivityWide: 70 dB Narrow: 60dB
  3. Inter-modulationWide: 70 dB Narrow: 60dB
  4. Spurious response75dB
  5. Audio power output4.0W/8Ω
  6. Frequency Stability± 2.5ppm

    General
  1. Frequency range136-174MHZ    400-470MHZ
  2. Memory channels128
  3. BandwidthWide: 25kHz    Narrow 12.5kHz
  4. PLL channel stepping5, 6.25kHz
  5. Operating voltage13.8VDC± 15%
  6. Current drainStandby: Less than 0.4A   Receive: Less than 1.0A   Transmit: Less than 0.8A
  7. Operate temperature range– 30° C-+60° C
  8. Weight1200g
  9. Dimensions160*43*137mm

About us

   Quanzhou Baojie Electronics Co.,Ltd is a hi-tech enterprise professionalized on researching, producing and selling wireless handheld transceiver and the accessories. Since the establishment in 1994, the company has been dedicating to the wireless communication development and continuous production innovation.


    Based on our belief of “innovate continuously and strive for excellent quality”, we will develop more and better wireless handheld transceiver and satisfy the users and market demand. We sincerely welcome domestic and oversea customers to work with us and together we develop the wireless communication business.
